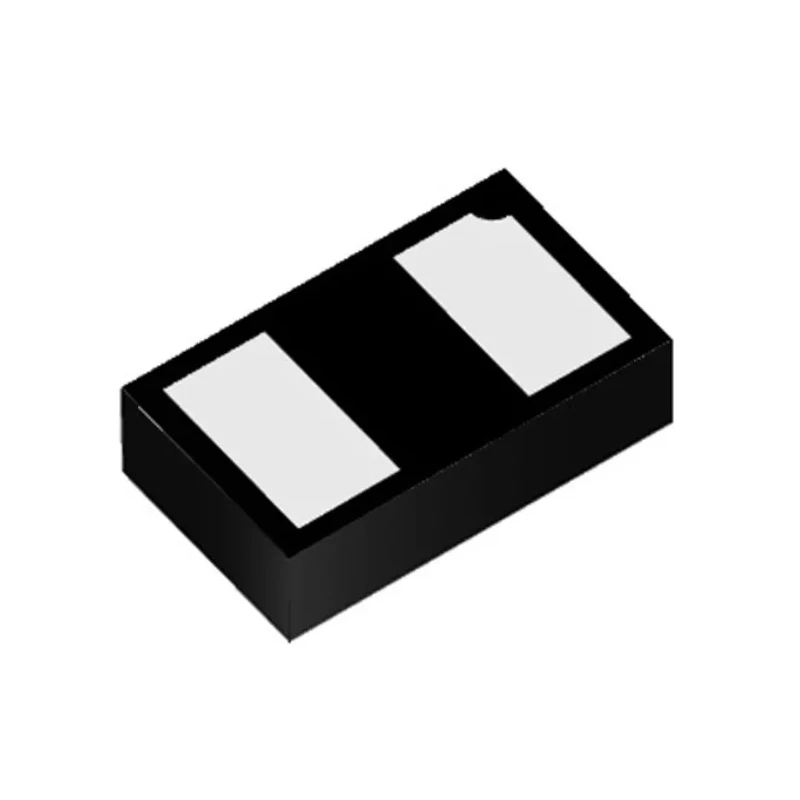

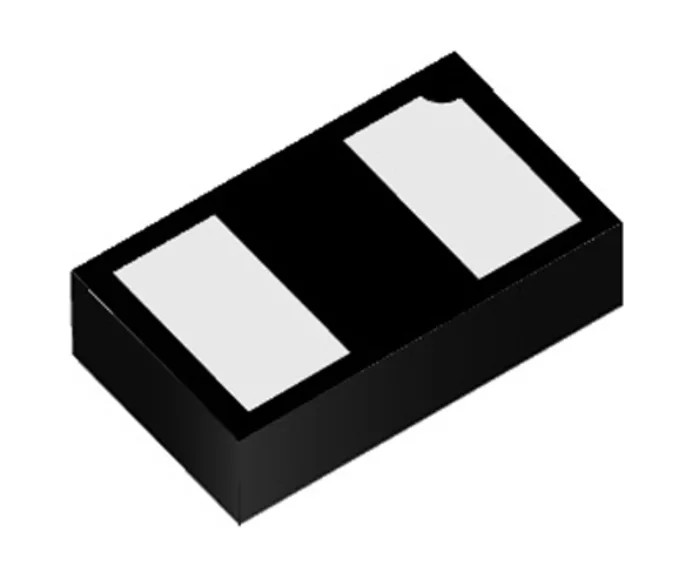

Semtech 9-Element Uni-Directional TVS Diode 150 W, 10-Pin SLP2510P8 RCLAMP0521PATCT

Semtech RCLAMP0521PATCT is a 9-element uni-directional transient voltage suppression (TVS) diode engineered to protect sensitive electronic components from voltage spikes. This device provides a peak pulse power dissipation of 150 W in a compact 10-pin SLP2510P8 surface mount package.

Designed for a wide array of applications including mobile phones, LCDs, USB 2.0/OTG, MMC and SD card interfaces, MDDI ports, SIM ports, keypads, and Gigabit Ethernet systems, this diode ensures high reliability and protection against overvoltage events.

Its key electrical specifications include a minimum breakdown voltage of 6 V, a maximum reverse stand-off voltage of 5 V, and a clamping voltage of 15 V. The diode supports a maximum pulse current of 5 A and offers ESD protection, making it suitable for robust transient suppression.

The temperature tolerance from -55°C to 125°C ensures operational stability in demanding industrial and commercial electronic environments. Its physical dimensions - 2.6 mm length, 1.1 mm width, and 0.6 mm height - allow for space-efficient PCB layouts using surface mount technology.

This TVS Diode features a low leakage current of 1 μA, which is critical for maintaining circuit integrity in sensitive devices. The RCLAMP0521P series is known for its low capacitance and fast response, making it ideal in high-speed data lines and interfaces.

The diode is RoHS compliant and manufactured in China, providing compliance and traceability for industrial users.

Semtech’s RCLAMP0521PATCT diode array is reliable for protecting devices in electronic, telecommunications, and computer industries. Its compact form factor and robust electrical characteristics make it a preferred choice in industrial, laboratory, electronics manufacturing, and commercial product designs.
