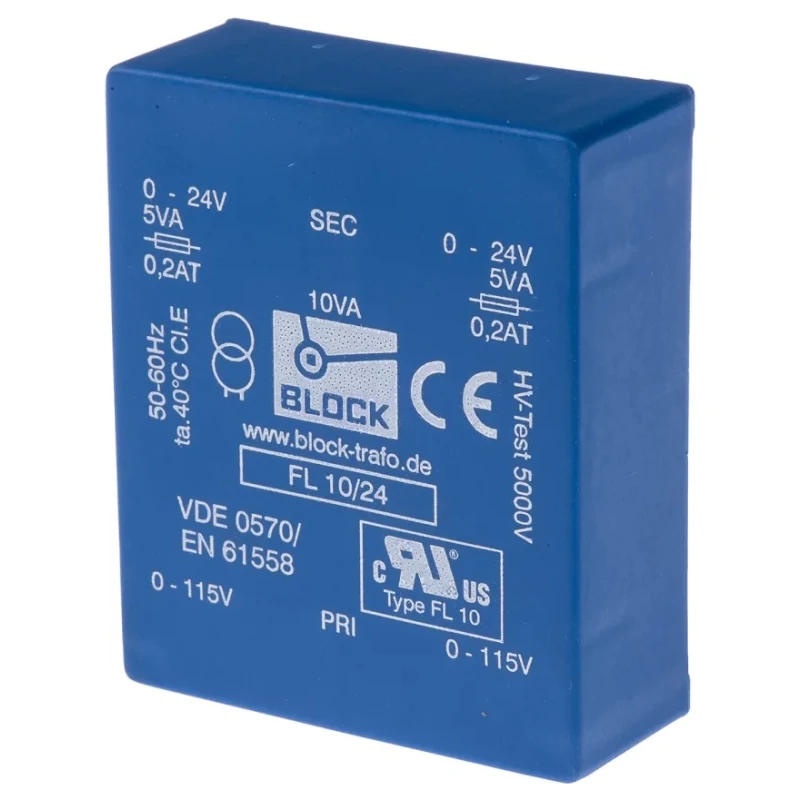

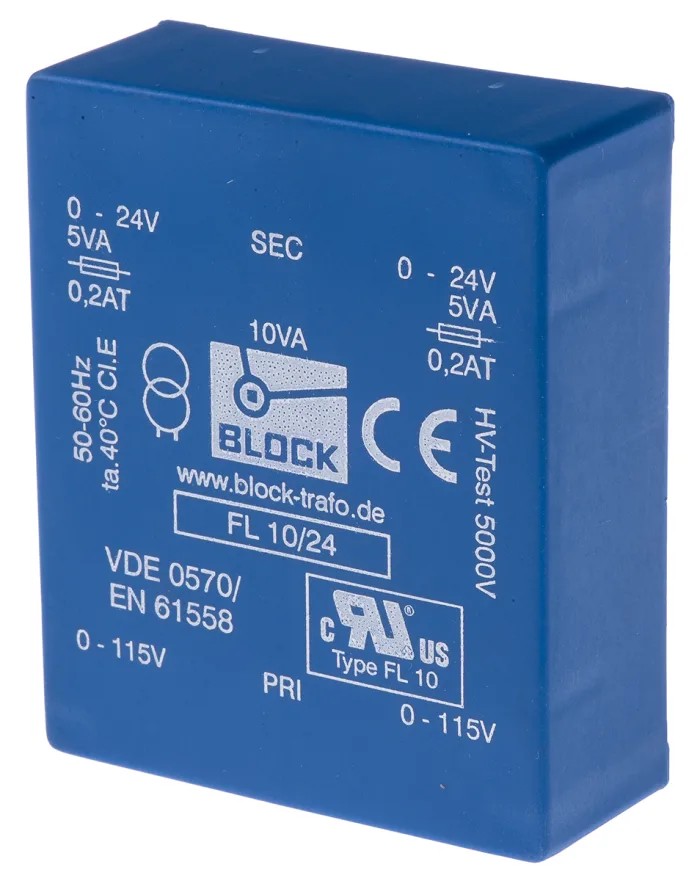

Block PCB Transformer 115 V ac, 230 V ac Primary, 24 V ac Dual Secondary, Pin Mount FL 10/24

Block FL 10/24 PCB Transformer is a high-quality electrical component designed for efficient voltage transformation in electronic applications. It operates with a primary voltage rating of 115 V ac or 230 V ac and provides two secondary outputs each delivering 24 V ac. Its dual secondary winding design supports series or parallel connection flexibility for various circuit requirements.

The transformer features a low profile and compact dimensions (68mm x 44mm x 57mm) making it suitable for space-constrained PCB mounting applications. It is vacuum epoxy resin molded to achieve UL94 V-0 flammability standard, ensuring robust electrical insulation and safety.

Designed with double-section glass fibre reinforced polyamide bobbins, this transformer boasts excellent mechanical strength and durability. Its isolation voltage of 5000 V provides superior protection against electrical shocks and faults. The maximum operating temperature is 40°C, which ensures stable performance in demanding environments.

Compliance with a wide range of standards including VDE 0570 Teil 2-6, IEC 61558-2-4, UL 94 V-0, and DIN EN 61558 ensures the transformer meets stringent safety and quality requirements. Additional features such as low inter-winding capacitance minimize noise and electromagnetic interference, improving overall circuit integrity.

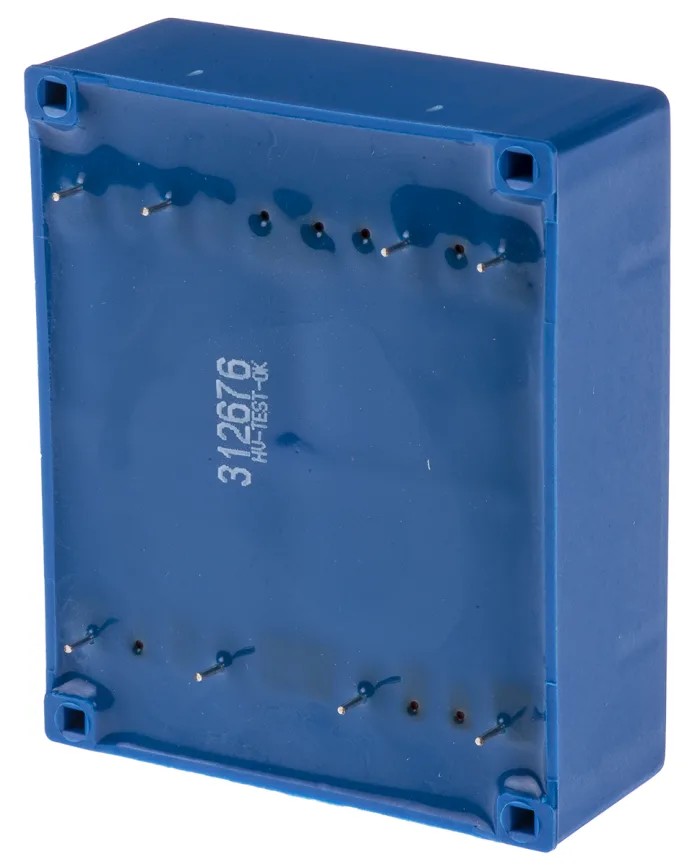

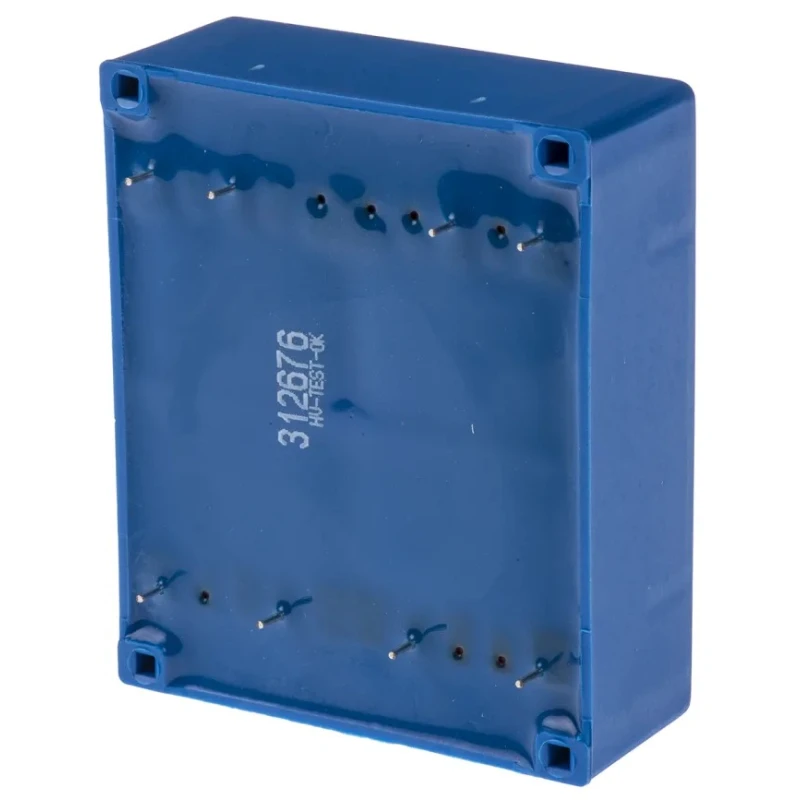

The pin mount type with extra fixing holes allows easy and secure installation on printed circuit boards. This product is manufactured in Germany maintaining ultra-high production quality, ideal for industrial, laboratory, and commercial electronic equipment.

Operates at a maximum temperature of 40°C ensuring reliable performance. Features dual secondary windings providing 24 V ac output voltage with two outputs. Compact low-profile design with dimensions 68mm length, 44mm width, and 57mm depth.

Vacuum epoxy resin molded to UL94-V0 rating for excellent electrical insulation. Certified to multiple standards including VDE 0570 Teil 2-6 and IEC 61558 series. Isolation voltage rated up to 5000 V for enhanced safety.

Low inter-winding capacitance ensures minimal noise and interference. Mount type is pin for easy PCB installation. Manufactured in Germany guaranteeing high manufacturing quality. Low radiated noise and extra fixing holes allow secure board mounting.

Block transformers are a reliable choice for electronic equipment manufacturers looking for safety, performance, and compliance in PCB transformer components. Explore more in the PCB Transformer category on EnvMart for high-quality power supply and transformer solutions.
