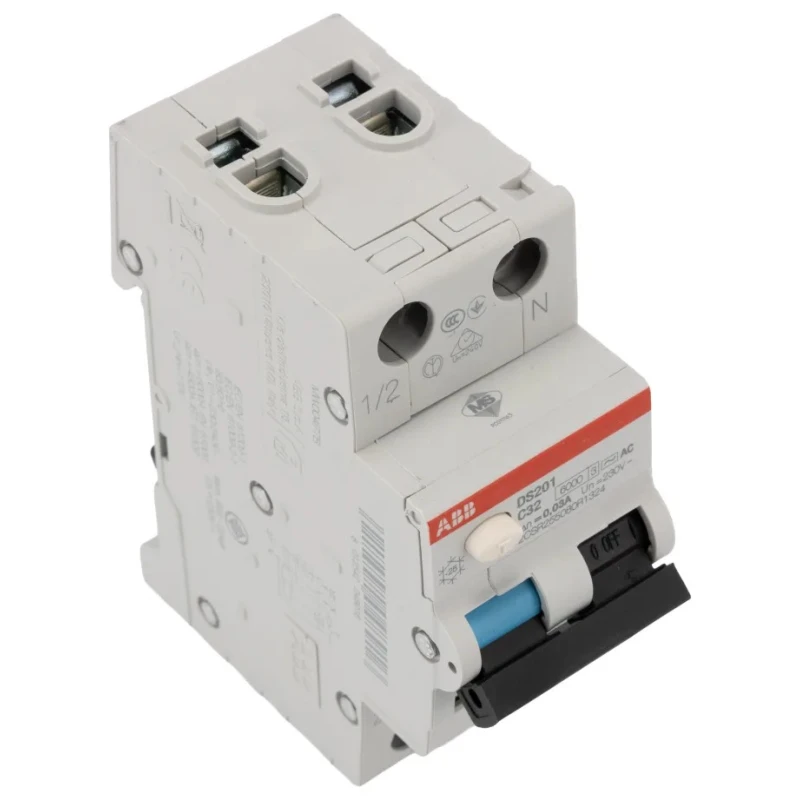

ABB Residual Current Circuit Breaker with Overload Protection 32A Current Rating 2-Pole 30mA 2CSR255080R1324 DS201 C32 AC30

ABB 2CSR255080R1324 DS201 C32 AC30 Residual Current Circuit Breaker with Overload Protection is designed for protecting single-phase electrical circuits from overloads, short circuits, and earth leakage currents. With a 32A current rating and 30mA trip sensitivity, it ensures rapid disconnection in case of faults, thus enhancing electrical safety and protecting connected equipment.

This 2-pole RCBO features Type C tripping characteristics, specifically suited for inductive loads such as motors, providing reliable protection in industrial, commercial, and residential electrical systems. The device mounts easily on standard DIN rails, occupying just two modules with compact dimensions of 69mm width, 85mm height, and 69mm depth.

Equipped with a thermal magnetic tripping mechanism and a toggle switch reset actuator, it offers dependable manual control and efficient tripping performance. Its rated AC voltage of 240V and breaking capacity of 10kA enable it to safely interrupt high short-circuit currents, protecting downstream equipment.

Compliant with RoHS and IEC standards, this breaker is designed for durability and safety compliance. It operates reliably in a broad temperature range from -25°C to 55°C, making it suitable for various environmental conditions.

Applications include use in residential homes, commercial buildings, electrical distribution boards, and automation systems requiring protection against earth faults and overloads. This device is critical for safeguarding sensitive electronic equipment and ensuring overall electrical safety.

32A current rating ensures robust protection against overload and short circuits. 30mA trip sensitivity offers fast response to earth faults for enhanced safety. Type C tripping characteristics suitable for inductive loads such as motors.

Compact 2-pole design compatible with DIN rail mounting systems. 10kA breaking capacity to handle high short-circuit currents safely. Thermal magnetic tripping mechanism to protect circuits effectively. Toggle switch reset actuator for convenient manual control.

Suitable for use with 240V AC rated systems. Complies with RoHS and IEC standards for reliability and safety. Dimensions: Width 69mm, Height 85mm, Depth 69mm for compact installation. Explore more ABB circuit protection devices on EnvMart for comprehensive electrical safety solutions.
