TE Connectivity 55A Series White Hook Up Wire 22 AWG 19x34 AWG Core Strands 100 m Ethylene 55A1111-22-9-9

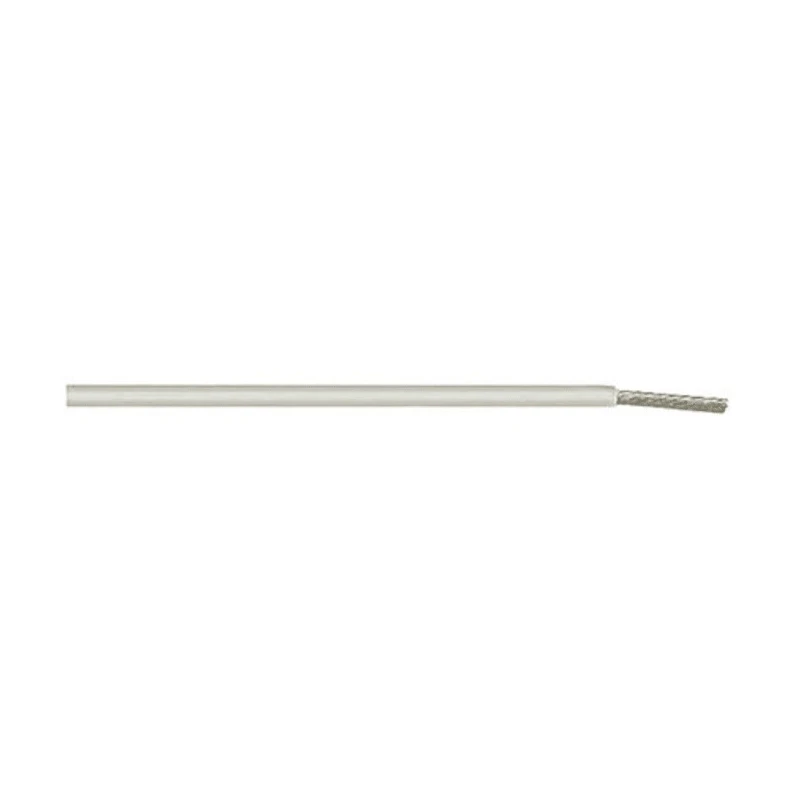

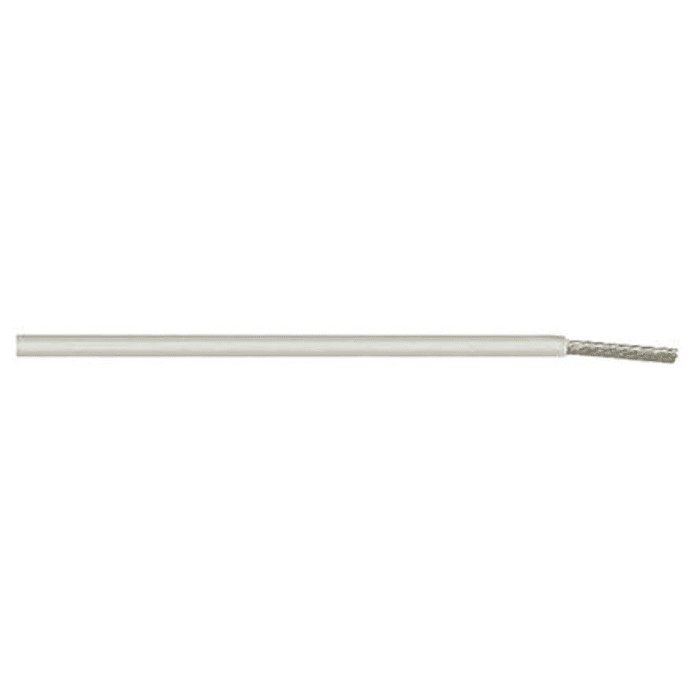

TE Connectivity 55A1111-22-9-9 White Hook Up Wire is a 22 AWG single core cable featuring 19 strands of 34 AWG size, insulated with a modified radiation cross-linked Ethylene Tetrafluoroethylene (ETFE) fluoropolymer jacket. This insulation provides a durable, flame retardant jacket with a white color and a total outside diameter of 2.03 mm. Designed to operate at voltages up to 600 volts, this hook up wire can withstand extreme temperatures ranging from -65°C to 150°C.

The Type 55® wire is equipped with dual wall Airframe construction, widely used in aerospace and industrial environments requiring high temperature ratings. The dual wall design includes a contrasting blue core color that acts as a damage indicator and a total wall thickness of 0.25 mm. The copper conductor ensures excellent electrical performance with high conductivity and mechanical strength.

This wire exhibits exceptional resistance to various chemicals, electrical arc tracking, UV radiation, and moisture degradation. Its flexibility and abrasion resistance make it easy to handle and install, providing reliable performance in demanding environments.

Applications include commercial wiring, avionics systems, satellites, aircraft wiring, helicopters, and high-performance military equipment. The MIL-STD-681 standard compliance ensures it meets stringent military and aerospace requirements.

Each reel contains 100 meters of wire, making it suitable for extensive wiring projects. The flame retardant properties enhance safety in installations where fire resistance is critical.

Type 55® wire insulated with modified radiation cross-linked ETFE polymer. Dual wall Airframe construction for high temperature and durability. Copper conductor with 19 strands of 34 AWG size. White Ethylene Tetrafluoroethylene jacket with 2.03 mm diameter.

Rated voltage of 600V, operating temperature range -65°C to 150°C. Flame retardant and chemically resistant jacket. Meets MIL-STD-681 standard for military and aerospace applications. Flexible and abrasion resistant for excellent handling.

Suitable for commercial wiring, avionics, satellites, and military systems. 100 meters cable length per reel. Explore our extensive range of Hook Up Wires and cables at EnvMart for quality and performance in electrical and aerospace applications.
