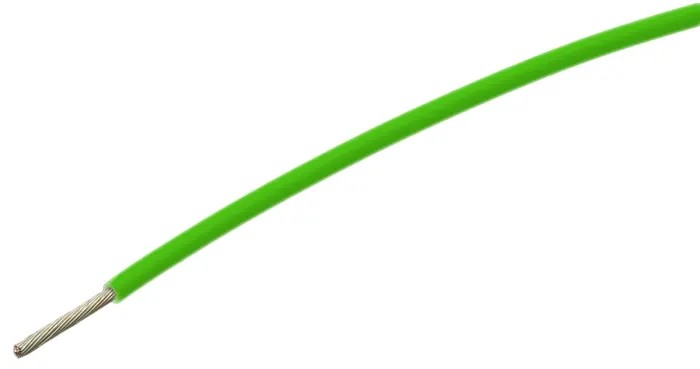

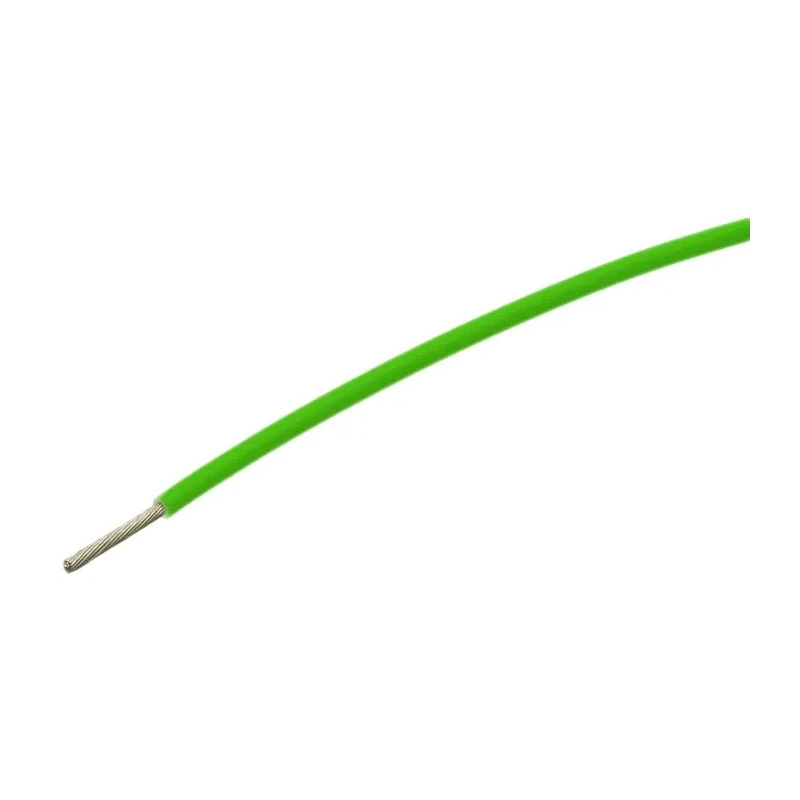

TE Connectivity 55A Series Green 0.22 mm² Hook Up Wire, 24 AWG, 19/0.127 mm Core Strands, 100 m Length 55A0111-24-5

TE Connectivity 55A0111-24-5 55A Series Green Hook Up Wire features a 0.22 mm² cross-sectional area with 24 AWG copper conductor strands. This wire utilizes a high-performance ethylene tetrafluoroethylene (ETFE) fluoropolymer jacket that provides outstanding mechanical ruggedness and electrical insulation.

The conductor comprises 19 strands, each 0.127 mm in diameter, enabling superior current carrying capacity and flexibility. Operating voltage is rated up to 600V, with a maximum temperature rating of 150°C and a minimum operating temperature of -65°C, making it ideal for demanding environments.

The wire conforms to NEMA-WC-27500 and SAE AS22759/32-35/41 to /46 standards, ensuring compliance with stringent military and aviation specifications. Its flame retardant jacket and resistance to electrical arc tracking, chemicals, UV rays, and moisture make it highly reliable for safety-critical applications.

The dual wall airframe construction includes a total wall thickness of 0.25 mm and a contrasting blue core color to serve as a damage indicator, enhancing quality control in installations.

This hook up wire is widely used in commercial wiring, avionics, satellites, aircraft, helicopters, and high-performance military systems, where small size, ultra-lightweight materials, and mechanical ruggedness are essential.

The wire is insulated with modified radiation cross-linked ETFE polymer for superior durability. Ethylene tetrafluoroethylene fluoropolymer jacket provides flame retardant protection. Conductor material is copper with 19 strands at 0.127 mm diameter for flexibility.

Rated for 600 V operating voltage and temperature ranges from -65°C to 150°C. Standards compliance includes NEMA-WC-27500 and SAE AS22759 series. Offers exceptional resistance to chemicals, electrical arc tracking, UV, and moisture.

Dual wall airframe features a 0.25 mm total wall thickness and contrasting core color. Applications include commercial wiring, avionics, satellites, aircraft, helicopters, and military systems.

This product ensures reliable electrical performance and durability in demanding industrial, aerospace, and military environments. Explore our wide range of high-quality Hook Up Wires at EnvMart.
