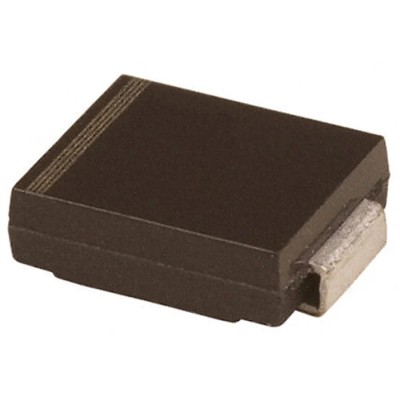

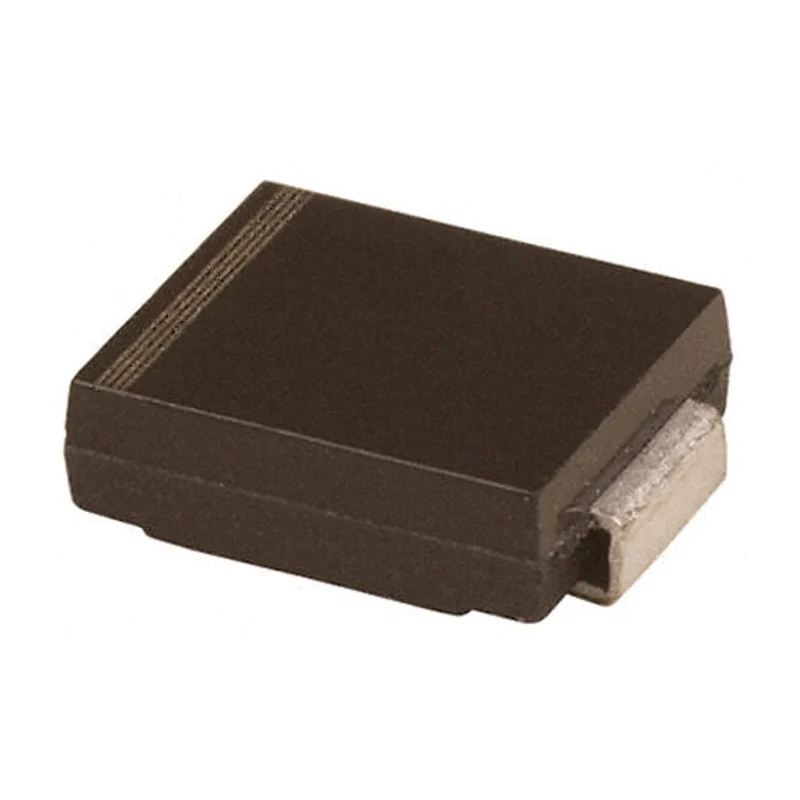

HY Electronic Corp 40 V 3 A Surface Mount Schottky Barrier Rectifier Diode DO-214AB SS34
Specifications
| Country of Origin | China |
|---|---|
| Brand | HY Electronic Corp |
| Height | 2.75mm |
| Length | 7.15mm |
| Model | SS34 |
| Width | 6.25mm |
| Mount Type | Surface |
| Series | FBI |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -55°C |
| Polarity | indicated by cathode band |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 20mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 500mV |
| Moulded Plastic Case (Plastic | flammability classification UL 94V-0) |
Key Features
- The diode features a low forward voltage drop of 500 mV for improved efficiency.
- It has a 2-pin DO-214AB (SMC) package suitable for surface mounting.
- Peak non-repetitive forward surge current is rated at 100 A.
- Operating temperature ranges from -55°C to 150°C, ensuring durability in harsh environments.
- Metal-semiconductor junction design provides fast switching and low leakage current of 20 mA peak reverse current.
- Plastic molded case conforms to UL 94V-0 flammability standards for safety.
- Polarity is clearly indicated by a cathode band for correct circuit implementation.
Product Description
HY Electronic Corp SS34 Schottky barrier rectifier diode offers reliable surface mount diode performance with a maximum continuous forward current of 3 A and peak reverse repetitive voltage of 40 V. Ideal for industrial electronic applications, this diode provides fast switching capabilities and a low forward voltage drop of 500 mV, reducing power loss.
The diode is housed in a compact DO-214AB (SMC) plastic molded case with UL 94V-0 flammability classification, ensuring safety and durability under demanding conditions. It operates reliably in temperature ranges from -55°C up to a maximum of 150°C, making it suitable for diverse environments.
With its metal-semiconductor junction and epitaxial construction, the SS34 diode delivers excellent performance characteristics, including a peak non-repetitive forward surge current rating of 100 A and a low peak reverse current of 20 mA. The two-pin configuration allows easy integration on printed circuit boards via surface mount technology.
Primary applications include free-wheeling diodes, inverters, and polarity protection circuits in industrial, automotive, and power electronics manufacturing sectors. The diode’s polarity is marked clearly to ensure correct assembly during manufacturing processes.
The diode features a low forward voltage drop of 500 mV for improved efficiency. It has a 2-pin DO-214AB (SMC) package suitable for surface mounting. Peak non-repetitive forward surge current is rated at 100 A. Operating temperature ranges from -55°C to 150°C, ensuring durability in harsh environments.
Metal-semiconductor junction design provides fast switching and low leakage current of 20 mA peak reverse current. Plastic molded case conforms to UL 94V-0 flammability standards for safety. Polarity is clearly indicated by a cathode band for correct circuit implementation.
For industrial applications and design projects requiring high-reliability Schottky diodes, HY Electronic Corp SS34 offers proven performance and quality. Explore more Electronic Components including Schottky diodes, barrier rectifiers, and discrete semiconductors on EnvMart for your engineering and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 3 A.
The peak reverse repetitive voltage rating is 40 V.
The diode has a low forward voltage drop of 500 mV.
It operates reliably within a temperature range of -55°C to 150°C.
The diode is housed in a DO-214AB (SMC) package suitable for surface mounting.
The peak non-repetitive forward surge current is rated at 100 A.
The diode has a height of 2.75 mm, a length of 7.15 mm, and a width of 6.25 mm.
The polarity is clearly indicated by a cathode band for correct circuit implementation.
The peak reverse current is rated at 20 mA.
This model is a Schottky barrier rectifier.
The diode features a plastic molded case that conforms to UL 94V-0 flammability standards.
This diode is suitable for applications such as free-wheeling diodes, inverters, and polarity protection circuits in industrial and automotive sectors.
