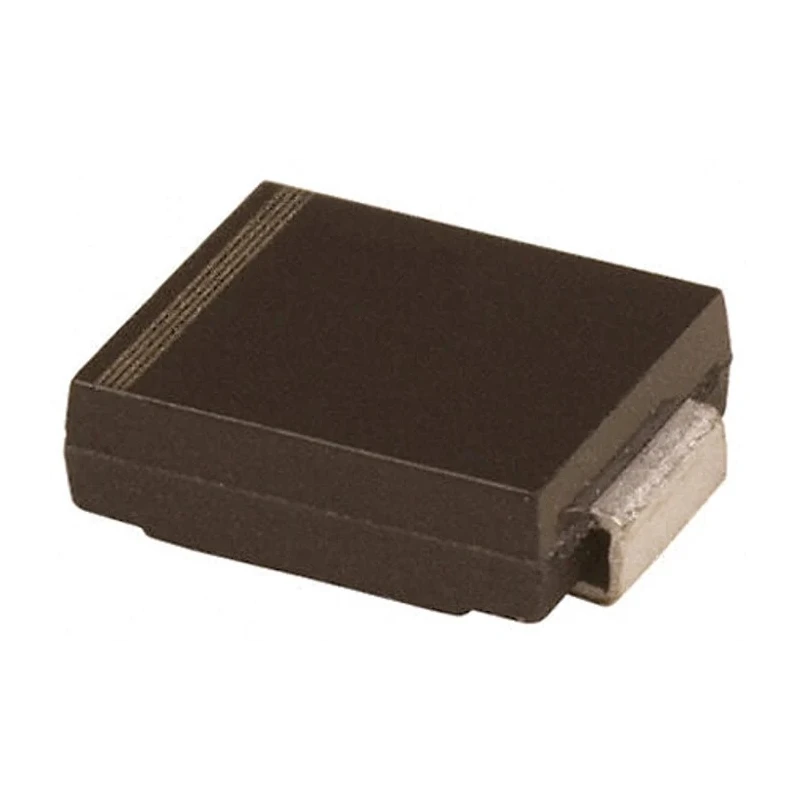

HY Electronic Corp 40 V 3 A Surface Mount Schottky Diode DO-214AB SS34

HY Electronic Corp SS34 is a surface mount Schottky barrier rectifier diode designed for robust performance in electronics requiring low forward voltage and high surge capability. Housed in the compact DO-214AB (SMC) plastic package with UL 94V-0 flammability classification, this diode operates efficiently across a wide temperature range from -55°C up to 150°C.

This single diode is rated for a maximum continuous forward current of 3 A, supporting peak reverse repetitive voltage of 40 V, making it suitable for protective and rectification applications in power electronics such as free-wheeling diodes and inverter circuits.

The diode features a low maximum forward voltage of 500 mV, ensuring minimal power loss and thermal stress. The robust peak non-repetitive forward surge current of 100 A allows it to tolerate transient current spikes safely.

Its molded plastic case measures 2.75 mm in height, 7.15 mm in length, and 6.25 mm in width with polarity marked by a cathode band for easy correct orientation during PCB assembly.

Made in China, the SS34 diode delivers durable and consistent performance for industrial, automotive, and commercial electronic applications requiring reliable rectification and protection solutions.

This diode is specifically designed for surface mount PCB technology enhancing manufacturing efficiency. Suited for applications in power supplies, inverter systems, and polarity protection circuits. Its low forward voltage drop aids in reducing overall circuit power dissipation.

Excellent transient surge handling ensures longevity in demanding electronic environments. The clear cathode marking supports fast and error-free assembly processes. Explore more Schottky diodes and rectifiers for precision power management at EnvMart.
