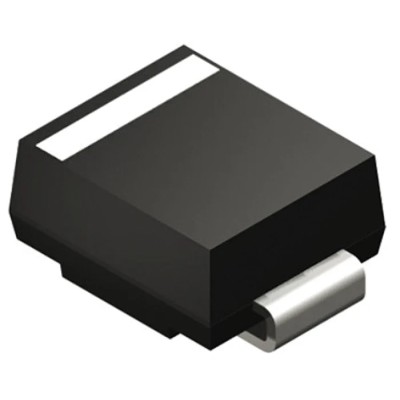

HY Electronic Corp 60 V 2 A Surface Mount Schottky Barrier Rectifier Diode DO-214AC SS26A

HY Electronic Corp SS26A Schottky Barrier Rectifier Diode is a surface mount diode designed for efficient power rectification in electronic circuits. Featuring a low forward voltage drop and fast switching capability, the SS26A operates with a maximum continuous forward current of 2 A and a peak reverse voltage of 60 V, making it suitable for applications including free-wheeling diodes, polarity protection, and inverters.

Encased in a DO-214AC moulded plastic package with a flammability classification of UL 94V-0, the diode ensures reliable operation in harsh industrial, commercial, and automotive environments. It functions over a wide temperature range from -55°C to 150°C, supporting stable performance under varied thermal conditions.

The device features a metal-semiconductor junction with guarding for enhanced reliability and polarity indication via a cathode band, easing correct PCB placement. Its small dimensions (4.6 mm length, 2.9 mm width, and 2.41 mm height) enable compact circuit designs and surface mount technology implementation.

Its electrical characteristics include a peak non-repetitive forward surge current of 50 A and a low peak reverse current of 20 mA, which contribute to efficient energy conversion and reduced power dissipation. The diode is an excellent choice for power rectification needs in industrial controls, electrical equipment, telecommunications, and consumer electronics manufacturing.

Designed for surface mount assembly with low forward voltage drop. Maximum continuous forward current of 2 amperes for reliable operation. Peak reverse voltage rating of 60 volts suitable for various power applications. Operates at temperatures from -55°C to 150°C ensuring durability.

Moulded plastic case with UL 94V-0 flammability rating for safety. Polarity is clearly indicated by a cathode band for correct installation. Offers peak non-repetitive forward surge current of 50 amperes for transient conditions.

Compact package dimensions with length 4.6 mm, width 2.9 mm, and height 2.41 mm. Low peak reverse current of 20 mA reduces power loss and heating. Explore the range of Schottky Diodes and Rectifiers at EnvMart for advanced semiconductor components suited for diverse industrial and electronic applications.
