| Country of Origin | China |
|---|---|
| Brand | HY Electronic Corp |
| Height | 2.23mm |
| Length | 4.7mm |
| Model | SS210 |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | FBI |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Polarity | indicated by cathode band |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 20mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 850mV |
| Moulded Plastic Case (Plastic | flammability classification UL 94V-0) |

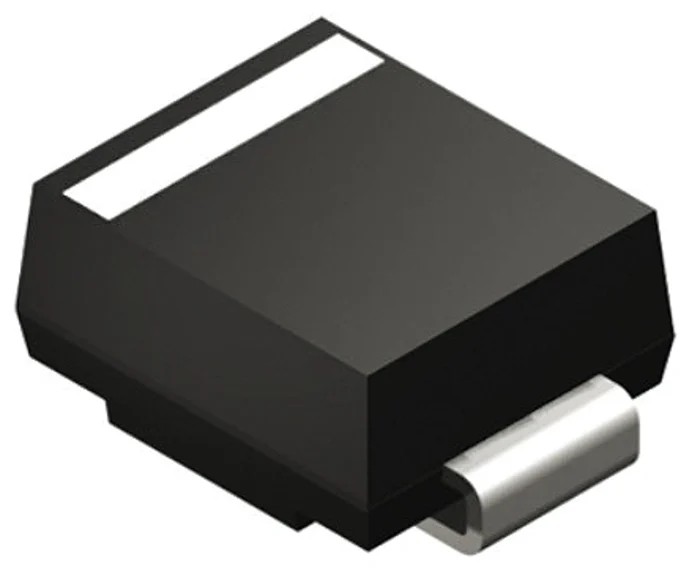

HY Electronic Corp SS210 is a Schottky barrier rectifier diode designed for surface mount applications with a DO-214AA package. It provides a maximum continuous forward current of 2 A and peak reverse repetitive voltage of 100 V. This diode is engineered with epitaxial construction and metal-semiconductor junction technology featuring guarding for improved reliability and reduced forward voltage drop.
It operates effectively within a wide temperature range, from -55°C to 150°C, making it suitable for demanding industrial and commercial environments. The device supports a peak non-repetitive forward surge current of 50 A, ensuring robustness in transient conditions.
The low forward voltage of 850 mV enhances efficiency, reducing power loss in rectification circuits. Its compact dimensions (4.7 mm length, 3.94 mm width, 2.23 mm height) and plastic moulded case with UL 94V-0 flammability classification enable safe and reliable mounting on printed circuit boards. The polarity is identified by a cathode band for ease of assembly.
This diode is commonly used in power supply rectification, free-wheeling diode applications, inverters, and polarity protection circuits in industrial electronics and telecommunications. It delivers excellent performance in surface mount configurations, ideal for space-constrained designs.
Maximum continuous forward current of 2 A. Peak reverse repetitive voltage rating of 100 V. DO-214AA surface mount package with 2 pins. Operating temperature range from -55°C to 150°C. Low maximum forward voltage of 850 mV.
Peak non-repetitive forward surge current of 50 A. Compact size with a height of 2.23 mm. Polarity indicated by cathode band. Explore more Schottky diodes and rectifiers from HY Electronic Corp at EnvMart for your industrial and electronic component needs.
