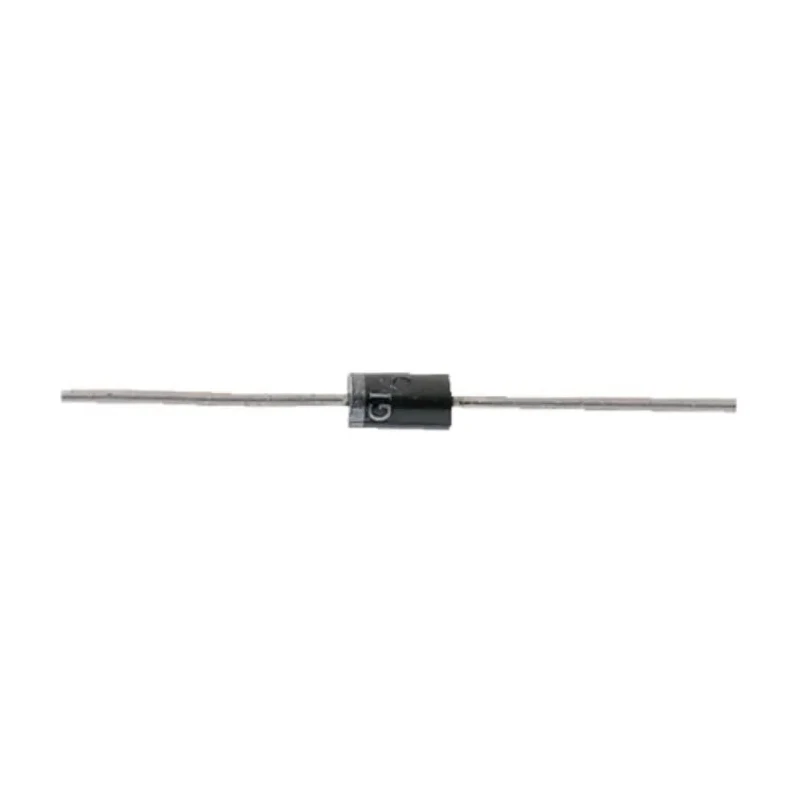

HY Electronic Corp 60 V 5 A Schottky Diode Through Hole DO-27 SR560

HY Electronic Corp SR560 Schottky Diode is a reliable semiconductor device with 60 V peak reverse voltage and 5 A maximum continuous forward current, housed in a through hole DO-27 package. It is optimized for fast switching and freewheeling in high-frequency inverter circuits, providing efficient polarity protection with minimal forward voltage drop.

The diode's metal semiconductor junction with guard ring construction offers enhanced durability and performance. Its epitaxial structure enables high current handling capacity and rapid response, making it ideal for various industrial and electronic applications.

Operating temperature ranges from -55°C to 150°C, allowing stable function under demanding environmental conditions. The diode includes a colour band to denote cathode polarity, simplifying installation and reducing wiring errors. The plastic casing meets UL 94V-0 standards for flame retardancy, ensuring safety in electronic assemblies.

Typical uses include power management in semiconductor circuits, rectifiers in electronic devices, and as a component in automotive and industrial electronics. With compact dimensions of 9.5 mm height, 59.5 mm length, and 5.6 mm diameter, the SR560 fits efficiently into space-constrained designs.

Designed for high-frequency fast switching and polarity protection applications. Features a low forward voltage to reduce power loss during operation. Metal semiconductor junction with guard ring enhances performance. Operates reliably from -55°C to 150°C.

Colour band marking denotes cathode polarity for correct installation. Plastic body material is UL 94V-0 flame retardant. Compact dimensions support space-efficient electronic design. Ideal for power management, rectifier, and inverter applications.
