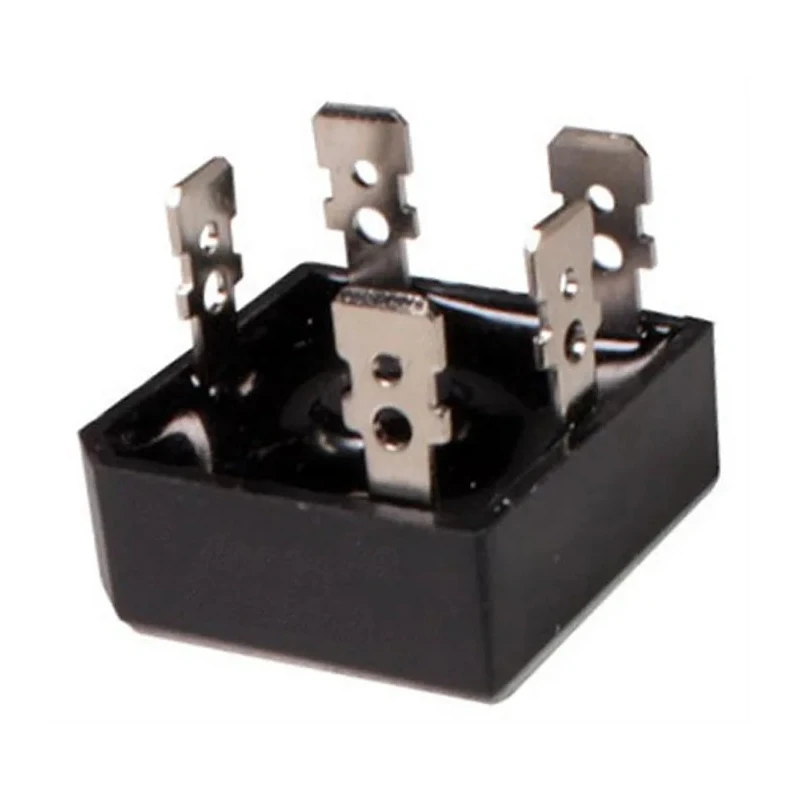

HY Electronic Corp Bridge Rectifier 1200 V 500 A 5-Pin Single SBR3512

HY Electronic Corp SBR3512 Bridge Rectifier 5-Pin Single is a silicon passivated three-phase bridge rectifier designed for precise and efficient AC to DC current conversion in various industrial and electronic applications. It is suited for use in circuit boards and power electronics assemblies where reliable rectification and thermal stability are crucial.

This bridge rectifier supports a forward current of 35 A with a peak reverse repetitive voltage of 1200 V, ensuring high voltage resilience and steady current handling capacity. With a peak non-repetitive forward surge current rating of 500 A, it can tolerate transient current spikes without damage, enhancing durability.

The device is designed for through-hole mounting, with a 5-pin configuration optimized for three-phase rectification circuits. Its compact dimensions of 28.8 mm length, 28.8 mm width, and 11.5 mm height facilitate easy integration into standard PCB layouts.

Thermal performance is excellent with a maximum operating temperature of 150°C and a minimum of -55°C, equipping it for demanding industrial and HVAC environments. The low forward voltage drop of 1.2 V reduces power loss, while the peak reverse current of 5 mA minimizes standby energy consumption.

The device supports a forward current of 35 A making it suitable for moderate power applications. It features a peak non-repetitive forward surge current of 500 A for handling short-duration high current peaks. The bridge rectifier has a maximum operating temperature of 150°C and minimum operating temperature of -55°C, allowing reliable operation in harsh environments.

It uses a through-hole mount type and has 5 pins arranged for wiring compatibility. The device dimensions are 28.8 mm length, 28.8 mm width, and 11.5 mm height, making it compact for circuit board integration. Its peak forward voltage drop is low at 1.2 V, improving efficiency.

The peak reverse current is minimal at 5 mA, reducing standby losses. This product is manufactured in China and belongs to the SBR35 series by HY Electronic Corp.

This bridge rectifier is ideal for applications in industrial electronics, power supplies, manufacturing machines, HVAC systems, and laboratory equipment where efficient and stable DC power is required. The robust thermal and electrical tolerances ensure consistent performance in demanding environments.
