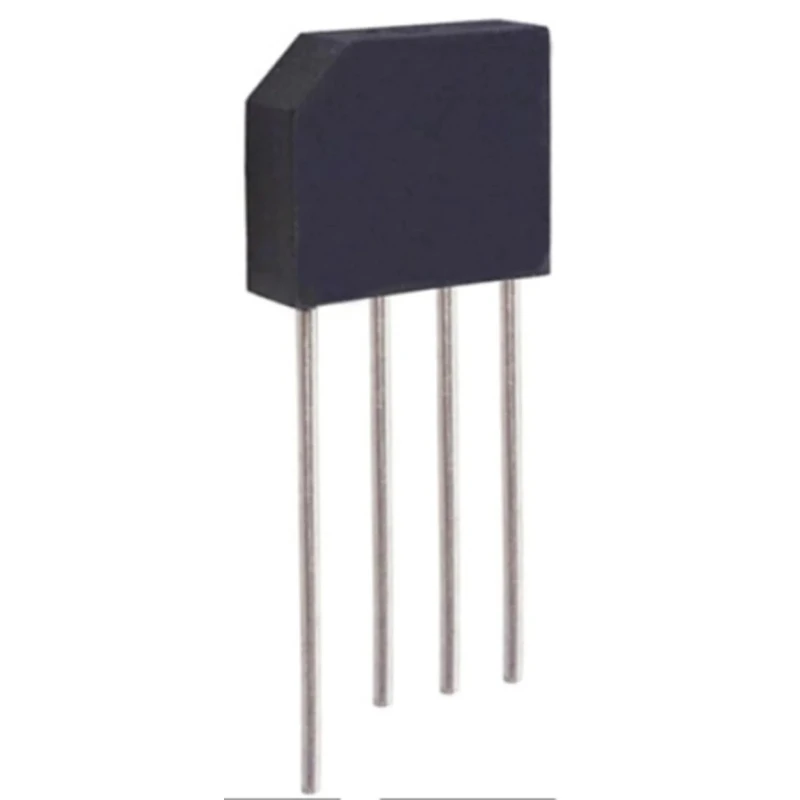

HY Electronic Corp Bridge Rectifier 600 V 125 A 4-Pin Single KBL06G
Specifications
| Country of Origin | China |
|---|---|
| Brand | HY Electronic Corp |
| Height | 16.3mm |
| Length | 19.5mm |
| Model | KBL06G |
| Width | 6.5mm |
| Mount Type | Through Hole |
| Series | KBL0 |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | KBL |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 125A |
| Forward Current If | 4A |
| Peak Forward Voltage Vf | 1.1V |
| Flammability Classification | UL94V-0 |
Key Features
- Glass passivated bridge rectifier for reliable performance.
- Rated for peak reverse repetitive voltage of 600 V.
- Supports forward current of 4 A with peak surge current of 125 A.
- Compact through-hole mounting with 4 pins configuration.
- Operating temperature range from -55°C to 150°C.
- Low peak forward voltage drop of 1.1 V for efficiency.
- Single phase bridge rectifier suitable for PCB mounting.
- Complies with UL flammability classification UL94V-0 for safety.
Product Description
HY Electronic Corp KBL06G Bridge Rectifier is a 4-pin single-phase device designed for converting alternating current (AC) into direct current (DC) with high efficiency and reliability. Rated for a peak reverse repetitive voltage of 600 V and a forward current of 4 A, it offers robust performance for various industrial and electronic applications.
This bridge rectifier comes in a glass passivated package that provides excellent thermal and electrical stability. It supports a peak non-repetitive forward surge current of 125 A, making it suitable for surge conditions encountered in power electronics and control systems. The device operates efficiently over a wide temperature range from -55°C to 150°C, ensuring functionality in demanding environments.
The compact KBL package type with through-hole mounting and 4-pin design facilitates easy integration onto printed circuit boards (PCBs) in industrial and commercial electronic assemblies. Its single-phase configuration is ideal for applications requiring AC to DC conversion such as power supplies, battery chargers, and motor drives.
With a low forward voltage drop of 1.1 V, the rectifier ensures minimal power loss and greater energy efficiency. The product also features UL flammability classification UL94V-0, confirming its resistance to combustion under safety testing standards.
Dimensions are precise with a length of 19.5 mm, height of 16.3 mm, and width of 6.5 mm, enabling compact designs without compromising durability. Made in China, this rectifier meets high-quality manufacturing standards suitable for electronic component needs.
Glass passivated bridge rectifier for stable performance. Peak reverse voltage rating of 600 V for high voltage applicability. Forward current of 4 A, supporting typical power supply demands. Withstands surge currents up to 125 A peak for reliability.
Through-hole mount type with 4 pins for PCB integration. Wide operating temperature range from -55°C to 150°C. UL94V-0 flammability classification for enhanced safety. Compact dimensions: 19.5 mm length × 16.3 mm height × 6.5 mm width.
Single-phase configuration for AC to DC conversion applications.
This Bridge Rectifier from HY Electronic Corp is ideal for use in industrial electronics, power supply units, motor controllers, and various electrical equipment. Its robust design and proven performance support demanding applications in electronics manufacturing, automotive electronics, laboratory power conversion, and more.
Explore more electronic components from our extensive catalog to meet your design and production needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bridge rectifier is rated for a peak reverse repetitive voltage of 600 V.
It supports a forward current of 4 A.
The KBL06G can withstand a peak non-repetitive forward surge current of 125 A.
This model operates efficiently over a temperature range from -55°C to 150°C.
The dimensions are 19.5 mm in length, 16.3 mm in height, and 6.5 mm in width.
It features a through-hole mounting type with a 4-pin configuration.
The bridge rectifier complies with the UL94V-0 flammability classification.
Yes, it is designed as a single-phase bridge rectifier, suitable for AC to DC conversion.
This model comes in a KBL package type.
The peak forward voltage drop is 1.1 V.
It is suitable for various applications including power supplies, battery chargers, and motor drives.
The bridge rectifier is manufactured in China.
