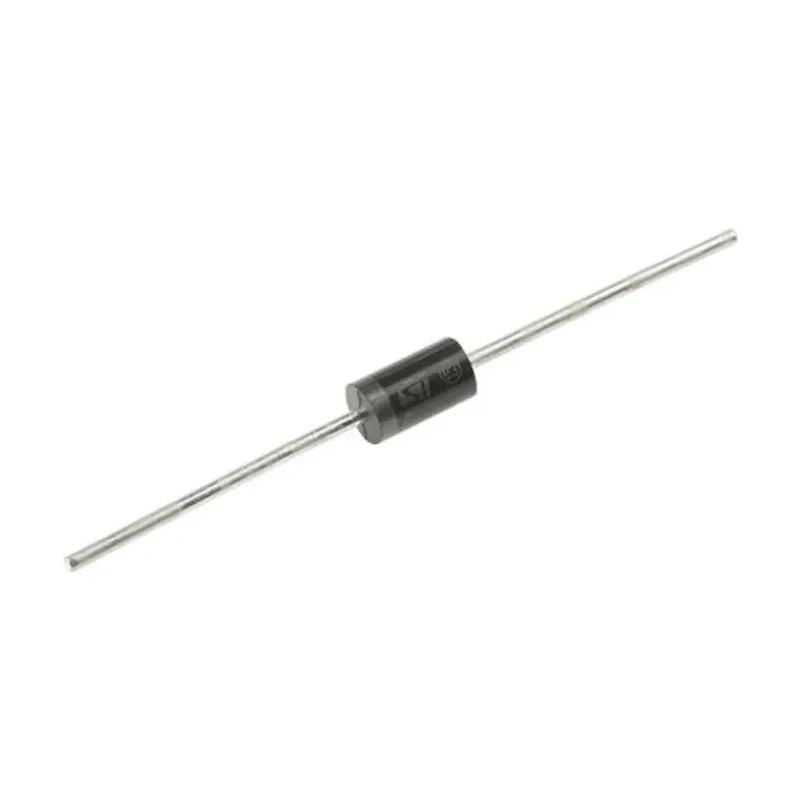

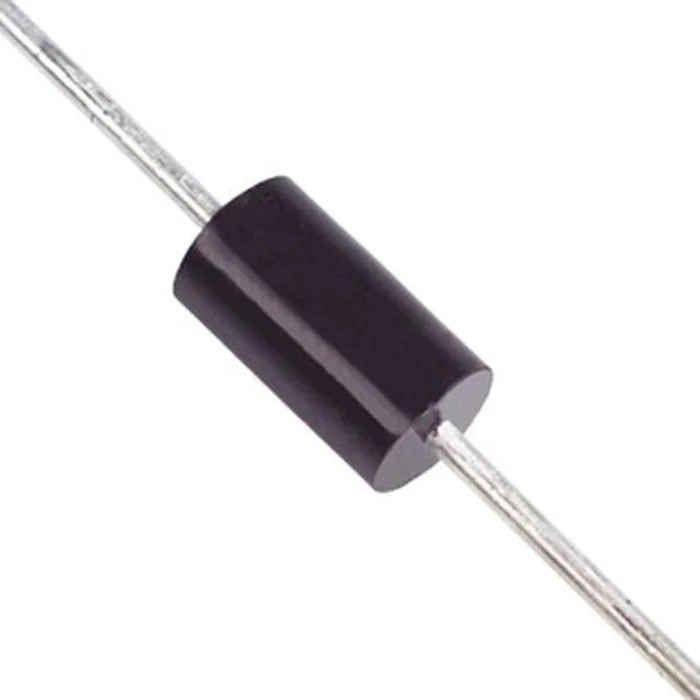

STMicroelectronics 600 V 5 A Through Hole Switching Diode DO-201AD STTH5L06RL
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | STMicroelectronics |
| Height | 9.5mm |
| Length | 28.25mm |
| Model | STTH5L06RL |
| Width | 4.4mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 150μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 110A |
| Maximum Forward Voltage Vf | 1.05V |
Key Features
- Diode features a maximum continuous forward current of 5 amperes.
- Supports a peak reverse repetitive voltage of 600 volts.
- Design includes a single diode configuration with 2 pins for through-hole mounting.
- Maximum forward voltage drop is 1.05 volts ensuring efficient switching performance.
- Operating temperature range from -40°C to 175°C allows for reliable industrial use.
- Peak non-repetitive forward surge current is 110 amperes for transient protection.
- Compact dimensions with length 28.25 mm, width 4.4 mm, height 9.5 mm, and diameter 5.3 mm.
- No automotive standards or certifications applied to this component.
Product Description
The STMicroelectronics STTH5L06RL is a reliable single switching diode designed for electronic applications requiring high voltage and current capabilities. Featuring a maximum continuous forward current of 5 A and a peak reverse repetitive voltage rating of 600 V, this diode is tailored for switching roles in power electronics and discrete semiconductor circuits.
Its DO-201AD through-hole package facilitates easy PCB mounting and ensures robust mechanical stability. The maximum forward voltage of 1.05 V helps minimize power loss during operation while the diode withstands wide temperature ranges from -40°C up to 175°C, making it suitable for industrial, laboratory, and commercial electronics environments.
Additional specifications include a peak non-repetitive forward surge current of 110 A to handle transient conditions safely. The compact physical dimensions - 28.25 mm length, 4.4 mm width, 9.5 mm height, and 5.3 mm diameter - allow integration into dense circuit layouts.
This component lacks automotive certifications but remains a solid choice in rectifier diodes, Schottky diode, and switching diode applications within semiconductor assemblies. Diode features a maximum continuous forward current of 5 amperes.
Supports a peak reverse repetitive voltage of 600 volts. Design includes a single diode configuration with 2 pins for through-hole mounting. Maximum forward voltage drop is 1.05 volts ensuring efficient switching performance.
Operating temperature range from -40°C to 175°C allows for reliable industrial use. Peak non-repetitive forward surge current is 110 amperes for transient protection. Compact dimensions with length 28.25 mm, width 4.4 mm, height 9.5 mm, and diameter 5.3 mm.
No automotive standards or certifications applied to this component.
Used primarily in electronics, power, and semiconductor manufacturing and assembly processes, this switching diode from STMicroelectronics balances robust performance and stable operation for various industrial and commercial equipment.
Explore more semiconductor components and switching diodes by STMicroelectronics on EnvMart, trusted for quality and technical excellence.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 5 amperes.
This model supports a peak reverse repetitive voltage of 600 volts.
The maximum forward voltage drop is 1.05 volts, ensuring efficient switching performance.
The operating temperature range is from -40°C to 175°C, making it suitable for various environments.
The peak non-repetitive forward surge current is 110 amperes, which provides transient protection.
The diode has compact dimensions: 28.25 mm in length, 4.4 mm in width, 9.5 mm in height, and a diameter of 5.3 mm.
This model features a through-hole mounting type with a single diode configuration and 2 pins.
No, this component does not have automotive standards or certifications applied to it.
The diode is packaged in a DO-201AD type, which facilitates easy PCB mounting.
The peak reverse current is specified at 150 microamperes (μA).
This switching diode is primarily used in electronics, power, and semiconductor manufacturing and assembly processes.
The country of origin for this diode is India.
