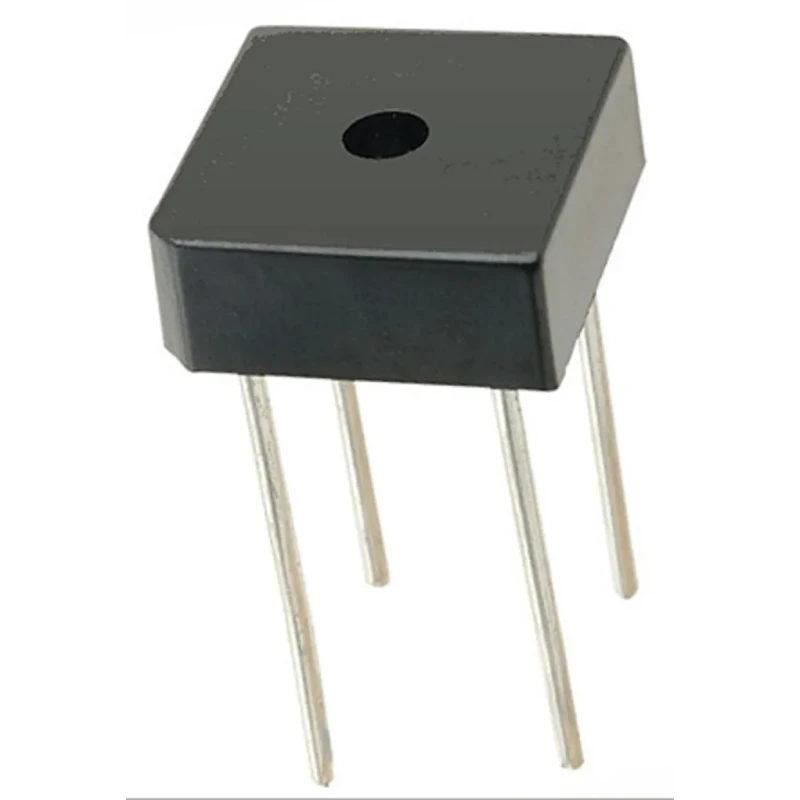

HY Electronic Corp Bridge Rectifier 600 V 175 A 4-Pin Single BR1006SG

HY Electronic Corp BR1006SG bridge rectifier is designed to efficiently convert alternating current (AC) to direct current (DC) with a peak reverse repetitive voltage rating of 600 V and a forward current capacity of 10 A. It features a 4-pin single-phase configuration housed in a BR-8 through-hole mounted package measuring 19.6 mm in length and width and 7.5 mm in height, ideal for power supply and power electronics applications.

This rectifier operates reliably in a wide temperature range from -55°C to 150°C, making it suitable for use in demanding industrial, HVAC, manufacturing, and electronic device circuits. It offers low forward voltage drop at 1.1 V which improves efficiency and reduces heat generation.

The device includes silver plated copper leads to ensure excellent electrical conductivity and resistance against corrosion over prolonged use. With a peak non-repetitive forward surge current of 175 A, it can handle transient overloads robustly.

The product is part of the BR series from HY Electronic Corp and is manufactured in China. Its rugged construction and reliable performance make it an essential component for industrial and electronic system designers seeking to convert AC to DC with consistent results.

Typical applications include power supplies, battery chargers, and motor control systems in industrial automation, renewable energy systems, and consumer electronics. The through-hole mount facilitates secure soldering and mechanical stability on printed circuit boards.

Compact BR-8 package with through-hole mount design for easy PCB integration. Maximum forward current rating of 10 A suitable for power electronics applications. Wide operating temperature range from -55°C to 150°C ensures durability under harsh conditions.

4-pin single-phase configuration providing efficient rectification in various circuits. Peak forward voltage of 1.1 V minimizes power loss in operation. Silver plated copper leads enhance conductivity and corrosion resistance.

Surge overload withstands up to 175 A peak current for transient handling. Dimensions 19.6 mm by 19.6 mm with 7.5 mm height fit standard designs. Explore more high-quality Bridge Rectifiers and electronic components at EnvMart for your industrial and electronic design needs.
