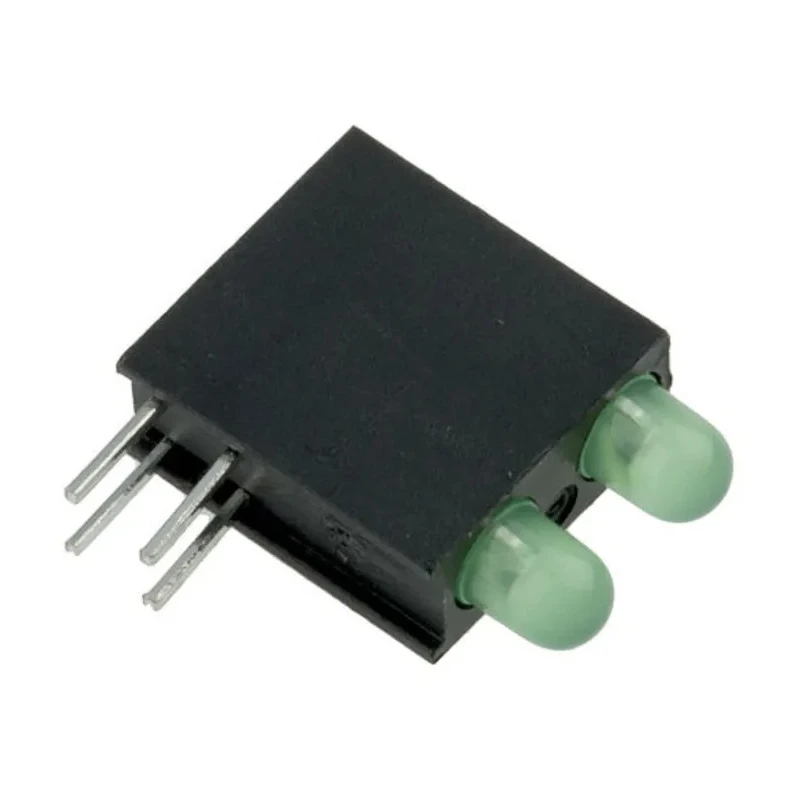

Dialight Green Right Angle PCB LED Indicator 3 mm, 2 LEDs, Through Hole Mount, 2.1 V, 80 mW Power Dissipation 553-0122F
Specifications
| Country of Origin | India |
|---|---|
| Brand | Dialight |
| Length | 11mm |
| Model | 553-0122F |
| Mount Type | Through Hole |
| Series | 553 |
| Number Of Leds | 2 |
| Maximum forward current | 10mA |
| Viewing angle | 45 ° |
| Sub Type | Single Colour |
| Power Dissipation | 80mW |
| Lens Colour | Green |
| Luminous Intensity | 16mcd |
| Standards/Approvals | RoHS, UL 94 V-0, MIL-STD-202F |
| LED Colour | Green |
| Number of Pins | 4 |
| Lens Finish | Tinted, Diffused |
| Minimum Supply Voltage | 2.1V |
| LED Material | GaAsP, GaP |
| Multicolour/Single Colour | Single Colour |
| LED Orientation | Right Angle |
| LED Size | 3 mm (T-1) |
Key Features
- Includes two 3 mm diameter green LEDs arranged in a right angle configuration.
- Through hole mount type ensures secure attachment to PCBs.
- Maximum forward current of 10 mA for efficient low power consumption.
- Luminous intensity of 16 mcd with a 45° viewing angle for clear indication.
- Constructed with GaAsP, GaP LED materials for durability and performance.
- Power dissipation rating of 80 mW to maintain safe operating parameters.
- Black plastic housing provides high contrast for indicator visibility.
- Complies with RoHS, UL 94 V-0, and MIL-STD-202F standards ensuring quality and safety.
Product Description
Dialight 553-0122F Green Right Angle PCB LED Indicator 3 mm combines two single colour green LEDs in a compact right angle black plastic housing, designed specifically for through hole PCB mounting applications. These indicators operate at a minimum supply voltage of 2.1 V and a maximum forward current of 10 mA, ensuring efficient performance with a luminous intensity of 16 mcd. The 3 mm (T-1) LEDs use GaAsP and GaP materials, providing durability and optimal light output.
The indicator features a 45-degree viewing angle and a power dissipation of 80 mW, making it ideal for use in electronic components requiring precise, reliable status indication. The black plastic housing offers a high-contrast background to enhance LED visibility on PCBs while maintaining a compact form factor with a length of 11 mm.
These PCB LED Indicators conform to rigorous standards including RoHS compliance for environmental safety, UL 94 V-0 flame retardancy, and MIL-STD-202F for vibration and shock resistance, ensuring robustness in demanding industrial and laboratory environments.
This product is well-suited for use in electronic manufacturing, instrumentation, and commercial equipment, offering reliable signalling and indicator functionality. Its right angle orientation and through-hole design facilitate easy integration into PCB layouts focused on space conservation.
Two 3 mm green LEDs configured in right angle housing. Through hole mount type for secure PCB attachment. Efficient operation at 2.1 V supply voltage and 10 mA max current. Luminous intensity rated at 16 mcd with 45° emission angle.
Black plastic housing improves contrast and visibility. Meets RoHS, UL 94 V-0 flame retardant, and MIL-STD-202F standards. Compact length of 11 mm suitable for space-sensitive designs. High reliability for industrial, commercial and lab applications.
Discover more quality indicator components in EnvMart's Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this model is 10 mA, ensuring efficient low power consumption.
This LED indicator has a luminous intensity of 16 mcd, providing clear visibility for status indication.
The minimum supply voltage required for this model is 2.1 V, allowing for efficient performance in various applications.
The viewing angle of the LEDs in this indicator is 45 degrees, facilitating effective visibility from various angles.
This model utilizes a through hole mount type, ensuring secure attachment to printed circuit boards (PCBs).
The LEDs are constructed with GaAsP and GaP materials, which contribute to their durability and light output performance.
The length of this model is 11 mm, making it suitable for space-sensitive designs in electronic applications.
This product complies with RoHS, UL 94 V-0, and MIL-STD-202F standards, ensuring quality and safety in various applications.
This model includes two LEDs arranged in a right angle configuration, enhancing its functionality in compact spaces.
The power dissipation rating for this model is 80 mW, maintaining safe operating parameters during use.
The lens color of the LEDs in this indicator is green, providing a clear and distinct indication.
This LED indicator is well-suited for use in electronic manufacturing, instrumentation, and commercial equipment, offering reliable signaling functionality.
