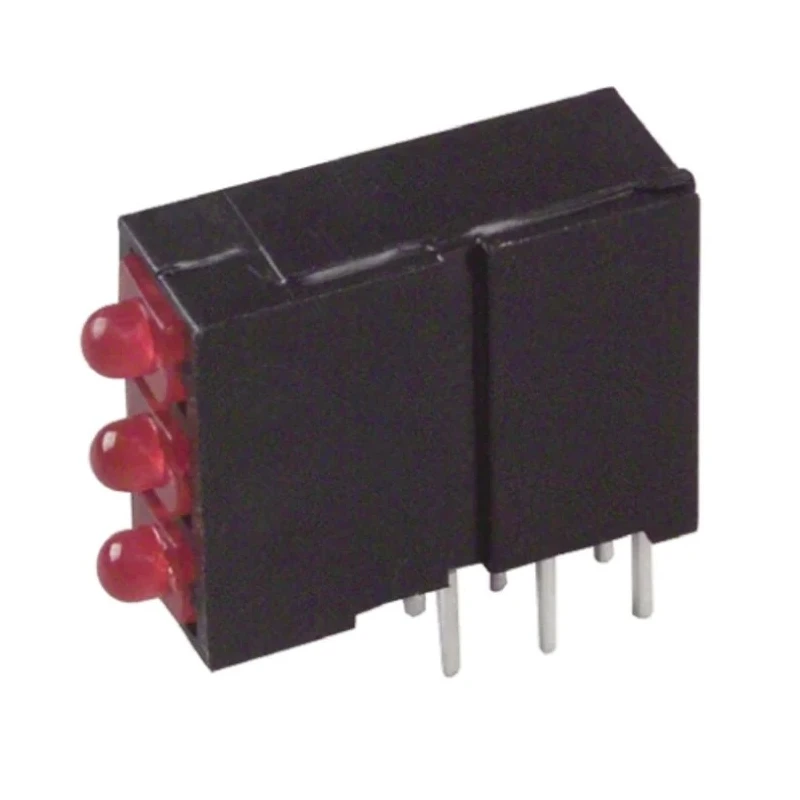

Dialight Red Right Angle PCB LED Indicator 5 mm (T-1 3/4), 3 LEDs 2.5 V Single Colour 570-0100-111F

Dialight 570-0100-111F Red Right Angle PCB LED Indicator is a tri-level PCB LED indicator designed for electronic components applications. Featuring three vertically stacked 2mm red LEDs within a robust black plastic housing, this indicator provides enhanced contrast and visual clarity. The LEDs are mounted at a right angle, facilitating through-hole installation on circuit boards.

Each LED operates at a minimum supply voltage of 2.5 V and supports a maximum forward current of 30mA, ensuring reliable performance with low power dissipation rated at 80mW. The diffused lens finish provides uniform light distribution, making it suitable for indicators and status signaling in industrial, manufacturing, and laboratory instrumentation.

The compact length of 14.62mm and a 38-degree viewing angle allow for versatile placement on printed circuit boards. The combination of GaP and GaAsP semiconductor materials ensures consistent red LED output with a luminous intensity of 12.6 millicandela. The indicator is compliant with RoHS directives, reflecting its environmental compliance and safety.

This through-hole mounted component features six pins for secure PCB connection and conforms to DIN 41494 standards, ensuring interoperability with related circuit board assemblies.

Applications for the Dialight 570-0100-111F include use in electronic control panels, machinery status indicators, HVAC units, commercial electronics, and various industrial equipment requiring reliable visual indication. The right angle design is ideal for space-constrained printed circuit assemblies.

The indicator features three vertically aligned 2mm LEDs in a black plastic housing for high contrast. It operates at a minimum voltage of 2.5 V with a maximum forward current of 30mA. The 5 mm diffused red lens ensures clear and uniform light emission.

Designed for through-hole PCB mounting with six pins for electrical connection. Viewing angle of 38 degrees for optimal visibility in various mounting configurations. Constructed from GaP and GaAsP materials for durable and consistent performance.

Complies with RoHS environmental standards for safe and responsible use. Luminous intensity rated at 12.6mcd suitable for indicator applications. Power dissipation of 80mW supports efficient operation. Explore our Electronics Components category for more PCB LED Indicators and related displays ideal for electronic manufacturing and instrumentation needs.
