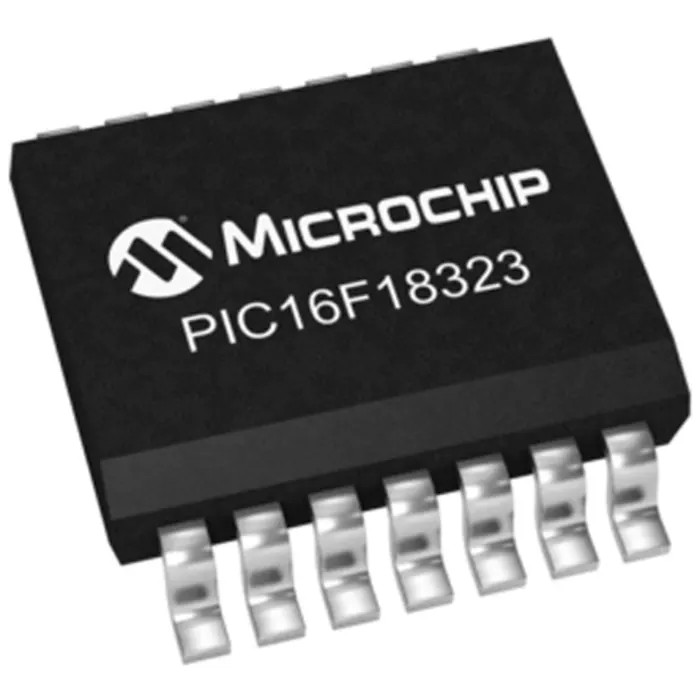

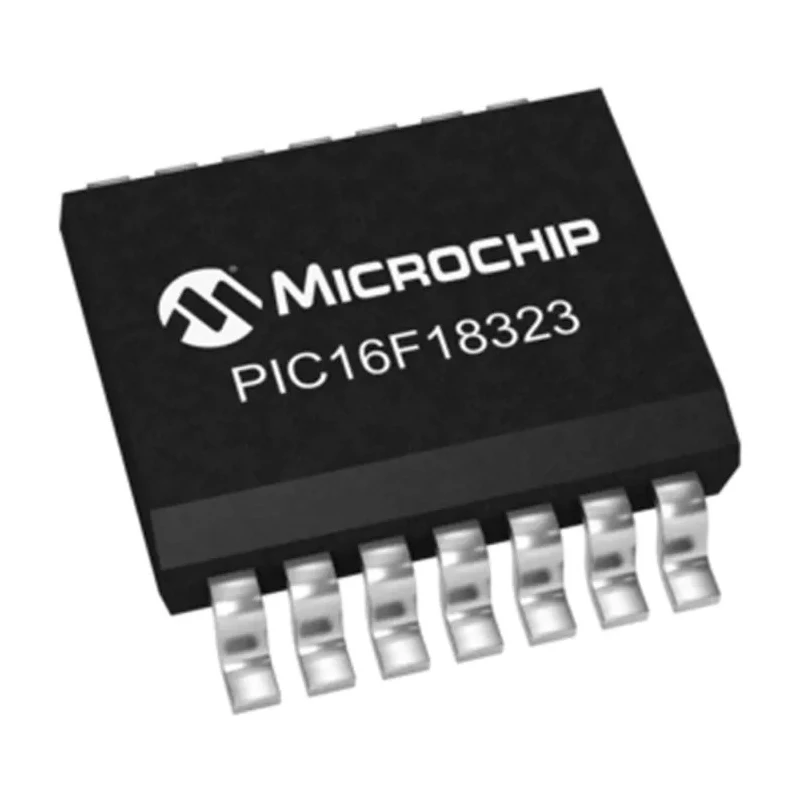

Microchip 8-bit PIC Microcontroller 32 MHz 3.5kB FLASH 14-Pin SOIC PIC16F18323-I/SL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 8.65mm |
| Model | PIC16F18323-I/SL |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 256bit |
| Operating Current | 8 μA @ 32 kHz 1.8 V (typical) |
| Interface Type | EUSART, I2C, SPI |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 3.5kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 2 |
| Number of Timers | 3 |
| Instruction Set Architecture | RISC |
| ADCs | 11 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 5 Bit |
| Watchdog Timer | 500 nA @ 1.8 V (typical) |
| Sleep Mode | 50 nA @ 1.8 V (typical) |
| Secondary Oscillator | 500 nA @ 32 kHz |
Key Features
- Built on 8-bit PIC architecture with RISC instruction set and 256bit RAM.
- Features multiple interfaces including EUSART, I2C, and SPI for versatile connectivity.
- Maximum supply voltage of 5.5 V and minimum supply voltage of 1.8 V enable wide range operation.
- Includes 25 programmable I/Os, 11 ADC channels (10-bit), and 1 x 5-bit DAC for analog functions.
- Operating temperature range from -40°C to 85°C with low power modes such as Sleep and Doze.
- Small dimension 8.65mm length, 3.9mm width, and 1.5mm height suitable for compact electronic designs.
- Power dissipation up to 800 mW and 3 timers, boosting control flexibility.
- Supports in-circuit programming and debugging with Peripheral Module Disable feature for power optimization.
Product Description
Microchip PIC16F18323-I/SL is an 8-bit PIC microcontroller featuring a maximum clock speed of 32 MHz and 3.5kB of FLASH program memory. Packaged in a compact 14-pin SOIC surface-mount form factor, it is designed for versatile industrial and embedded applications.
This microcontroller integrates Microchip's enhanced mid-range core based on RISC architecture, offering efficient processing with 49 instructions and a 16-level hardware stack. It supports essential serial interfaces including EUSART, I2C, and SPI, facilitating easy communication with other devices.
The device supports up to 25 programmable I/O pins, making it suitable for a wide range of control and sensing tasks. Its analog capabilities include 11 channels of 10-bit ADC, a 5-bit DAC, and two analog comparators, enabling analog signal processing needs common in sensor interfacing and control circuits.
Power management is optimized with features such as Peripheral Module Disable, Sleep, IDLE, and DOZE modes for minimal power consumption, with sleep current as low as 50 nA at 1.8 V, making it ideal for battery-powered and low-power designs.
Operating temperature ranges from -40°C to 85°C, ensuring robust performance in industrial environments. The microcontroller also includes 3 timers, watchdog timer, and in-circuit serial programming and debug support for flexible and reliable operation during development and deployment.
With dimensions of 8.65 mm length, 3.9 mm width, and 1.5 mm height, this device is well suited for compact layouts. Power dissipation is rated at 800 mW. Built on 8-bit PIC architecture with RISC instruction set and 256bit RAM.
Multiple communication interfaces including EUSART, I2C, and SPI. 11 channels 10-bit ADC and 5-bit DAC for analog interfacing. Low power modes with minimal current consumption for efficient energy use. Robust operating temperature range from -40°C to 85°C.
In-circuit programming and debugging support for flexible development. Compact 14-pin SOIC surface mount package. Suitable for industrial, automotive, and embedded electronic applications. Explore Microchip Microcontrollers on EnvMart for reliable industrial-grade embedded solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
This model has a program memory size of 3.5 kB, which is of FLASH type.
It supports multiple interfaces including EUSART, I2C, and SPI for versatile connectivity.
The microcontroller operates with a supply voltage range from 1.8 V to a maximum of 5.5 V.
The operating temperature range is from -40°C to 85°C, making it suitable for industrial applications.
This microcontroller features 25 programmable I/O pins.
The dimensions of this model are 8.65 mm in length, 3.9 mm in width, and 1.5 mm in height.
The maximum power dissipation for the PIC16F18323-I/SL is rated at 800 mW.
It supports 11 channels of 10-bit ADC for analog signal processing.
Yes, it includes low power modes such as Sleep, IDLE, and DOZE for energy efficiency.
This microcontroller is packaged in a compact 14-pin SOIC surface-mount form factor.
It supports in-circuit programming and debugging with a Peripheral Module Disable feature for power optimization.
