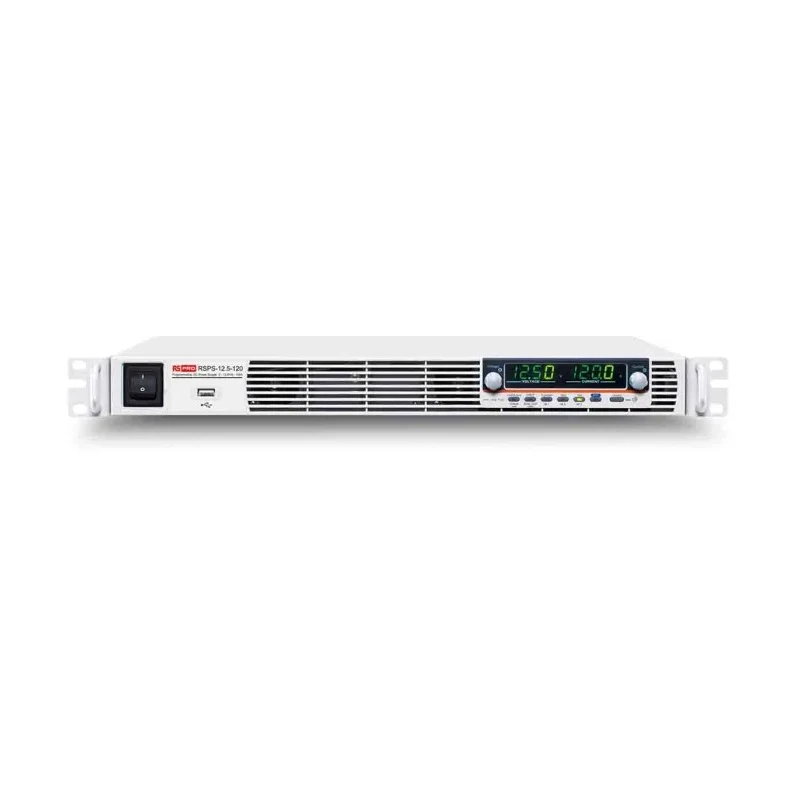

RS PRO Digital Bench Power Supply 1-Output 0 V to 12.5V 1.5 kW 120 A Max 201-0442
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Power | 1.5kW |
| Height | 43mm |
| Model | 201-0442 |
| Depth | 447mm |
| Width | 423mm |
| Output type | Switching DC Power Supply |
| Maximum Operating Temperature | 50°C |
| Voltage Rating | 6V/12.5V/20V/40V/60V available as part of this range of power supplies |
| Minimum Operating Temperature | 0°C |
| Plug Type | USB, RS232 |
| Interfaces | LAN, USB, RS-485 and RS-232 Interface giving greater flexibility for use |
| Number of outputs | 1 |
| Maximum Output Current | 120A |
| Standards/Approvals | RoHS |
| Maximum Output Voltage | 12.5V |
| Maximum Supply Voltage | 265V ac |
| Digital/Analogue | Digital |
| Supported Number of Displays | 1 |
| Minimum Output Voltage | 0V |
| Minimum Output Current | 0A |
| Output power rating | 1200W ∼ 1520W |
Key Features
- Compact 19-inch rack mount design optimizes storage space.
- Large backlit LCD panel displays output parameters clearly.
- CV/CC modes provide constant voltage and constant current operation.
- Integrated over-voltage and over-current protection safeguards connected devices.
- Multiple interfaces including USB, LAN, RS-485, and RS-232 enhance connectivity options.
- Supports series and parallel operation for expanded voltage or current output.
- Adjustable slew rate enables precise control of voltage or current transitions.
- Operating temperature range from 0°C to 50°C for reliable industrial use.
Product Description
RS PRO 201-0442 digital Bench Power Supply is a high-performance programmable switching DC power supply designed for versatile industrial, laboratory, and manufacturing applications. The unit offers a single output adjustable from 0 V to 12.5 V, with a maximum output current of 120 A and power rating of 1.5 kW, supporting demanding test and measurement requirements.
This power supply features a compact 19-inch rack mount size, allowing efficient use of workspace without sacrificing capability. Its large backlit LCD panel enables operators to easily monitor output parameters and system status during operation.
Equipped with constant voltage (CV) and constant current (CC) modes, it is especially useful for applications involving batteries and LEDs. The device includes reliable protection mechanisms such as over-voltage protection (OVP) and over-current protection (OCP), which shut down output safely if unsafe conditions arise.
Connectivity is facilitated via built-in USB, RS-232, RS-485, and LAN interfaces to allow remote control and integration with automated test setups. Moreover, the power supply supports series and parallel operation (up to 2 units in series or 4 units in parallel) to achieve higher voltages or currents where required.
The adjustable slew rate makes it possible to control the rise and fall times of voltage or current transitions, aiding in device characterization and testing under dynamic conditions. Operating temperature range is 0°C to 50°C, ensuring robust performance in many industrial environments.
Compact 19-inch rack mount design provides space-efficient deployment. Backlit LCD panel for clear parameter visualization. CV/CC operation modes for versatile power delivery. OVP and OCP protections maintain device safety.
USB, LAN, RS-485, and RS-232 interfaces for flexible connectivity. Series and parallel operation expand output capacity. Adjustable slew rate for controlled voltage/current transitions. Wide operating temperature range supports industrial use.
High power density ensures efficiency and performance. Programmable functionality ideal for testing and manufacturing.
This RS PRO power supply meets RoHS standards and originates from Taiwan, Province Of China. It is a reliable choice for engineers and technicians requiring precise, programmable DC power supply solutions in measurement, laboratory, and production line environments.
Explore more premium test and measurement instruments and accessories within the RS PRO range for your professional needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this power supply is 12.5V.
This model has a maximum output current of 120A.
The dimensions of this unit are 423mm in width, 447mm in depth, and 43mm in height.
It features USB, LAN, RS-485, and RS-232 interfaces for enhanced connectivity options.
The power rating is 1.5 kW, which allows it to handle demanding applications.
The operating temperature range is from 0°C to 50°C.
Yes, it includes over-voltage protection (OVP) and over-current protection (OCP) to safeguard connected devices.
Yes, it supports series and parallel operation, allowing for expanded voltage or current output.
This model is classified as a switching DC power supply.
The minimum output voltage is 0V.
It meets RoHS standards, ensuring compliance with environmental regulations.
It is suitable for versatile industrial, laboratory, and manufacturing applications, particularly for testing and measurement.
