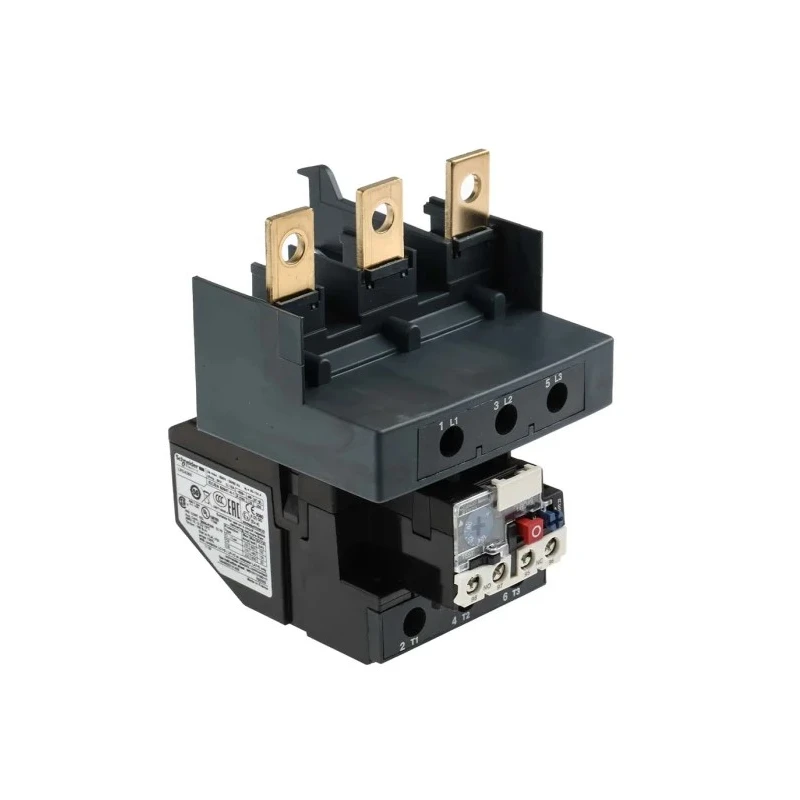

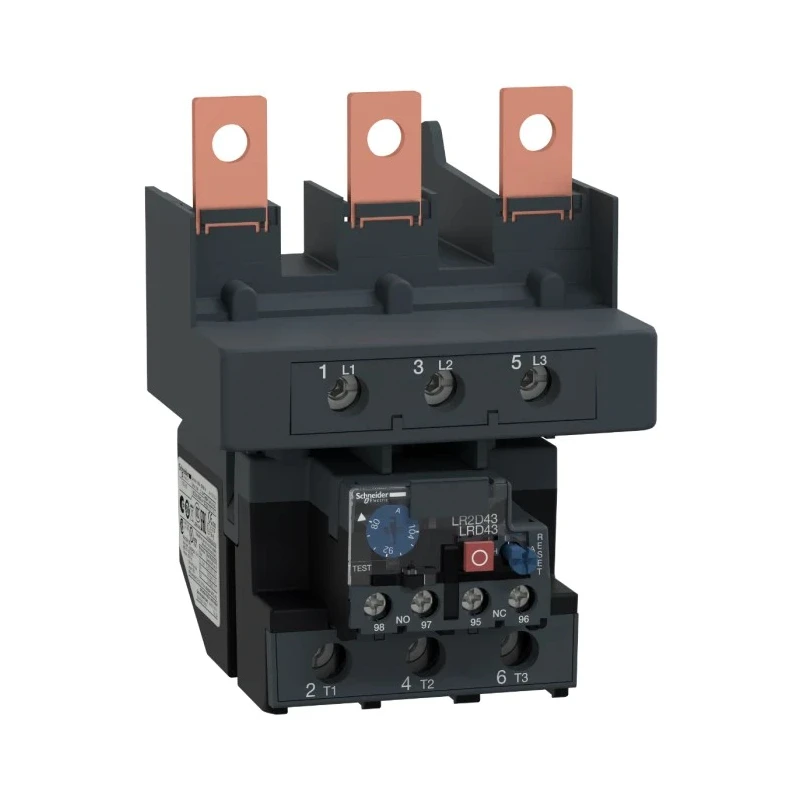

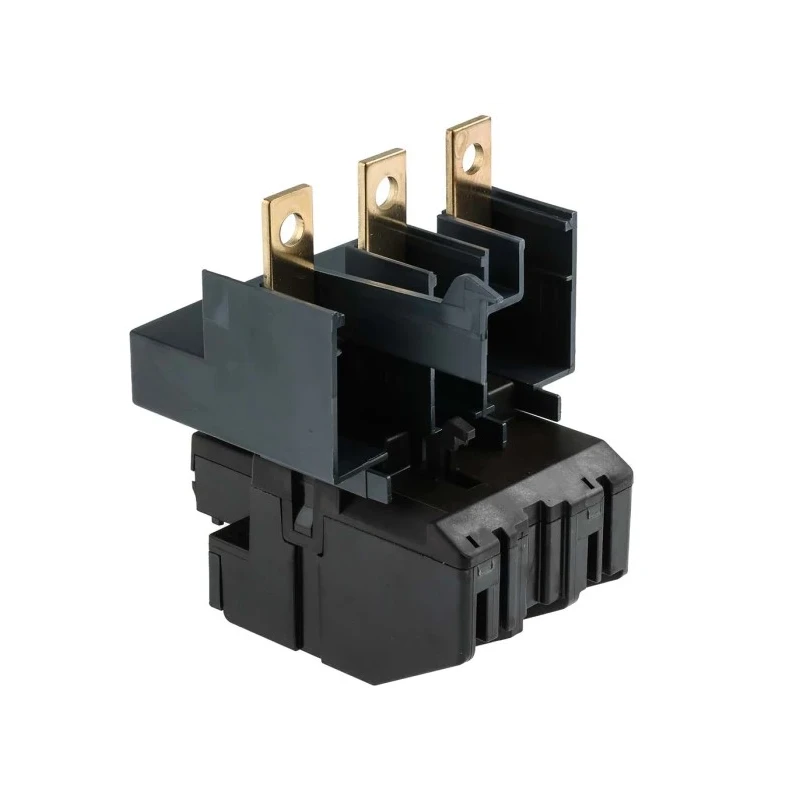

Schneider Electric Overload Relay, 1 NO/1 NC, 5A Contact Rating, Direct Mount, Adjustable Current 80 - 104 A, IP20 LRD4365

Schneider Electric LRD4365 overload relay is a high-quality bi-metallic thermal overload relay from the LRD series, specifically engineered for motor protection in industrial control panels. Designed to work seamlessly with TeSys D contactors, this relay offers reliable motor overload protection ensuring longevity and safety of your equipment.

The relay features a 1 normally open (NO) and 1 normally closed (NC) contact configuration with a 5 ampere contact rating, facilitating precise control and signaling for motor circuit applications. Its direct mounting capability simplifies installation and maintenance in complex industrial setups.

This model supports an adjustable current range of 80 to 104 amperes, providing adaptability to various motor sizes and load conditions. With screw-type terminals, it guarantees robust and secure electrical connections minimizing contact failures.

The reset mechanism includes both automatic and manual options, allowing operators to choose the best fit for their applications. The IP20 ingress protection rating makes it suitable for industrial environments where protection against solid particles is required.

Operating reliably between -20 degrees Celsius to +60 degrees Celsius, this overload relay is compliant with recognized international standards such as UL 60947-4-1, UL 60947-5-1, EN/IEC 60947-4-1, EN/IEC 60947-5-1, and others, ensuring safety and performance.

Direct mount design ensures easy installation with TeSys D contactors. Adjustable current range from 80 to 104 A accommodates different motor loads. Equipped with screw terminals for secure electrical connections. Features both automatic and manual reset methods for operational flexibility.

IP20 rated for protection against solid objects. Operates reliably in a temperature range from -20°C to 60°C. Compliance with multiple standards including UL 60947 and EN/IEC 60947 series ensures high safety and quality.

Includes 2 auxiliary contacts for control and signaling functions. Compact dimensions: Width 135 mm, Length 110 mm, Depth 132 mm. Supply voltage rated at 690V AC suitable for industrial environments.

This Overload Relay is an essential component in industrial, manufacturing, HVAC, and automation control systems, providing dependable motor protection and enhancing operational safety.
