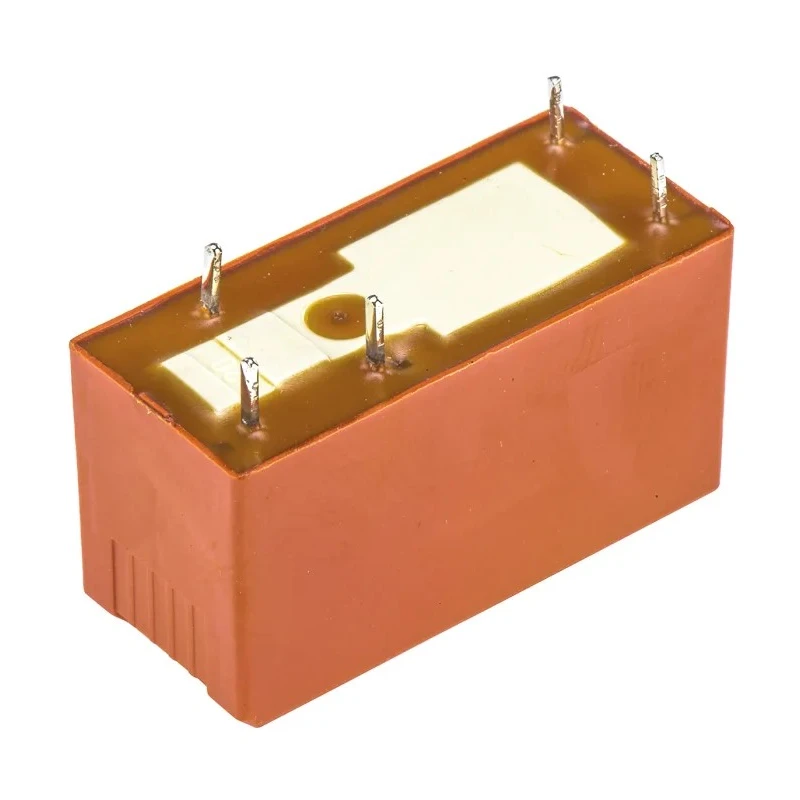

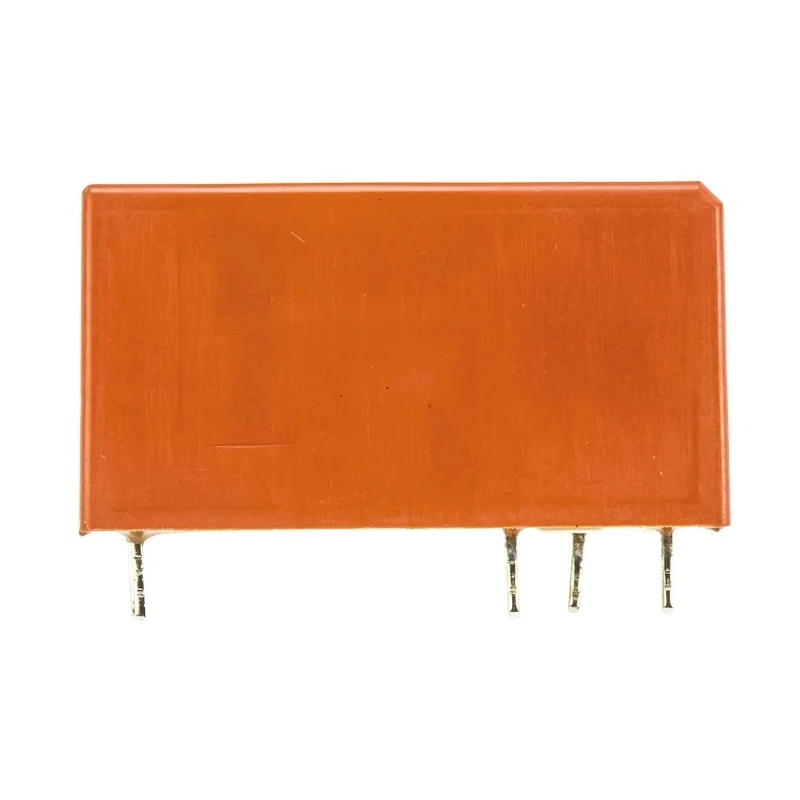

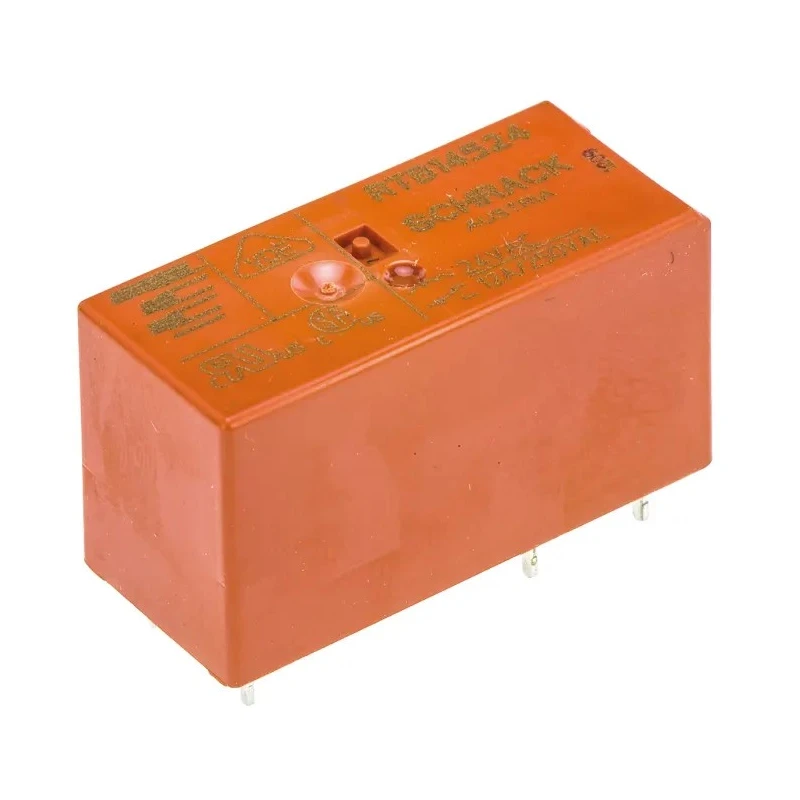

TE Connectivity PCB Power Relay 24V ac Coil 12A Switching Current SPDT RTB14524
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTB14524 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | RT1 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Solder |
| Standards/Approvals | IEC 61810, RoHS |
| Coil Resistance | 350Ω |
| Coil Voltage | 24V ac |
| Switching AC Voltage | 400V ac |
| Coil Power | 500mW |
Key Features
- The relay is designed for PCB mounting with solder terminal type for secure connections.
- It operates within a temperature range of -40°C to 70°C ensuring reliable performance under diverse conditions.
- The relay coil has a resistance of 350 ohms and coil power consumption of 500 mW, supporting efficient operation.
- This model supports switching AC voltages up to 400V AC and has a maximum switching power of 3 kVA.
- Constructed with gold-plated contacts for enhanced conductivity and long service life.
- Compact dimensions of 29mm length, 12.7mm width, and 15.7mm height facilitate easy integration into devices.
- The relay complies with IEC 61810 and RoHS standards, ensuring safety and environmental compliance.
- Manufactured in Austria with RT1 series features including 3.5mm pinning suitable for flux-proof applications.
Product Description
TE Connectivity RTB14524 PCB Power Relay is engineered for industrial and domestic applications requiring reliable switching of high currents on printed circuit boards. Featuring a 24V AC coil voltage and a 12A switching current capacity, this SPDT relay ensures robust performance in automation, security lighting, heating systems, interface modules, and various control systems.
The relay's coil resistance of 350 ohms and coil power rating of 500 mW contribute to efficient energy use while delivering dependable actuation. Its maximum operating temperature of 70°C and minimum of -40°C allow use in demanding environments.
Designed to switch AC voltages up to 400V and switching power up to 3 kVA, it is suitable for a broad range of industrial electrical applications. Gold-plated contacts provide superior conductivity and corrosion resistance, ensuring longevity and consistent electrical contact quality.
With compact dimensions (29mm x 12.7mm x 15.7mm) and a solder terminal type, the relay is ideal for PCB mounting and integration into automated machinery and electronic assemblies. It belongs to the RT1 series, known for 3.5mm pin spacing and flux-proof design, enhancing durability and reliability.
Compliant with IEC 61810 and RoHS standards, this relay meets international safety, quality, and environmental regulations. Manufactured in Austria, it reflects TE Connectivity's commitment to quality and advanced engineering.
The relay is suitable for industrial automation, HVAC controls, domestic appliances, and security systems. Applications include switching loads in interface circuits, lighting control, and heating regulation. Its compact design allows incorporation in space-constrained PCB layouts.
Gold-plated contacts improve signal integrity and reduce resistance. Flux-proof pinning protects against soldering residues and environmental contaminants. Reliable coil operation minimizes energy consumption in control circuits.
Compliance with international standards ensures dependable, safe operation in critical systems.
Explore EnvMart's extensive range of industrial relays and power control devices for advanced automation and electrical solutions. Discover TE Connectivity products for trusted performance and innovation.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a maximum switching current of 12A.
The coil voltage for this model is 24V AC.
The dimensions of this relay are 29mm in length, 12.7mm in width, and 15.7mm in height.
It can switch AC voltages up to 400V AC.
The coil resistance is 350 ohms.
The coil power consumption is 500 mW.
This relay is designed for PCB mounting with a solder terminal type.
The relay operates within a temperature range of -40°C to 70°C.
The contacts are made of gold-plated material for enhanced conductivity.
It complies with IEC 61810 and RoHS standards.

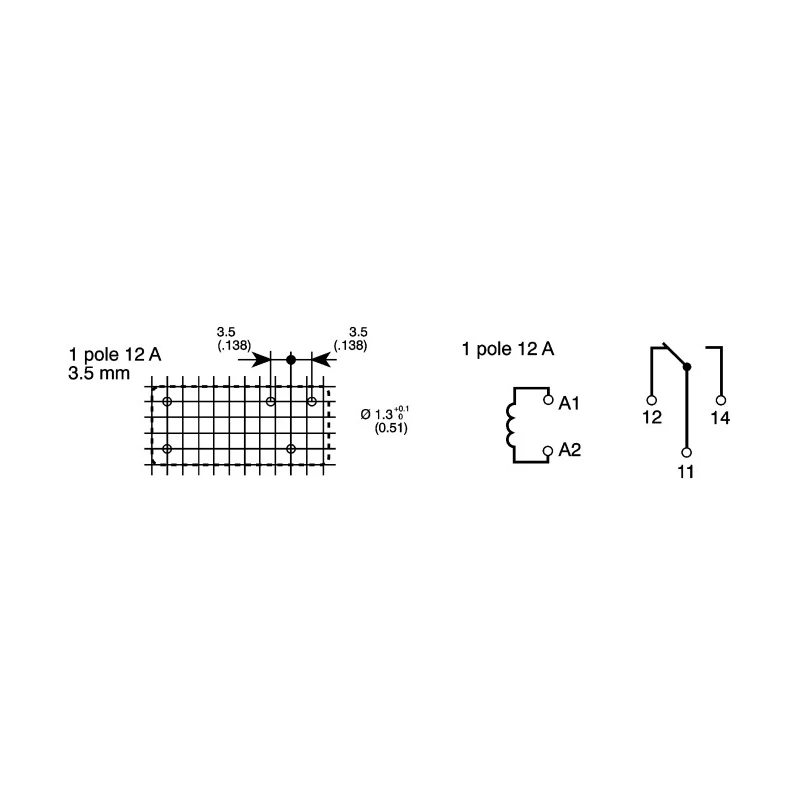

This relay belongs to the RT1 series, which features 3.5mm pin spacing suitable for flux-proof applications.
This relay is suitable for industrial automation, HVAC controls, domestic appliances, and security systems.
