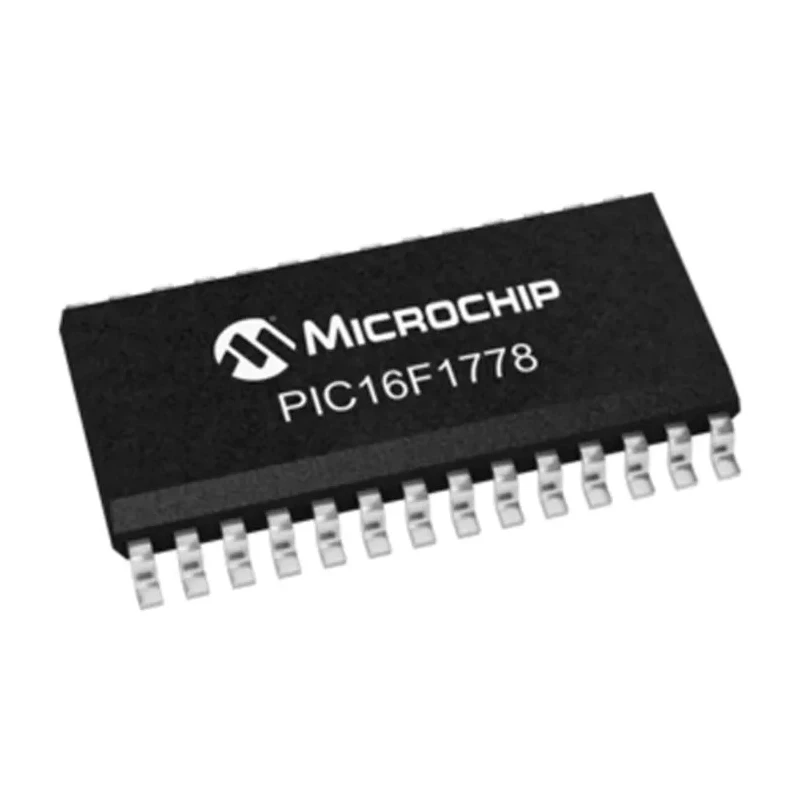

Microchip PIC16F1778-I/SO 8-Bit PIC Microcontroller 32 MHz 28kB FLASH 28-Pin SOIC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.35mm |
| Length | 17.9mm |
| Model | PIC16F1778-I/SO |
| Width | 7.5mm |
| Mount Type | Surface |
| Series | PIC16 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Ram size | 2kB |
| Standards/Approvals | RoHS |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2.3V |
| Device Core | PIC |
| Program Memory Size | 28kB |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 6 |
| Number of Timers | 8 |
| Instruction Set Architecture | RISC |
| ADCs | 17 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Enhanced Mid-Range Core with 8 MIPS maximum CPU speed.
- 28 kB Flash program memory and 2 kB RAM.
- Operates between 2.3 V and 5.5 V supply voltage.
- Includes 25 programmable I/O pins for flexible interfacing.
- Equipped with 8 timers and multiple digital peripherals.
- Operational temperature range from -40°C to 85°C.
- Compact 28-pin SOIC surface-mount package.
- Supports enhanced serial communications via USART, SPI, and I2C.
Product Description
Microchip PIC16F1778-I/SO is an 8-bit PIC microcontroller designed with Microchip's Enhanced Mid-Range Core architecture. Featuring a maximum CPU speed of 32 MHz and 28 kB FLASH memory, it offers robust performance for a wide range of industrial and embedded control applications.
This microcontroller operates with a supply voltage between 2.3 V and 5.5 V and a maximum power dissipation of 800 mW. It provides 25 programmable I/O pins allowing for flexible connectivity. Its robust analog subsystem includes 17 channels of 10-bit ADCs, six high-speed comparators, and multiple operational amplifiers, making it suitable for precision analog measurements.
Additional features include eight timers for precise timing control, three or four Digital-to-Analog Converters (DAC), and complementary output generators suitable for power management and signal processing applications. The device supports enhanced serial communications via USART, SPI, and I2C protocols compatible with RS-232, RS-485, and LIN.
The PIC16F1778-I/SO microcontroller is housed in a surface-mount 28-pin SOIC package with compact dimensions making it ideal for space-constrained designs. It complies with RoHS standards ensuring environmental safety and supports extreme temperature ranges (-40°C to 85°C) necessary for automotive and industrial environments.
This microcontroller is particularly suited for industrial controls, power management, automotive electronics, and embedded system designs requiring reliable, low-power, and multifunctional control units.
Enhanced Mid-Range Core with 49 instructions and 16 stack levels. Integrated peripheral set including ADCs, DACs, comparators, and PWM modules. Peripheral Pin Select (PPS) provides flexible pin assignment for communication interfaces.
eXtreme Low-Power (XLP) features for energy-efficient operation. Industrial, automotive, and embedded control applications compatibility. Explore the Microcontroller category at EnvMart for advanced Microcontrollers and embedded control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PIC16F1778-I/SO microcontroller has a maximum clock frequency of 32 MHz.
It features a program memory size of 28 kB FLASH.
This microcontroller includes 25 programmable I/O pins for flexible interfacing.
The operating temperature range is from -40°C to 85°C.
It operates with a supply voltage between 2.3 V and 5.5 V.
It supports enhanced serial communications via USART, SPI, and I2C protocols.
This microcontroller is housed in a surface-mount 28-pin SOIC package.
The device includes eight timers for precise timing control.
It has a RAM size of 2 kB.
The dimensions are 17.9 mm in length, 7.5 mm in width, and 2.35 mm in height.
It complies with RoHS standards, ensuring environmental safety.
The PIC16F1778-I/SO includes six high-speed analog comparators.
