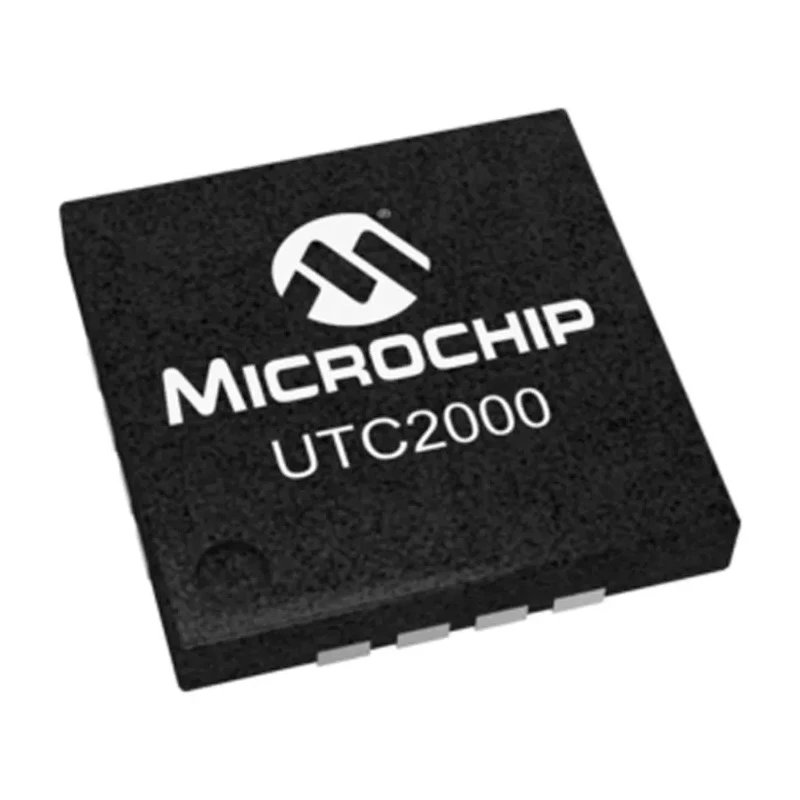

Microchip Controller IC 1-Channel USB Type-C 4.5V to 5.5V 16-Pin QFN UTC2000

Microchip UTC2000 controller IC is designed to facilitate easy implementation of USB Type-C connectivity in new and existing electronic applications. With a compact 16-pin QFN surface mount package and a length of 3 mm, this device supports single-channel USB Type-C control with an operating voltage ranging from 4.5 V to 5.5 V, ensuring compatibility with standard USB power profiles.

The controller manages orientation detection for USB Type-C cables and provides powered cable detection with supply control. It supports legacy USB charging profiles including 1.5 A and advanced profiles supporting 3 A at 5 V delivering up to 15 W power. With ESD protection, it ensures enhanced durability in diverse operating environments spanning from 0°C to 70°C.

This device is suitable for both upstream and downstream USB port designs, enabling a smooth transition from USB Type-A and USB Type-B interface ports. Additionally, the UTC2000 complies with USB 3.1 SuperSpeed+ (10 Gbit/s), USB 3.0 SuperSpeed (5 Gbit/s), and USB 2.0 Hi-Speed (480 Mbps) data signaling standards, making it a versatile interface IC for modern electronics.

Supports USB Type-C cable insertion orientation detection providing precise cable connection management. Facilitates safe power delivery and supply management adhering to USB Type-C 1.1 power specifications. Compact 16-pin QFN package enables surface mounting for space-saving PCB layouts.

Compatible with USB Type-C Audio Adapter standards, expanding its utility in audio devices. Integrates ESD protection to safeguard against electrostatic discharge damage in sensitive circuits. Supports legacy USB charging profiles enhancing backward compatibility.

Operates reliably in industrial and consumer electronics environments with wide temperature tolerance. Designed for seamless integration in power management and interface controller applications.

This Microchip controller IC is ideal for use in industrial, consumer electronics, computer peripherals, and communication equipment requiring robust USB Type-C interface management. Clients can improve production efficiency with components ready for automated assembly due to its surface mount packaging and industry compliance.
