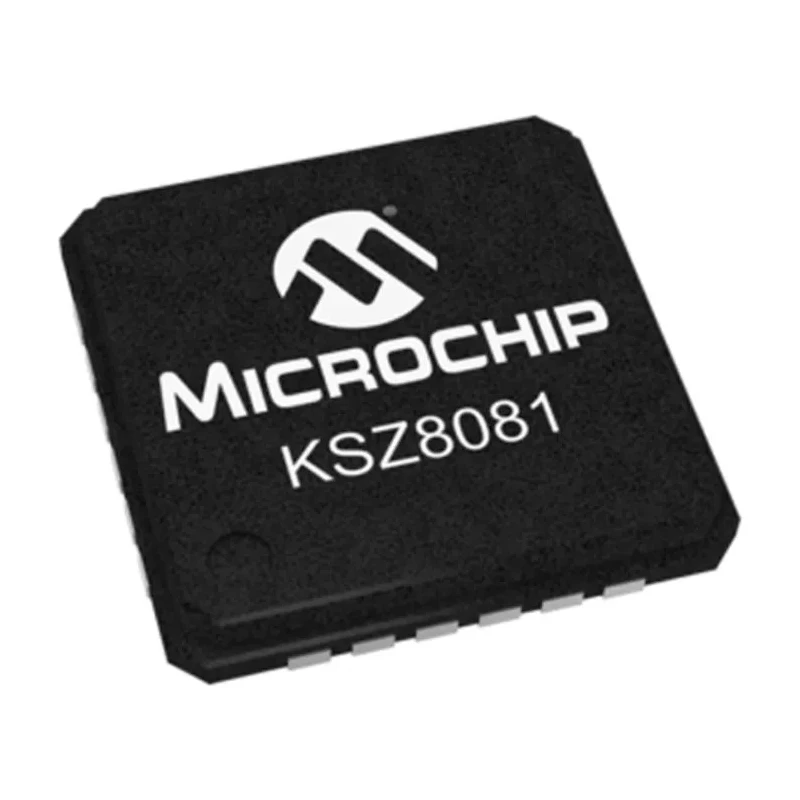

Microchip 24-Pin QFN Ethernet Transceiver 3.3 V 100 Mbps RMII 100Base-TX 10Base-T KSZ8081RNACA-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 800μm |
| Length | 4mm |
| Model | KSZ8081RNACA-TR |
| Width | 4mm |
| Mount Type | Surface |
| Number Of Ports | 1 |
| Maximum Operating Temperature | 70°C |
| Package Type | QFN |
| Sub Type | Fast Ethernet PHY |
| Minimum Operating Temperature | 0°C |
| Communication Mode | 100Base-TX, 10Base-T |
| Interface Type | RMII |
| Standards/Approvals | Pb-Free |
| Pin Count | 24 |
| Maximum Supply Voltage | 3.3V |
| Supply Current | 47mA |
| Maximum Data Rate | 100Mbps |
| Loopback Mode | Local (Digital) Loopback, Remote (Analogue) Loopback |
| Standard Supported | IEEE 802.3 |
| Number of Transceivers | 1 |
| Micrel , 1-Channel Physical Layer Transceiver 24-Pin QFN, KSZ8081RNACA TRBrand | Micrel |
Key Features
- Comes in a 24-pin QFN package for surface mounting.
- Operates at a supply voltage of 3.3 V with a maximum supply current of 47 mA.
- Supports IEEE 802.3 standards for Ethernet communication.
- Features local digital and remote analogue loopback modes for testing and diagnostics.
- Operating temperature range from 0°C to 70°C ensuring reliability in typical industrial environments.
- Compact size of 4 mm length, 4 mm width, and 800 μm height for space-efficient PCB design.
- Single-port transceiver suitable for fast Ethernet physical layer applications.
Product Description
Microchip KSZ8081RNACA-TR is a 24-pin QFN Ethernet transceiver designed for fast Ethernet applications requiring data rates up to 100 Mbps. Operating at a stable supply voltage of 3.3 V and a supply current of 47 mA, this surface-mount device supports RMII interface and complies with IEEE 802.3 standards, ensuring compatibility with established Ethernet systems.
The transceiver supports communication modes including 100Base-TX and 10Base-T, making it suitable for a range of Ethernet network speeds and configurations. Its built-in local digital and remote analogue loopback modes facilitate easy testing and troubleshooting in industrial and commercial networking environments.
With a small form factor of 4 mm by 4 mm and a height of 800 μm, the KSZ8081RNACA-TR allows designers to optimize PCB space while maintaining reliable connectivity. The device operates reliably in temperatures ranging from 0°C to 70°C, typical for a variety of industrial and electronic equipment conditions.
This Ethernet transceiver is an ideal choice for use in industrial automation, networking equipment, and communication devices requiring fast Ethernet physical layer solutions. The device is manufactured under RoHS compliance ensuring environmentally responsible production.
Comes in 24-pin QFN package type with 1 transceiver and 1 port. Supports local digital and remote analogue loopback modes. Compatible with RMII interface and IEEE 802.3 standards. Operates at supply voltage of 3.3 V with current consumption of 47 mA.
Operating temperature range from 0°C to 70°C for industrial applications. Compact dimensions: 4 mm length, 4 mm width, 800 μm height. Explore more from Microchip and similar fast Ethernet Transceivers at EnvMart for reliable and high-performance networking solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum data rate of 100 Mbps, suitable for fast Ethernet applications.
It operates reliably within a temperature range of 0°C to 70°C, making it suitable for typical industrial environments.
This unit is packaged in a 24-pin QFN (Quad Flat No-lead) format for surface mounting.
It supports both 100Base-TX and 10Base-T communication modes, allowing for flexibility in network configurations.
The transceiver operates at a supply voltage of 3.3 V with a maximum supply current of 47 mA.
Yes, it features both local digital and remote analogue loopback modes for testing and diagnostics.
It has compact dimensions of 4 mm in length, 4 mm in width, and a height of 800 μm.
Yes, it complies with IEEE 802.3 standards for Ethernet communication and is Pb-free.
This model features a single-port transceiver, making it suitable for specific applications requiring one connection point.
The transceiver is manufactured in India.
It utilizes the RMII (Reduced Media-Independent Interface) for connectivity, ensuring compatibility with various systems.
It is designed for use in industrial automation, networking equipment, and communication devices that require fast Ethernet physical layer solutions.
