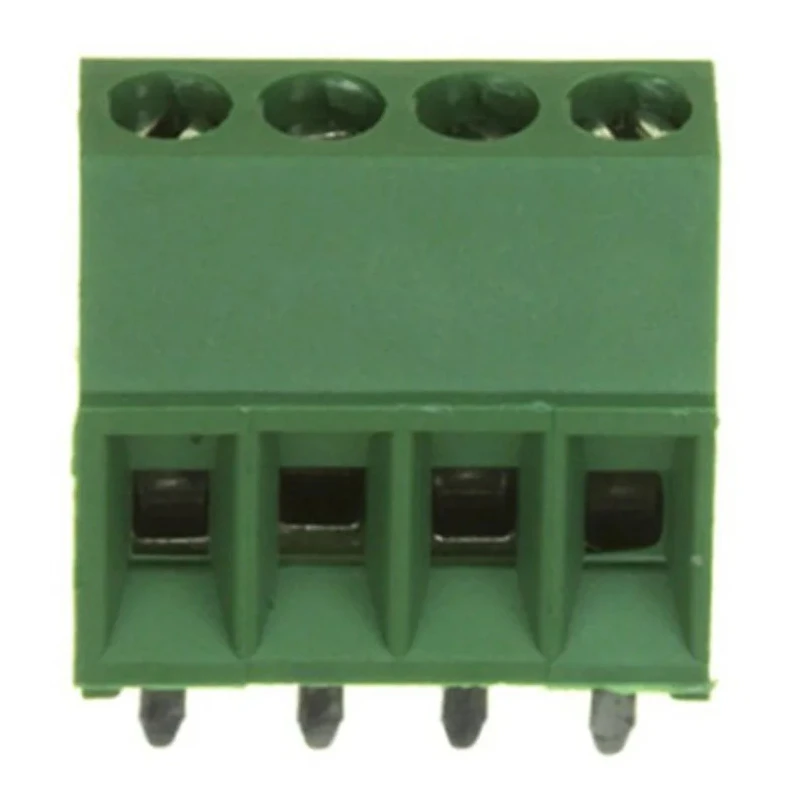

TE Connectivity Buchanan Series PCB Terminal Block, 4-Contact, 2.54 mm Pitch, 1 Row 282834-4

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Buchanan Series PCB Terminal Block, 4-Contact, 2.54 mm Pitch, 1 Row 282834-4

Name: TE Connectivity Buchanan Series PCB Terminal Block, 4-Contact, 2.54 mm Pitch, 1 Row 282834-4
Brand: TE Connectivity
SKU: 272817
Price: 20.22 USD
Availability: InStock



Category Connectors Brand TE Connectivity Condition New

Specifications

Country of Origin	Italy
Voltage	150V ac
Brand	TE Connectivity
Colour	Green
Orientation	Vertical
Current	10A
Length	10.62mm
Model	282834-4
Depth	10mm
Width	6.5mm
Housing Material	Polyamide
Series	Buchanan
Number of Rows	1
Pitch	2.54mm
Number of Contacts	4
Connector Gender	Male
Minimum Wire Size mm²	0.05mm²
Maximum Wire Size mm²	1.3mm²
Minimum Wire Size AWG	16AWG
Maximum Wire Size AWG	30AWG

Key Features

Compact design with 2.54 mm pitch spacing between contacts.
Accepts wire sizes ranging from 0.05 mm² (30 AWG) to 1.3 mm² (16 AWG).
Constructed with green polyamide housing for durability and insulation.
Supports a current rating of up to 10 A at 150 V AC.
Features a vertical orientation with side wire entry.
Equipped with M1.6 nickel-plated brass screw terminals and tin-plated contacts.
Designed as a male connector suitable for through-hole soldering.
Manufactured in Italy, ensuring high quality and standards compliance.

Product Description

TE Connectivity 282834-4 PCB Terminal Block is a 4-contact, 2.54 mm pitch, 1-row pluggable terminal block designed for compact and reliable electronic connections on printed circuit boards. It features a robust green polyamide 6.6 GF housing that provides excellent insulation and mechanical stability. This terminal block incorporates a side wire entry with M1.6 nickel-plated brass screw terminals and tin-plated contacts, offering a secure and corrosion-resistant connection suitable for various wire sizes from 0.05 mm² to 1.3 mm² (30 to 16 AWG).

Rated for currents up to 10 A and voltages up to 150 V AC, the device supports vertical orientation mounting and through-hole soldering. Its precise dimensions, including 10.62 mm length, 6.5 mm width, and 10 mm depth, enable integration into dense PCB layouts. Manufactured in Italy, the Buchanan series meets stringent quality expectations and is ideal for electronics manufacturing, industrial automation, control systems, and power distribution modules in commercial and industrial equipment.

The rising cage clamp design ensures reliable wire retention and ease of use during assembly. This terminal block offers enhanced performance in industrial, manufacturing, and electronic applications where durable, modular, and serviceable connections are essential.

Compact 4-contact terminal block with 2.54 mm pitch for PCB mounting. Accepts wide wire range from 0.05 to 1.3 mm² ensuring versatile connectivity. Durable polyamide housing with corrosion-resistant nickel-plated brass terminals.

Rated 10 A current and 150 V AC voltage for robust electronic circuits. Vertical orientation and side wire entry facilitate flexible PCB designs. Manufactured in Italy maintaining high quality and reliability standards. Discover the full TE Connectivity range and related pluggable terminal blocks at EnvMart for your industrial and electronic component needs.
