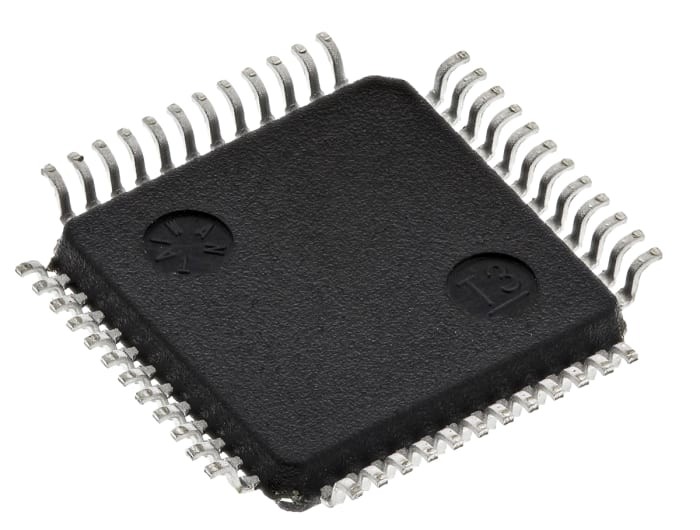

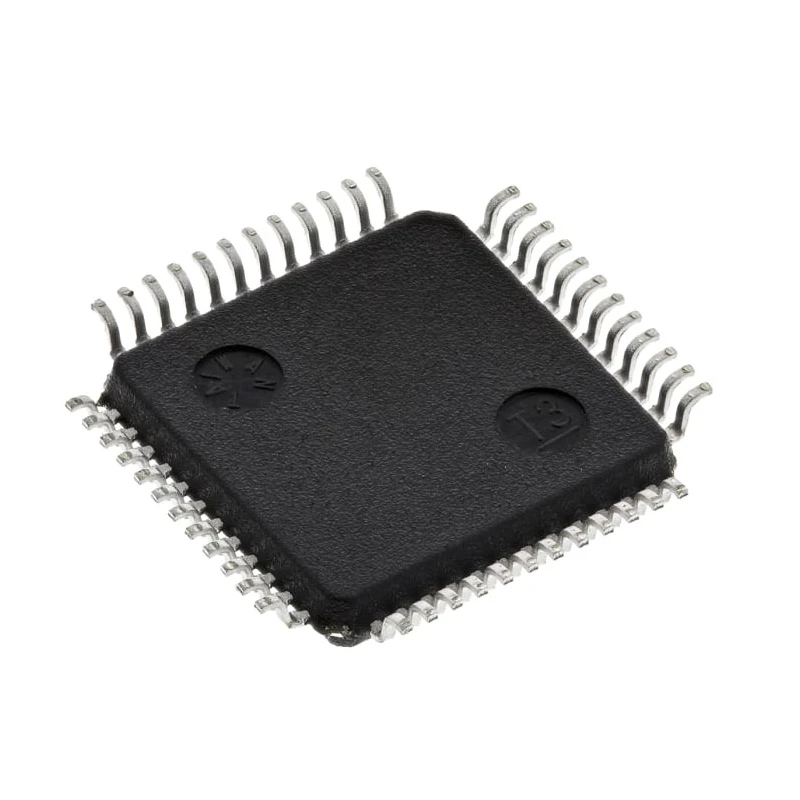

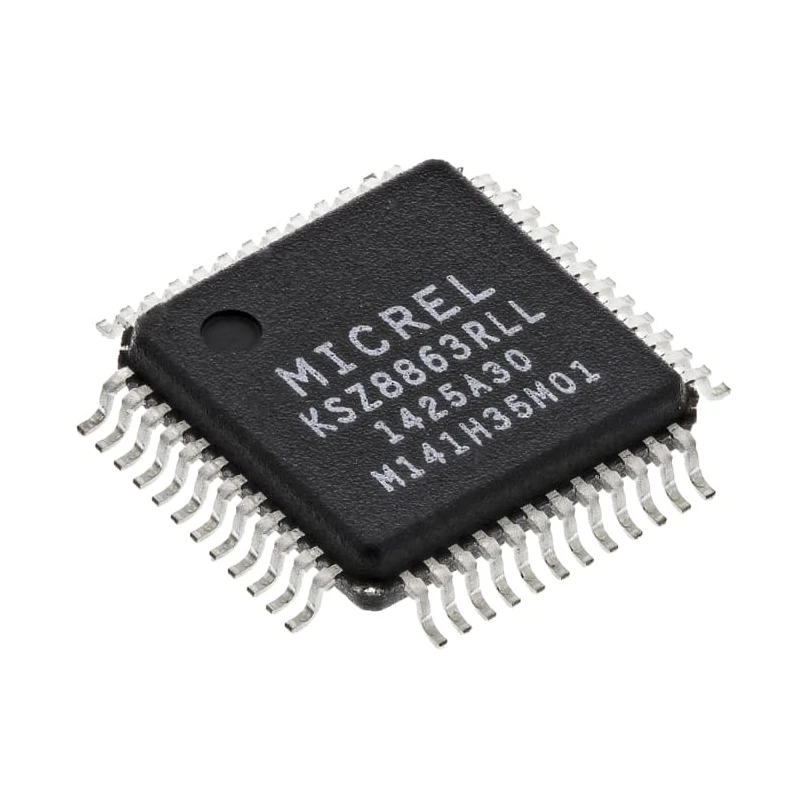

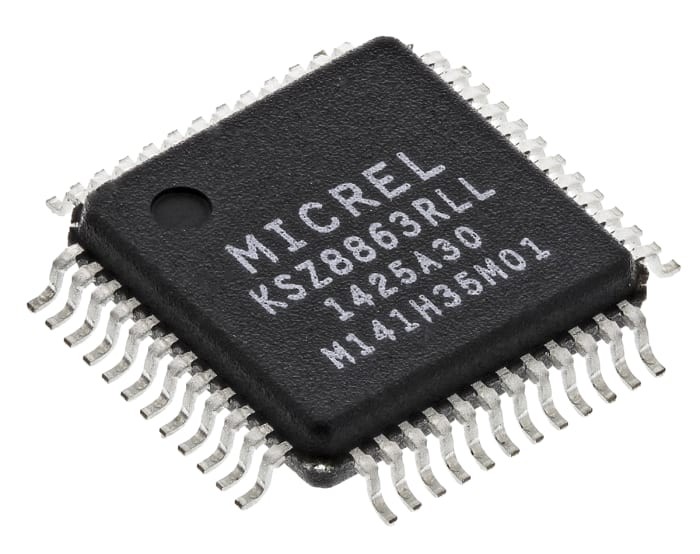

Microchip 48-Pin LQFP Ethernet Switch IC 1.8 V Minimum Supply, 3.3 V Maximum Supply, 100 Mbps Maximum Data Rate KSZ8863RLL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.6mm |
| Length | 7.1mm |
| Model | KSZ8863RLL |
| Width | 7mm |
| Mount Type | Surface |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 70°C |
| Package Type | LQFP |
| Sub Type | Switch |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Pin Count | 48 |
| Maximum Supply Voltage | 3.3V |
| Minimum Supply Voltage | 1.8V |
| Maximum Data Rate | 100Mbps |
| Standard Supported | IEEE 802.3u, IEEE 802.1Q, IEEE |
| Number of Transceivers | 2 |
Key Features
- Integrated 3-port Ethernet switch with 2 transceivers for reliable network performance.
- Surface mount package type LQFP with 48 pins ensuring compact board integration.
- Low voltage operation ranging from 1.8 V to 3.3 V for energy-efficient designs.
- Supported protocols include IEEE 802.3u and IEEE 802.1Q, enabling VLAN and fast Ethernet functionality.
- Operational temperature range from 0°C to 70°C suitable for typical industrial applications.
- Compliant with RoHS standards ensuring environmental safety and reliability.
- Ideal for high-performance Ethernet switching applications in industrial and communication equipment.
- Non-automotive grade device designed for general industrial and commercial Ethernet interface uses.
Product Description
Microchip KSZ8863RLL is a highly integrated 48-Pin LQFP Ethernet Switch IC designed for efficient network switching applications. With a maximum data rate of 100 Mbps, it supports high-speed 10/100Base-TX Ethernet communication, ideal for modern industrial and commercial network infrastructure.
This device supports a minimum supply voltage of 1.8 V and a maximum of 3.3 V, facilitating low power consumption while delivering reliable switching performance. It features 3 ports and 2 transceivers, enabling versatile network connectivity in compact board layouts.
The Ethernet Switch IC is packaged in a compact low-profile LQFP with 48 pins, measuring 7.1 mm by 7.0 mm by 1.6 mm, making it suitable for space-constrained applications. It operates optimally within a temperature range of 0°C to 70°C and complies with RoHS standards, ensuring environmentally friendly manufacturing and use.
Supported IEEE standards, such as IEEE 802.3u and IEEE 802.1Q, provide VLAN support and fast Ethernet capabilities necessary for contemporary network designs. Its surface mount technology package ensures easy integration in automated assembly lines.
Integrated 3-port Ethernet switch with 2 transceivers. Low voltage supply operation from 1.8 V to 3.3 V. RoHS compliant for environmental safety. Small package dimensions: 7.1 mm length, 7 mm width, and 1.6 mm height. Operating temperature range from 0°C to 70°C.
Supports IEEE 802.3u and IEEE 802.1Q standards. Surface-mount LQFP package with 48 pins. Ideal for industrial Ethernet communication applications.
This Microchip Ethernet Switch IC is extensively used in industrial automation, communication equipment, embedded systems, and other Ethernet-enabled electronic devices, providing reliable network switching with low power consumption.
Explore more high-performance Semiconductor and Ethernet Interface Ics on EnvMart for your industrial and electronic manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this Ethernet Switch IC is 100 Mbps, supporting high-speed 10/100Base-TX Ethernet communication.
It operates with a minimum supply voltage of 1.8 V and a maximum supply voltage of 3.3 V, facilitating low power consumption.
This model features 3 ports, enabling versatile network connectivity.
The Ethernet Switch IC comes in a compact LQFP package measuring 7.1 mm in length, 7 mm in width, and 1.6 mm in height.
It operates within a temperature range of 0°C to 70°C, making it suitable for typical industrial applications.
This model supports IEEE 802.3u and IEEE 802.1Q standards, enabling VLAN support and fast Ethernet functionality.
The KSZ8863RLL uses surface mount technology, which ensures easy integration into automated assembly lines.
This Ethernet Switch IC includes 2 integrated transceivers for reliable network performance.
Yes, this model is compliant with RoHS standards, ensuring environmental safety and reliability.
The KSZ8863RLL is manufactured in India.
It is extensively used in industrial automation, communication equipment, and embedded systems, providing reliable network switching.
This Ethernet Switch IC has a pin count of 48, suitable for compact board integration.
