onsemi Voltage Level Shifter Voltage Translator 10 Elements LVCMOS/LVTTL to LVPECL 32-Pin QFN MC100EPT622MNG

The onsemi MC100EPT622MNG Voltage Level Shifter is a uni-directional voltage translator IC that efficiently converts signals from LVCMOS or LVTTL logic levels to LVPECL output levels.

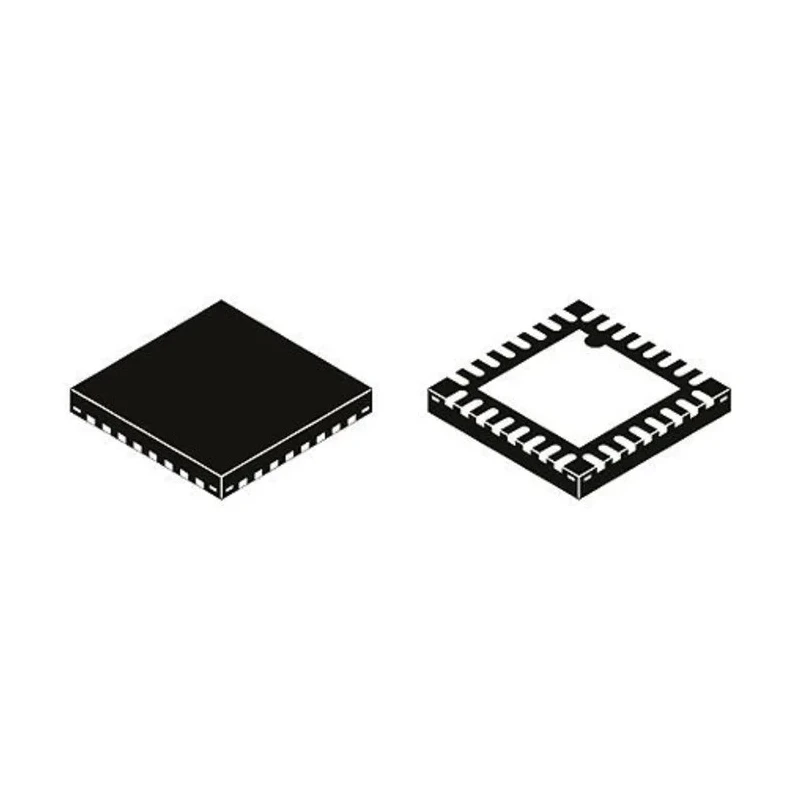

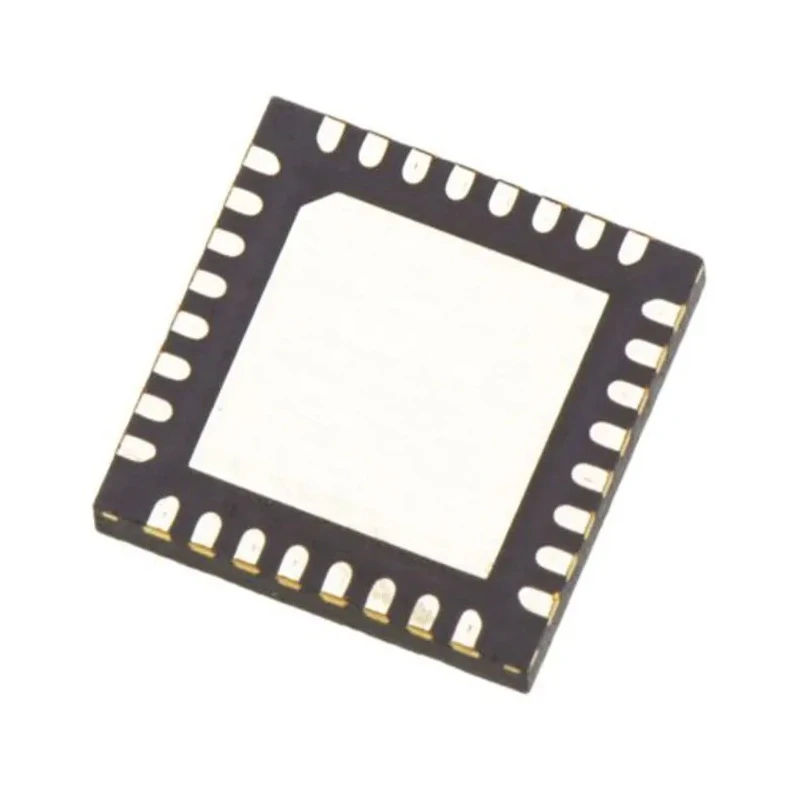

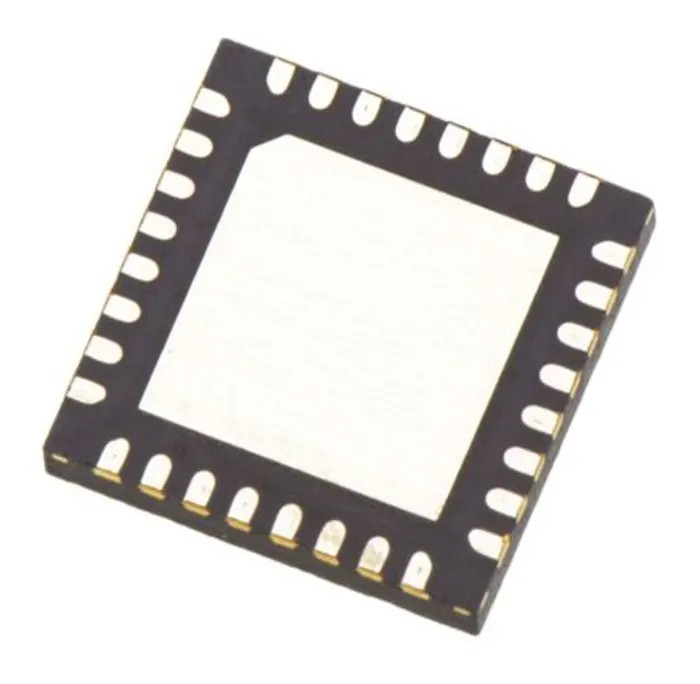

Featuring 10 elements per chip within a compact 32-pin QFN surface mount package, it enables high-performance voltage translation in a minimal footprint suitable for dense PCB assemblies.

Operating across a supply voltage range of 3 V to 3.8 V, the device achieves a maximum propagation delay of 800 picoseconds, facilitating rapid and reliable signal communication in complex electronic systems.

The device supports maximum low-level and high-level output currents of 50 mA and 100 mA respectively, ensuring robust driving capability in various circuit configurations. Designed to perform within a broad temperature window from -40°C to 85°C, it meets industrial standard reliability requirements.

This level shifter incorporates Emitter Coupled Logic (ECL) technology, supporting interoperability with ECL, PECL, CML, LVDS, HSTL, HCSL, TTL, and CMOS logic families, making it versatile for power, semiconductor, and advanced electronic manufacturing applications.

Supports 10 elements per chip for efficient translation. Compact 32-pin QFN surface mount package. Operates at supply voltages between 3 V and 3.8 V. Propagation delay of 800 picoseconds ensures rapid switching. High drive capability with low and high-level output currents of 50 mA and 100 mA.

Wide operating temperature range from -40°C to 85°C. Compatible with multiple logic families including ECL, PECL, and TTL. This product is ideal for use in electronic component manufacturing, semiconductor devices, and power management systems requiring reliable and fast voltage level translation.
