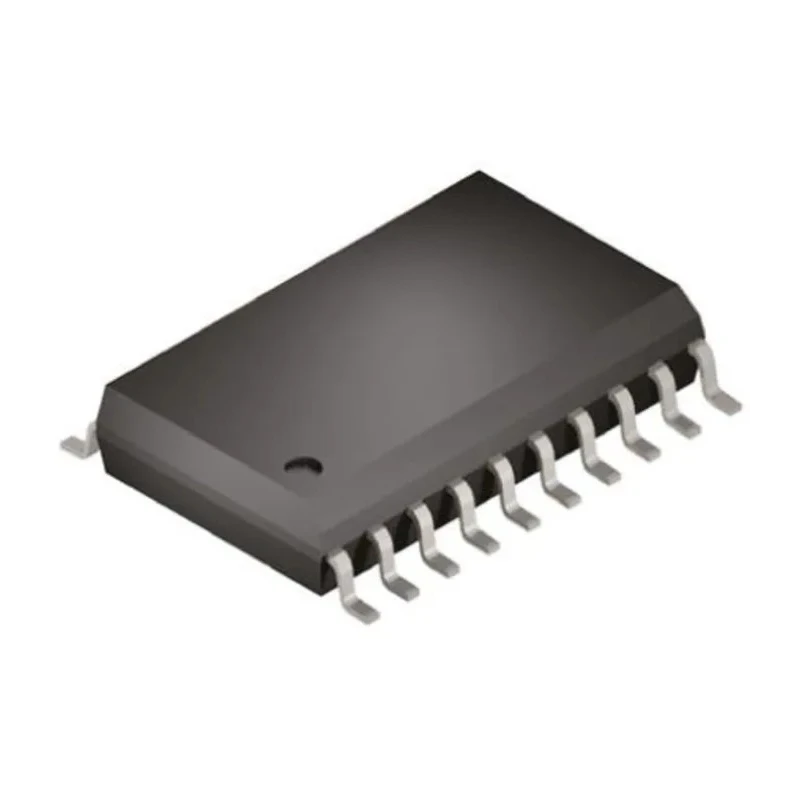

onsemi Voltage Level Shifter Voltage Translator Uni-Directional 3 Elements SOIC 20-Pin MC100EP91DWG

onsemi MC100EP91DWG is a high-performance uni-directional Voltage Level Shifter and Translator IC designed for electronic and industrial applications requiring voltage interface bridging. This component facilitates voltage translation for multiple logic signal types including LVPECL, LVCMOS, HSTL, LVTTL, CML, and LVDS to NECL output, making it ideal for systems needing seamless communication between differing logic standards.

The device comes in a surface-mount SOIC 20-pin package, featuring 3 internal elements per chip, providing efficient PCB footprint utilization and integration convenience. It ensures fast signal transmission with a maximum propagation delay time of 600 picoseconds under typical load conditions.

Operating voltage ranges from a minimum of 2.37 volts up to a maximum of 3.8 volts, suitable for a variety of power supply environments. This level shifter is rated for industrial temperature ranges from -40°C to 85°C, ensuring reliable performance in harsh environments.

The MC100EP91DWG provides output drive capabilities of 50mA at low logic levels and 100mA at high logic levels, supporting various load demands with stable voltage translation accuracy. Its compact physical dimensions (length 12.95mm, height 2.4mm) allow use in densely packed electronic assemblies.

Uni-directional voltage translation supporting multiple logic levels. Surface-mount SOIC package with 20 pins and 3 elements per chip. Fast propagation delay of 600ps optimizes signal timing. Wide supply voltage and temperature operating conditions for robust industrial use.

Designed for interfacing compatible with TTL, CMOS, and differential logic families. Compact size facilitates space-efficient PCB designs.

This voltage level translator is well-suited for semiconductor, industrial control, communications, and instrumentation applications where reliable and fast voltage level shifting is critical. It supports integration in a variety of electronic systems including logic interface translation equipment, telecommunication networks, and signal conditioning modules.

Explore additional onsemi Semiconductor components and Voltage Level Shifters at EnvMart for your electronic design and manufacturing needs.
