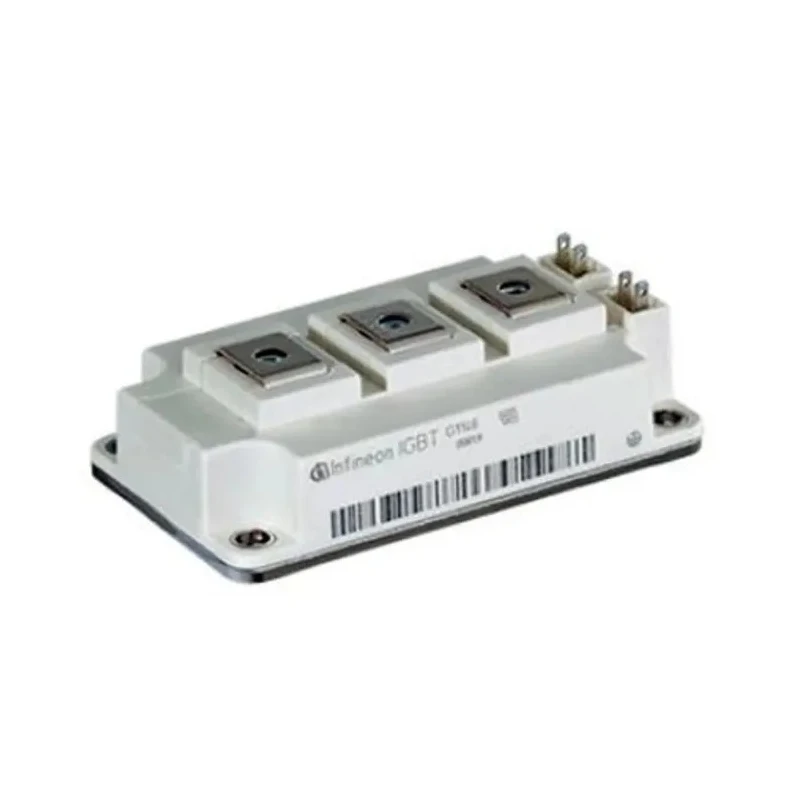

Infineon N-Channel IGBT Module 300 A 1200 V, 7-Pin 62 mm Module Clamp Mount FF300R12KE4HOSA1
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | Infineon |
| Height | 30.9mm |
| Length | 106.4mm |
| Model | FF300R12KE4HOSA1 |
| Width | 61.4mm |
| Mount Type | Clamp |
| Series | 62mmC |
| Maximum Operating Temperature | 150°C |
| Package Type | 62 mm Module |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 7 |
| Maximum Continuous Collector Current Ic | 300A |
| Maximum Collector Emitter Voltage Vceo | 1200V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.15V |
| Channel Type | N |
| Maximum Power Dissipation Pd | 1600W |
| Maximum Gate Emitter Voltage VGEO | 20 V |
Key Features
- The module supports a maximum power dissipation of 1600W, suitable for high thermal stress applications.
- Features a maximum collector-emitter saturation voltage of 2.15V to minimize conduction losses.
- Operates reliably from -40°C up to 150°C ambient temperatures.
- Designed for clamp mounting with a 62 mm style interface for secure mechanical and thermal contact.
- Includes 7 electrical pins for gate, emitter, and collector connections.
- N-channel channel type suited for industrial switching environments.
- Complies with RoHS standards ensuring environmental safety.
- Ideal for medium-voltage motor-drive converters and industrial inverter power stages.
Product Description
Infineon FF300R12KE4HOSA1 N-Channel IGBT Module, rated for 300 A continuous collector current and 1200 V maximum collector-emitter voltage, offers a robust solution for industrial power switching applications. Its advanced IGBT technology ensures efficient performance with a maximum power dissipation of 1600W and low collector-emitter saturation voltage of 2.15V.
This module is designed with a 7-pin arrangement, including gate, emitter, and collector terminals, providing reliable electrical connections within industrial inverter power stages and motor-drive converters. The clamp mount package type measures 62 mm and ensures secure mechanical and thermal contact during operation.
Built to operate in harsh environments, this module supports ambient temperatures ranging from -40°C to 150°C. It conforms to RoHS environmental standards, promoting safer and more sustainable electronics manufacturing.
The N-channel configuration makes it suitable for medium-voltage power conversion tasks in industries such as manufacturing, welding equipment, and traction auxiliary power electronics.
This product originates from Hungary and is supplied in new condition. It is not specified as an automotive-standard component and should be assessed by users for vehicle applications.
The clamp mount design requires a compatible 62 mm style mounting interface. The module's seven pins facilitate comprehensive and secure electrical routing. High blocking voltage at 1200V supports integration into high-voltage systems.
Supports heavy-load continuous operation at 300A. Effective thermal dissipation rating up to 1600W manages device heat during demanding use. Wide operating temperature range enables deployment in diverse industrial settings.
Low saturation voltage improves energy efficiency and reduces operational losses. Compliance with RoHS ensures usage in environmentally regulated industries. Applications include medium-voltage motor drives, inverter stages, welding power supplies, and traction power electronics.
Explore more Infineon semiconductor modules and power components at EnvMart for advanced industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Infineon FF300R12KE4HOSA1 module supports a maximum continuous collector current of 300 A.
This model has a maximum collector-emitter voltage rating of 1200 V.
It can handle a maximum power dissipation of 1600 W, making it suitable for high thermal stress applications.
The module operates reliably within an ambient temperature range of -40°C to 150°C.
It features 7 electrical pins used for gate, emitter, and collector connections.
This IGBT module is designed for clamp mounting with a 62 mm style interface.
The maximum collector-emitter saturation voltage is 2.15 V, which helps minimize conduction losses.
The dimensions of this IGBT module are 106.4 mm in length, 61.4 mm in width, and 30.9 mm in height.
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements.
It is ideal for medium-voltage motor-drive converters and industrial inverter power stages.
This module originates from Hungary.
This model utilizes an N-channel configuration, which is suited for industrial switching environments.
