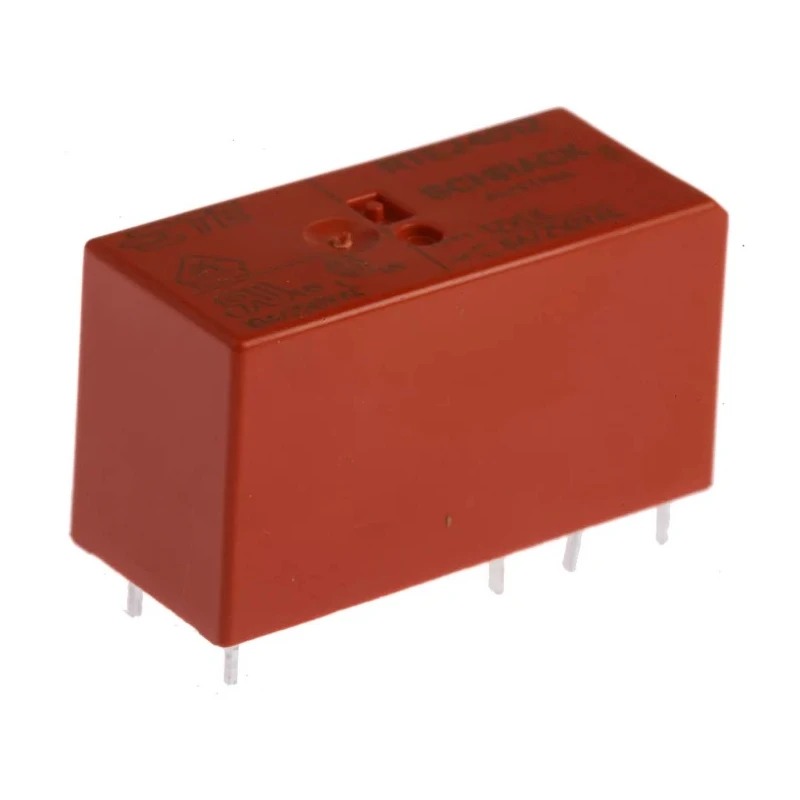

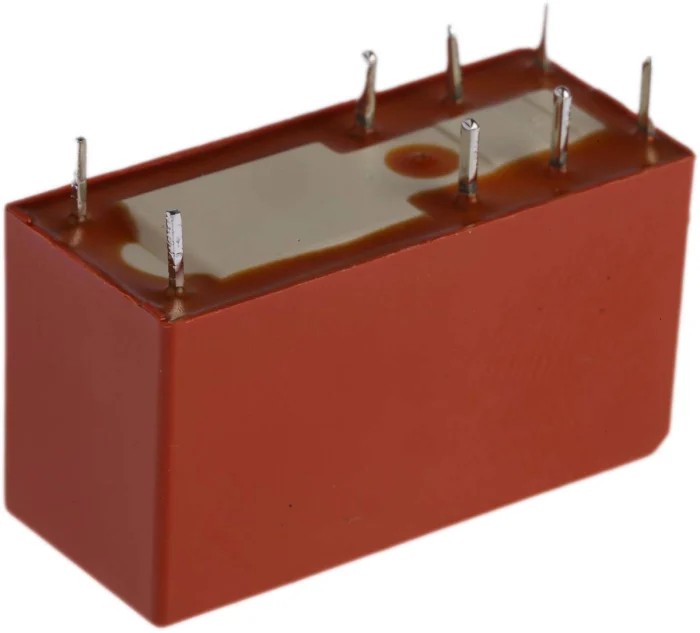

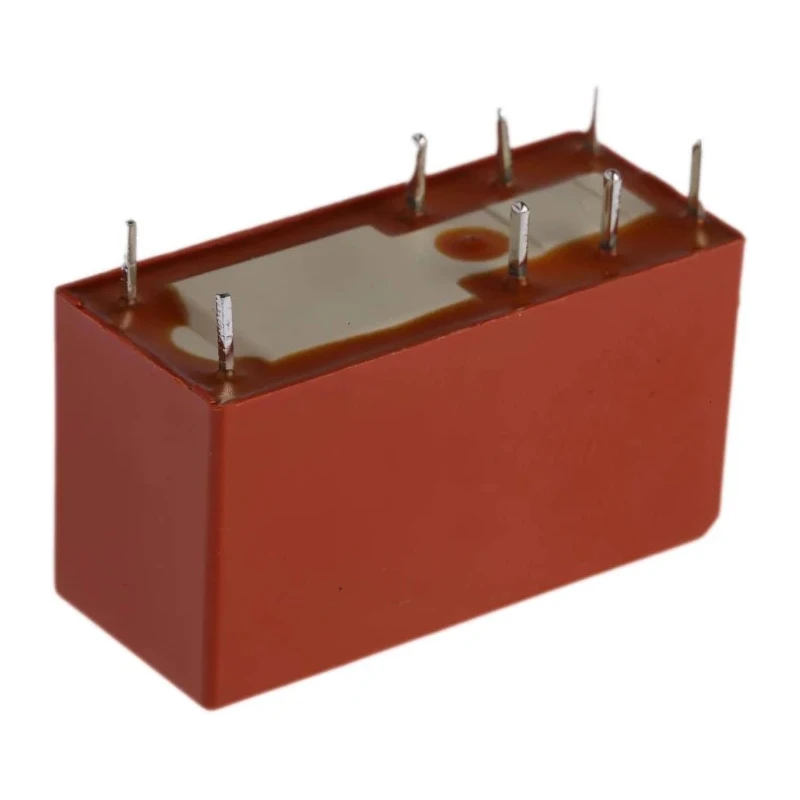

TE Connectivity RT2 Series PCB Power Relay, DPDT Contact Configuration, 12V dc Coil Voltage, 8A Switching RTE24012 1393243-4
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTE24012 1393243-4 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 800-4441Brand: RS PRO |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- The relay is mounted on PCB with solder terminals for reliable connections.
- Contact material consists of durable silver nickel alloy for enhanced conductivity.
- Coil resistance is 360 ohms ensuring efficient coil operation.
- It operates within a temperature range of -40°C to 85°C for versatility in various environments.
- The relay supports switching power up to 2 kVA and switching AC voltage of 400V ac.
- Complies with RoHS standards ensuring environmental compliance.
- Ideal for automation, heating systems, security lighting, and interface circuits.
- Manufactured in Austria ensuring high-quality standards.
Product Description
TE Connectivity RTE24012 1393243-4 PCB Power Relay is a versatile DPDT non-latching relay designed for general purpose low power applications. It features a coil voltage of 12V dc with a coil resistance of 360 ohms and a coil power consumption of 400mW. The relay supports an 8A switching current and switching power of up to 2 kVA at 400V ac.
This relay is designed for PCB mounting with solder terminals, adhering to high-quality standards with silver nickel alloy contact material. It functions reliably over a temperature range from -40°C to 85°C, making it suitable for industrial, automation, HVAC, and security system applications.

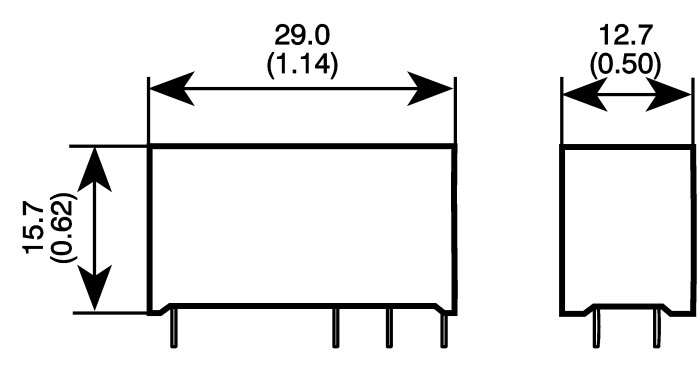

The relay complies with RoHS environmental standards and features adequate creepage and clearance distances between contact and coil to ensure safe operation. Its compact dimensions (29mm length, 15.7mm height, 12.7mm width) allow integration in space-constrained systems.
The relay's contact configuration is DPDT for multiple switching operations. It is ideal for automation domestic applications, heating systems, interface circuits, and security lighting. The coil insulation system conforms to UL class F specifications for durability.
The part is manufactured in Austria with stringent quality controls.
This product is an excellent choice for professionals requiring dependable relay solutions for electrical and signal conditioning needs. Browse more Power Relays and TE Connectivity products at EnvMart for extensive industrial-grade options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V dc.
This model supports a maximum switching current of 8A.
It can handle switching power up to 2 kVA.

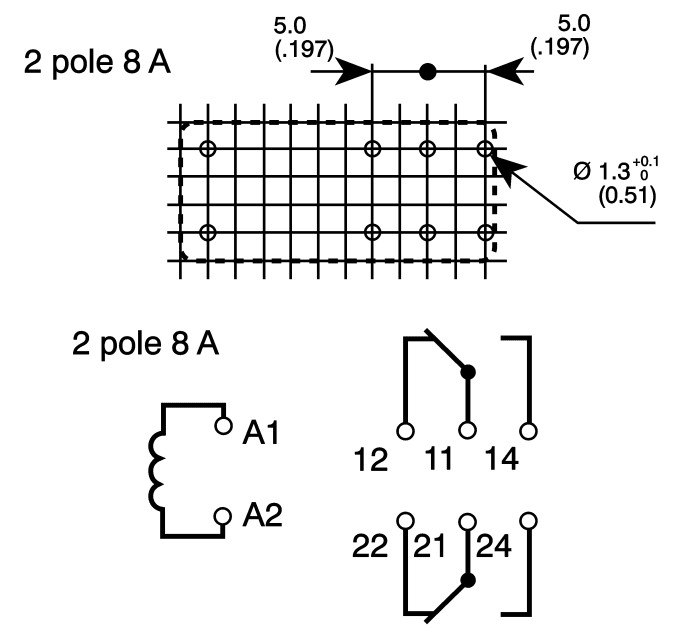

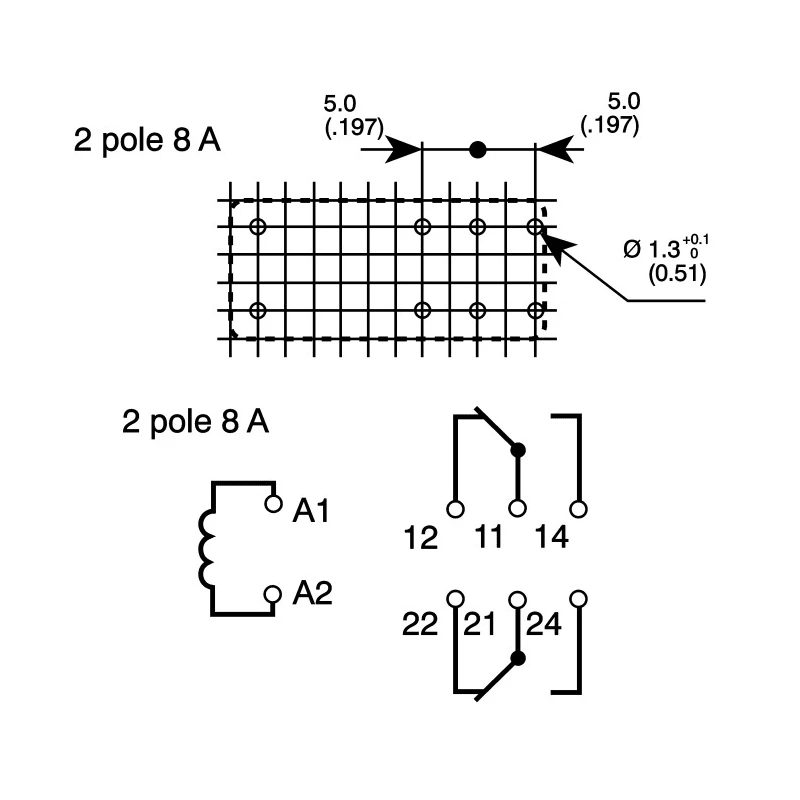

The relay features a DPDT (Double Pole Double Throw) contact configuration.
The relay has dimensions of 29mm in length, 15.7mm in height, and 12.7mm in width.
The coil resistance is 360 ohms.
It operates within a temperature range of -40°C to 85°C.
This relay is designed for PCB mounting with solder terminals.
The contact material consists of silver nickel alloy, which enhances conductivity.
Yes, it complies with RoHS standards for environmental compliance.
The coil power consumption is 400mW.
This relay is manufactured in Austria.
