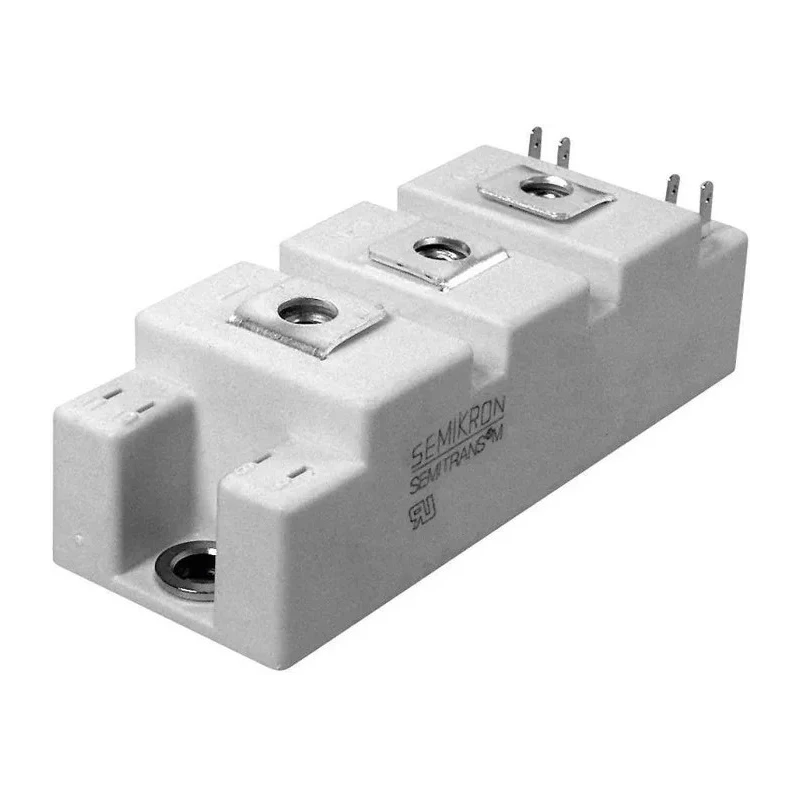

Semikron Danfoss N-Channel IGBT Module 114 A 1200 V 7-Pin SEMITRANS Panel SKM75GB12V
Specifications
| Country of Origin | India |
|---|---|
| Brand | Semikron Danfoss |
| Height | 30.1mm |
| Length | 94mm |
| Model | SKM75GB12V |
| Width | 34mm |
| Mount Type | Panel |
| Series | SKM75GB12V |
| Maximum Operating Temperature | 175°C |
| Package Type | SEMITRANS |
| Minimum Operating Temperature | -40°C |
| Pin Count | 7 |
| Maximum Continuous Collector Current Ic | 114A |
| Maximum Collector Emitter Voltage Vceo | 1200V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.3V |
| Channel Type | N |
| Maximum Gate Emitter Voltage VGEO | 20 V |
| Number of Transistors | 2 |
Key Features
- The module features a compact SEMITRANS package suitable for panel mounting.
- Dual IGBT devices are series-connected, forming a half bridge configuration.
- Capable of switching frequencies up to 12 kHz due to insulated copper baseplate with Direct Bonded Copper technology.
- Operates reliably between -40°C and 175°C for robust industrial use.
- Equipped with 7 pins for electrical connections and rated for a maximum gate emitter voltage of 20 V.
- The module dimensions are approximately 94 mm length, 34 mm width, and 30.1 mm height.
- Maximum collector emitter saturation voltage is 2.3 V ensuring efficient operation.
- Widely applicable in AC inverter motor drives and Uninterruptible Power Supplies.
Product Description
Semikron Danfoss SKM75GB12V is a high-performance N-Channel IGBT Module engineered for industrial power electronics applications. This module incorporates two series-connected IGBT transistors in a compact SEMITRANS package designed for panel mounting. It supports a maximum continuous collector current of 114 A and a maximum collector emitter voltage of 1200 V, making it suitable for demanding power switching applications.
The module's construction includes an insulated copper baseplate using Direct Bonded Copper technology, enabling efficient heat dissipation and allowing switching frequencies up to 12 kHz. Its operating temperature range spans from -40°C to 175°C, ensuring reliable functionality in harsh environments.
With a gate emitter voltage rating of 20 V and 7-pin connections, the SKM75GB12V module offers robust control and ease of integration. Its physical dimensions are 94 mm in length, 34 mm in width, and 30.1 mm in height, making it compact for a variety of electronic assemblies.
This dual IGBT module is ideally suited for industrial sectors including AC inverter motor drives, uninterruptible power supplies, and other power conversion and control systems requiring high efficiency and fast switching.
The module features a compact SEMITRANS housing for panel installation. Designed with two series-connected IGBT transistors forming a half-bridge. Supports switching frequencies up to 12 kHz thanks to its insulated copper baseplate.
Rated for operation in a temperature range from -40°C to 175°C. Houses 7 pins with maximum gate emitter voltage of 20 V. Efficient thermal management enables sustained collector current of 114 A. Dimensions of 94 mm x 34 mm x 30.1 mm suit compact device layouts.
This Semikron Danfoss IGBT module adheres to strict industrial standards and is a reliable choice for semiconductor power applications. Explore further products within the IGBT Module category at EnvMart for complementary solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current of the SKM75GB12V IGBT module is 114 A.
This model has a maximum collector emitter voltage rating of 1200 V.
It operates reliably within a temperature range of -40°C to 175°C.
The SKM75GB12V utilizes a SEMITRANS package designed for panel mounting.
This unit is equipped with 7 pins for electrical connections.
The maximum gate emitter voltage for the SKM75GB12V is 20 V.
The maximum collector emitter saturation voltage is 2.3 V, ensuring efficient operation.
It is capable of supporting switching frequencies up to 12 kHz.
The dimensions of this model are approximately 94 mm in length, 34 mm in width, and 30.1 mm in height.
It is widely applicable in AC inverter motor drives and uninterruptible power supplies.
The module features an insulated copper baseplate using Direct Bonded Copper technology, enabling efficient heat dissipation.
The SKM75GB12V incorporates two series-connected N-channel IGBT transistors in a half-bridge configuration.
