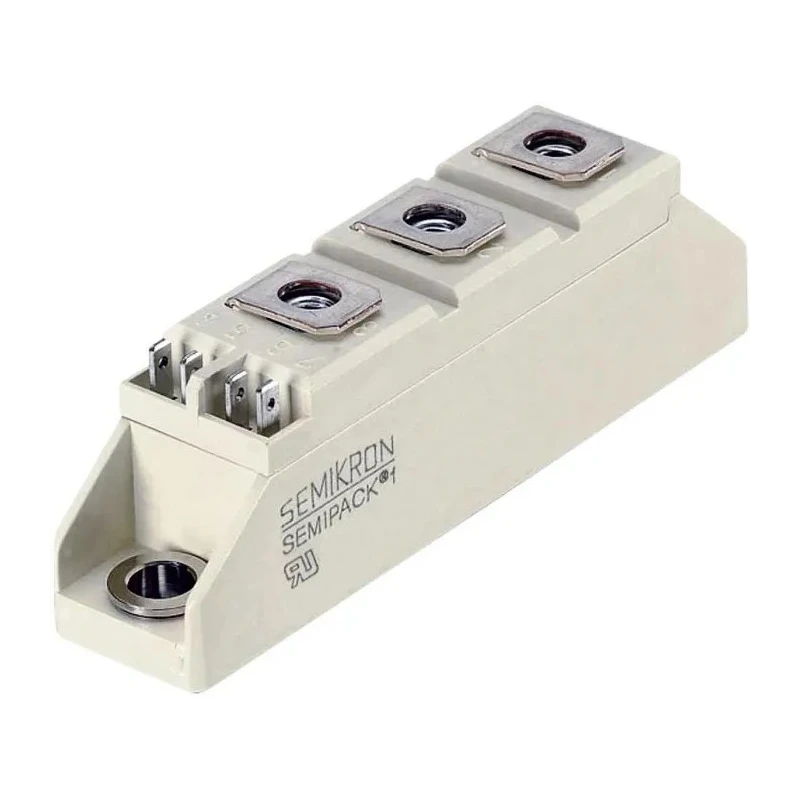

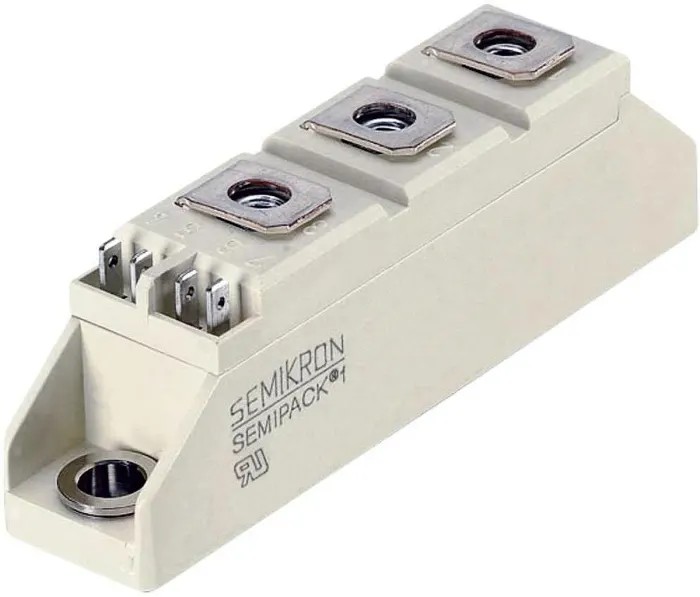

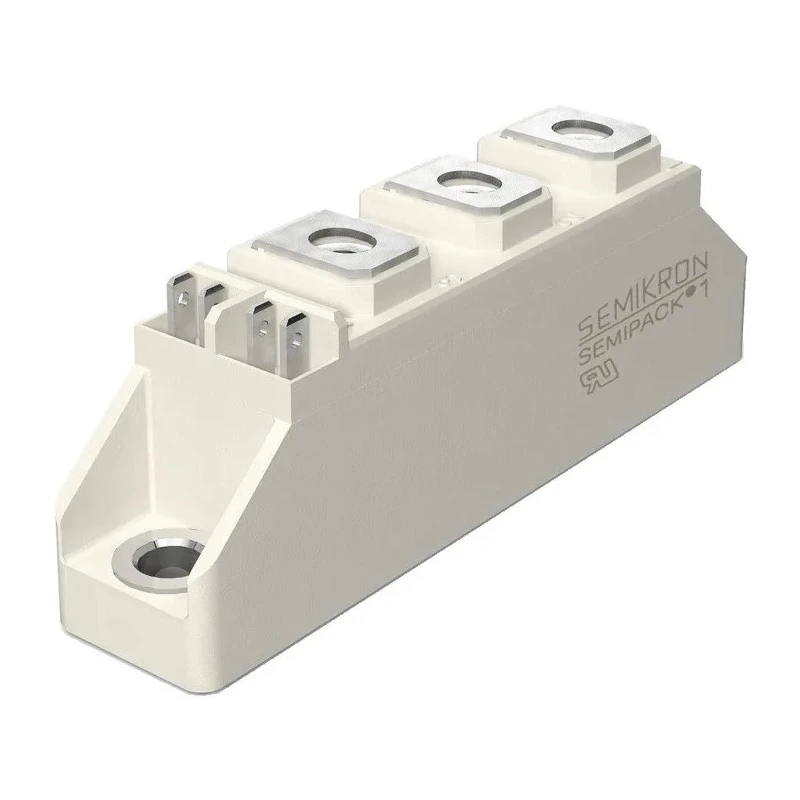

Semikron Danfoss Diode/Thyristor Module SCR 1600 V 2.25 kA 119 A 100 mA 1.75 V SEMIPACK1 5-Pin SKKH 107/16 E

Free Delivery in India | Lowest Global Shipping Charges

Semikron Danfoss Diode/Thyristor Module SCR 1600 V 2.25 kA 119 A 100 mA 1.75 V SEMIPACK1 5-Pin SKKH 107/16 E

Name: Semikron Danfoss Diode/Thyristor Module SCR 1600 V 2.25 kA 119 A 100 mA 1.75 V SEMIPACK1 5-Pin SKKH 107/16 E
Brand: Semikron Danfoss
SKU: 271718
Price: 57.39 USD
Availability: InStock



Category Thyristor Module Brand Semikron Danfoss Condition New

Specifications

Country of Origin	Slovakia
Brand	Semikron Danfoss
Height	30mm
Length	93mm
Model	SKKH 107/16 E
Width	20mm
Mount Type	Panel
Maximum Operating Temperature	130°C
Package Type	SEMIPACK1
Pin Count	5
Rated Average On-State Current Irms	119A
Repetitive Peak Reverse Voltage VDRM	1600V
Surge Current Rating	2.25kA
Maximum Gate Trigger Current Igt	100mA
Maximum Holding Current Ih	250mA
Maximum Gate Trigger Voltage Vgt	2.5V
Peak On-State Voltage	1.75V
Repetitive Peak Off-State Current	20mA

Key Features

This module features a repetitive peak reverse voltage of 1600 V and a surge current rating of 2.25 kA.
It has an average on-state current rating of 119 A with a peak on-state voltage of 1.75 V.
The module is equipped with a 5-pin SEMIPACK1 package and is mountable on panels.
Maximum gate trigger current is 100 mA and maximum holding current is 250 mA.
It operates reliably up to a maximum temperature of 130°C with dimensions 93 mm length, 30 mm height, and 20 mm width.
The device does not conform to automotive standards but is UL recognised for quality.
Suitable for industrial applications such as battery chargers, welders, and regulated power supplies.
Compact dimensions enable easy integration into various electronic systems.

Product Description

Semikron Danfoss SKKH 107/16 E is a powerful Diode/Thyristor Module designed to handle high voltage and large surge currents in demanding industrial environments. This SCR module operates with a repetitive peak reverse voltage (VDRM) of 1600 V, supporting a surge current of 2.25 kA, suitable for power control and switching applications.

The device's rated average on-state current is 119 A, and it features a peak on-state voltage of just 1.75 V, ensuring efficient conduction with minimal losses. The module comes in a compact SEMIPACK1 package with 5 pins, designed for panel mounting, facilitating easy integration into various electronic and power systems.

Its maximum gate trigger current of 100 mA and holding current of 250 mA provide reliable turn-on and sustained conduction characteristics. The maximum operating temperature of 130°C guarantees robust performance even in harsh environments.

The dimensions of the module are 93 mm in length, 30 mm in height, and 20 mm in width, making it a compact yet high-capacity solution usable in battery chargers, welders, regulated power supplies, and speed or temperature control circuits.

This module offers high current and voltage handling capabilities for industrial power control systems. It is designed with a SEMIPACK1 5-pin package for panel mounting flexibility. The device is UL recognised, ensuring industrial quality and reliability.

Capable of operating up to 130°C, suitable for demanding environments. Applications include battery chargers, welders, plating equipment, and regulated supplies.

Semikron Danfoss products are engineered for durability and precision in power electronics, making the SKKH 107/16 E module a trusted choice in industrial and commercial power conversion applications.
