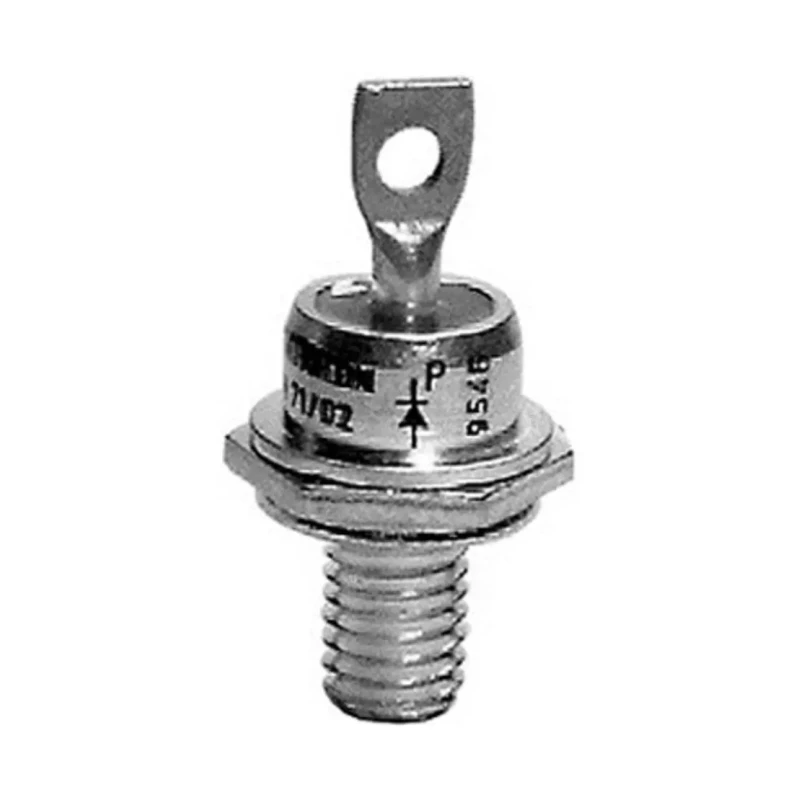

Semikron Danfoss High Voltage Diode 1600 V 95 A 2-Pin Screw Mount DO-203AB SKR 71/16

Semikron Danfoss SKR 71/16 is a high voltage stud-mount rectifier diode designed for demanding power electronics applications. This 2-pin screw mount diode is built in a robust DO-203AB package, providing excellent thermal coupling and durability under heavy current loads. Its stud cathode configuration facilitates direct heatsink attachment for efficient heat dissipation.

This diode supports a maximum continuous forward current of 95 A and can withstand peak reverse repetitive voltages up to 1600 V. It operates reliably within a wide temperature range from -40°C to 150°C, making it suitable for harsh industrial environments. The maximum forward voltage drop of 2.2 V ensures efficient power conversion while the peak non-repetitive forward surge current capacity of 370 A handles transient overloads effectively.

With dimensions of 28.8 mm in length and width and 10 mm in height, the device allows easy integration into power rectifier assemblies. The hermetically sealed case design offers high reliability and longevity in industrial, manufacturing, HVAC, and electrical power rectification applications.

This diode is ideal for high power AC to DC conversion, power supply circuits, and industrial motor drives. Its robust construction and electrical ratings enable dependable performance in demanding environments requiring high voltage and current handling.

This diode supports a peak reverse repetitive voltage of 1600 V. The maximum continuous forward current is 95 A, suitable for high power applications. It features a stud cathode diode configuration with a 2-pin DO-203AB package.

The device operates within a temperature range of -40°C to 150°C for reliable performance. The maximum forward voltage drop is 2.2 V, optimizing power efficiency. Peak non-repetitive forward surge current reaches up to 370 A for transient conditions.

The diode has dimensions of 28.8 mm length, 28.8 mm width, and 10 mm height for easy mounting. It is hermetically sealed with low thermal resistance for effective heat dissipation. Designed for industrial and high power electronic rectification use cases.
