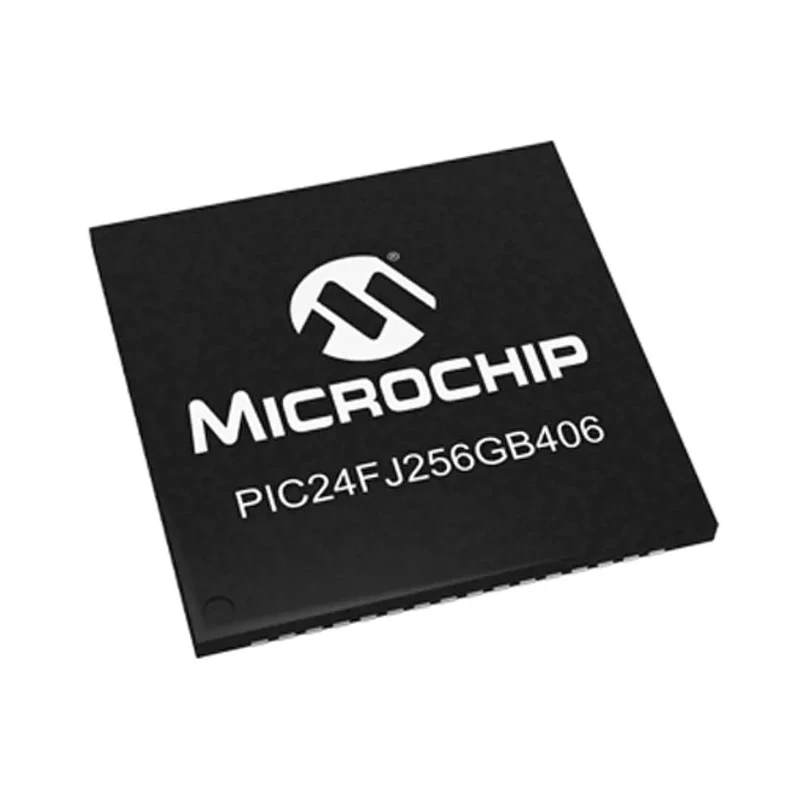

Microchip 16 bit PIC24F Microcontroller PIC24FJ256GB406-I/MR 32 MHz, 256kB FLASH, 64-Pin QFN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 950μm |
| Length | 9mm |
| Model | PIC24FJ256GB406-I/MR |
| Width | 9mm |
| Mount Type | Surface |
| Series | PIC24F |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB v2 |
| Ram size | 16kB |
| Standards/Approvals | RoHS |
| Pin Count | 64 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 2.2V |
| Device Core | PIC24F CPU |
| Program Memory Size | 256kB |
| Maximum Clock Frequency | 32MHz |
| Analogue Comparators | 3 |
| Number of Timers | 5 |
| Instruction Set Architecture | Modified Harvard |
| ADCs | 16 x 10/12 Bit |
| Program Memory Type | FLASH |
| DACs | 1 x 10 Bit |
Key Features
- Features a 16-bit PIC24F CPU architecture for efficient processing.
- Equipped with 256kB of FLASH program memory for extensive code storage.
- Operates at a maximum clock frequency of 32 MHz to balance speed and power consumption.
- Includes 16kB of RAM and 16 analog-to-digital converters with 10/12-bit resolution.
- Package includes a compact 64-pin QFN surface mount design for easy PCB integration.
- Supports advanced cryptographic engine capabilities for secure data encryption.
- Offers eXtreme Low Power (XLP) features ensuring efficient energy management.
- Operating voltage range from 2.2V to 3.6V suits varied applications.
Product Description
Microchip PIC24FJ256GB406-I/MR is a 16-bit PIC24F microcontroller featuring a 32 MHz CPU clock and 256kB FLASH memory. Its 64-pin QFN surface mount package offers a compact footprint with versatile mounting options. This microcontroller is ideal for applications requiring secure data storage and transfer, equipped with an on-board cryptographic engine supporting AES and DES/3DES encryption standards without CPU intervention.
Its modified Harvard architecture enables up to 16 MIPS operation, with hardware multipliers and dividers enhancing computational efficiency. Dual partition flash capability permits simultaneous programming and execution, allowing firmware updates without downtime.
The device features multiple power-saving modes under the eXtreme Low Power (XLP) technology, supporting different clock options and deep sleep current as low as 60 nA. It operates across a supply voltage range of 2.2V to 3.6V and is rated for industrial temperature range, making it suitable for demanding environments.
Peripherals include 16-channel 10/12-bit ADCs, a 10-bit DAC, three enhanced analog comparators, a charge time measurement unit, LCD display controller, and programmable timers with PWM capabilities, suited for embedded control applications.
Connectivity is supported with USB v2 interface and peripheral pin select (PPS) functionality offers flexible pin assignments to suit custom hardware designs. 16-bit PIC24F CPU with up to 16 MIPS performance. 256kB FLASH program memory with dual partition capabilities.
Integrated cryptographic engine for secure operations. eXtreme Low Power consumption with multiple power management modes. Comprehensive analog and digital peripherals for versatile applications. 64-pin QFN surface mount package for space-efficient layouts.
Industrial temperature range from -40°C to 85°C. USB v2 interface for communication. Modified Harvard architecture with specialized hardware multipliers/dividers. Robust and reliable solution for embedded systems requiring security and low power.
This microcontroller is widely used in industrial, automotive, consumer electronics, and secure communication systems. For further microcontroller and semiconductor options, browse EnvMart's extensive catalog under Electronics & Electricals > Semiconductor > Microcontrollers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC24FJ256GB406-I/MR is 32 MHz.
It features a program memory size of 256kB FLASH.
The operating voltage range is from 2.2V to 3.6V.
It comes in a 64-pin QFN surface mount package.
The microcontroller operates within an industrial temperature range of -40°C to 85°C.
It supports USB v2 interface for communication.
The RAM size is 16kB.
It includes eXtreme Low Power (XLP) features that support multiple power-saving modes.
It features an integrated cryptographic engine that supports AES and DES/3DES encryption standards.
The device is based on a 16-bit PIC24F CPU architecture with a modified Harvard instruction set.
