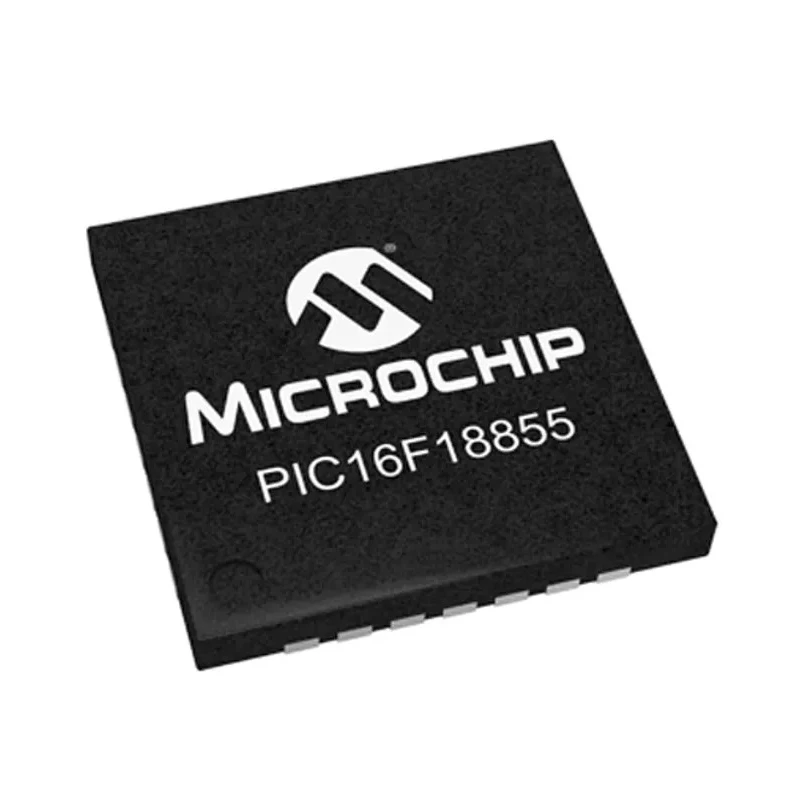

Microchip 8-bit PIC Microcontroller 32 MHz 14kB FLASH 28-Pin QFN PIC16F18855

Microchip PIC16F18855 8-bit PIC Microcontroller delivers a high-performance 32 MHz CPU with 14kB of FLASH memory in a compact 28-Pin QFN surface mount package. Built on Microchip's enhanced mid-range architecture, it provides efficient processing suitable for a wide range of embedded control applications.

The device features 25 programmable I/Os, 2 analogue comparators, and a 5-bit digital-to-analogue converter, enabling precise analog and digital interface capabilities. The microcontroller utilizes advanced low power modes such as SLEEP, IDLE, and DOZE, together with peripheral module disable functionality, to optimize power consumption for battery-powered and energy-sensitive applications.

Flexible communication interfaces including I2C, EUSART, and SPI support seamless integration with other digital devices. Its operating voltage range of 1.8V to 5.5V and operating temperature range of -40°C to 85°C ensure dependable performance in diverse environmental conditions.

Designed with robust features like Power-On Reset, Brown-Out Reset, windowed watchdog timer, and in-circuit programming/debug, this microcontroller supports fast development cycles and reliable operation. The 28-Pin QFN package measures 6.1 mm by 6.1 mm with a height of 950 μm, making it ideal for compact PCB layouts.

This microcontroller is suitable for industrial, automotive, consumer electronics, and embedded system development applications that require a powerful core, ample memory, and energy efficiency. It is RoHS compliant, ensuring environmental standards adherence.

This microcontroller has an 8-bit data bus and employs Microchip's PIC architecture for efficient processing. Offers a maximum clock frequency of 32 MHz and 1.024kB of RAM suitable for mid-range embedded applications. Features include 25 programmable I/Os, 2 analogue comparators, and a 5-bit DAC for versatile interfacing.

Supports multiple interfaces such as I2C, EUSART, and SPI for flexible communication options. Integrated low power modes including IDLE, DOZE, and SLEEP enable energy-efficient operation. Includes peripheral module disable capability to minimize power consumption when peripherals are unused.

Operating voltage ranges from 1.8V minimum to 5.5V maximum with power dissipation up to 800mW. Designed for industrial temperature ranges from -40°C to 85°C for robust reliability. Fully RoHS compliant and provided in a compact 6.1mm x 6.1mm QFN package.

Supports in-circuit serial programming and debugging, including low-voltage programming and peripheral pin select. Explore a wide selection of Microchip Microcontrollers and related components in the Electronics & Electricals category at EnvMart for your industrial and embedded system needs.
