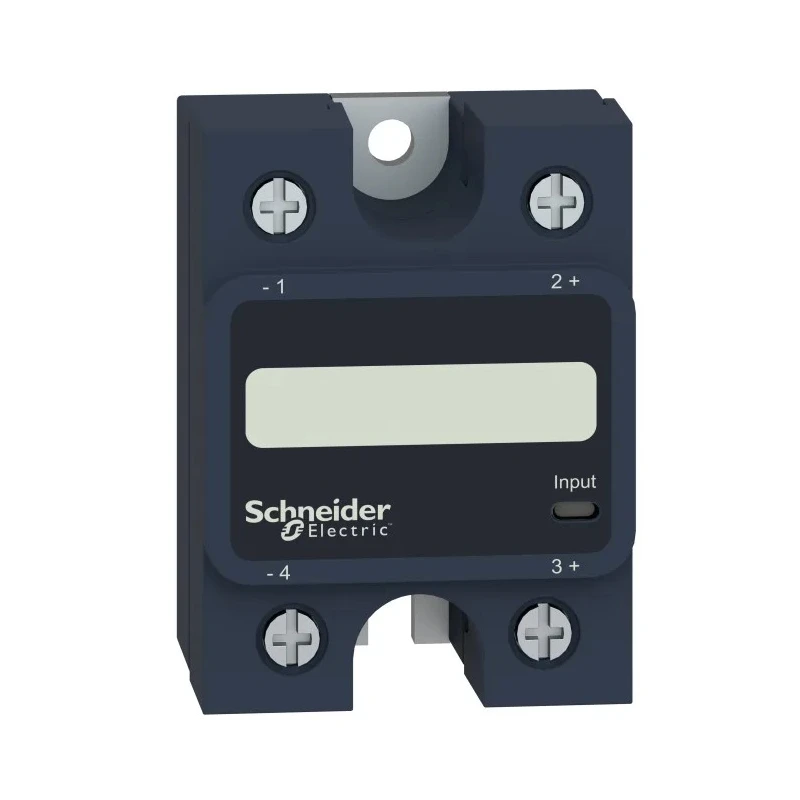

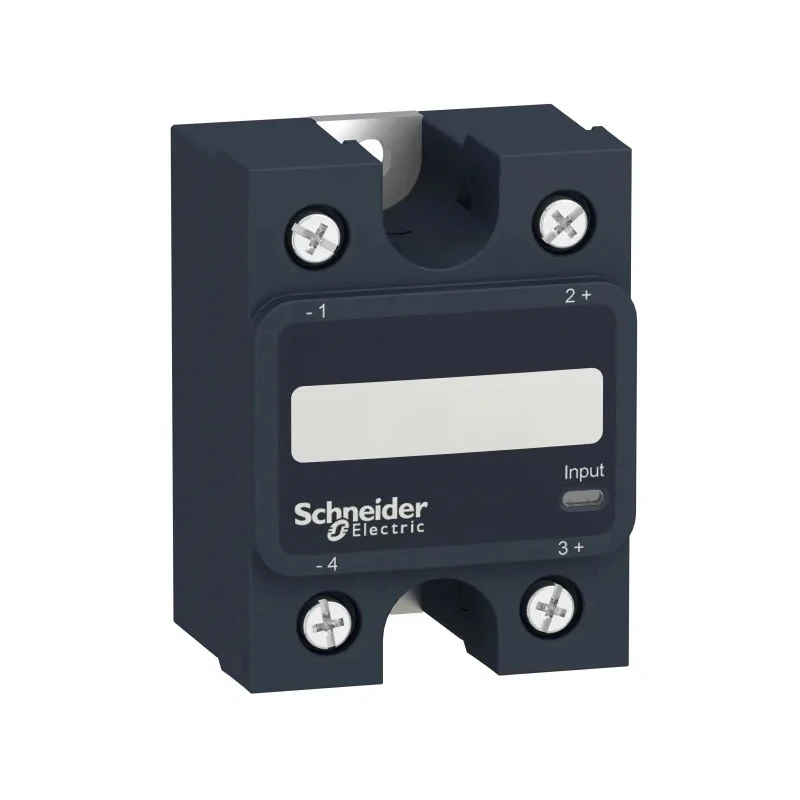

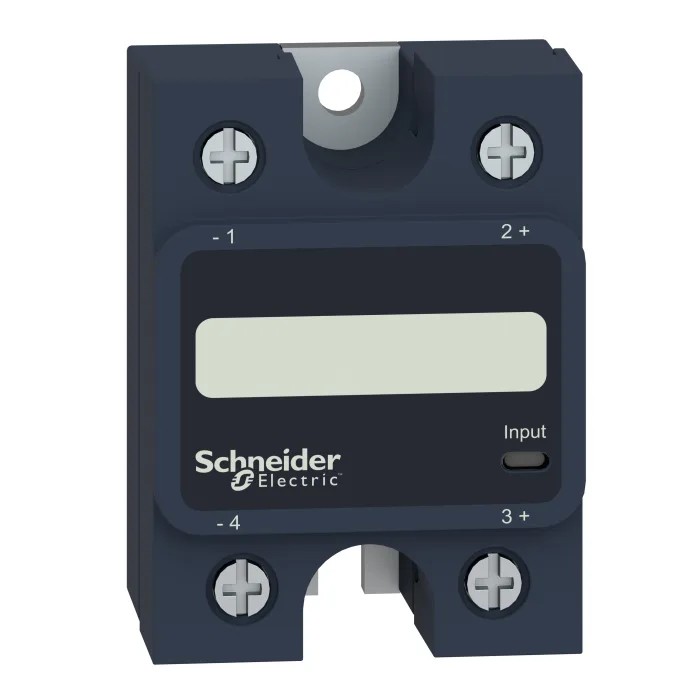

Schneider Electric Harmony Relay Series Solid State Relay, Panel Mount, 12 A Load, 150 V DC Load, 32 V DC Control SSP1D412BD

Schneider Electric SSP1D412BD Harmony Relay Series solid state relay is a reliable, panel mount device engineered for controlling on/off switching operations in industrial, automation, and electrical applications. With a maximum load current of 12 A and load voltage rating of 150 V DC, this relay supports seamless power handling in demanding environments.

The relay operates over a wide control voltage range of 3.5 V to 32 V DC, allowing versatile integration with control systems. Its zero voltage switching functionality minimizes electrical noise and extends the lifetime of switching components. The rugged construction and IP20 rating provide effective protection against accidental contact and solid contaminants larger than 12 mm.

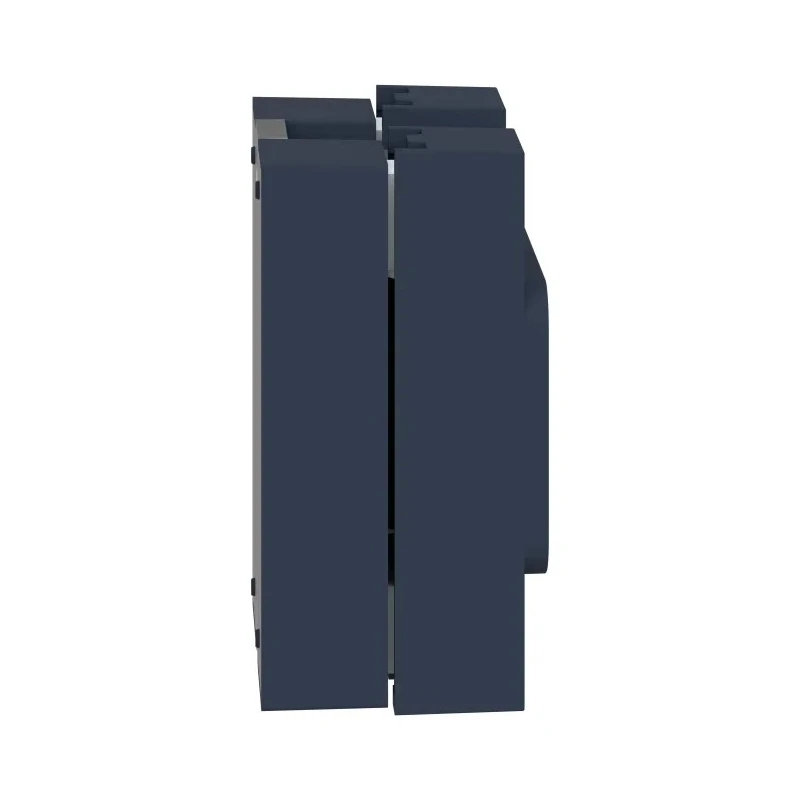

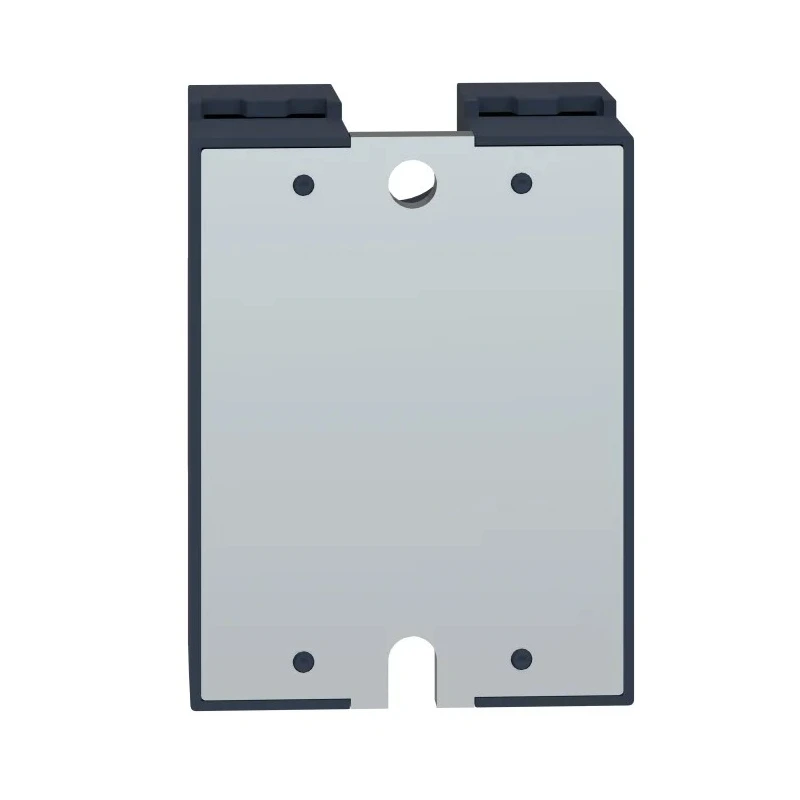

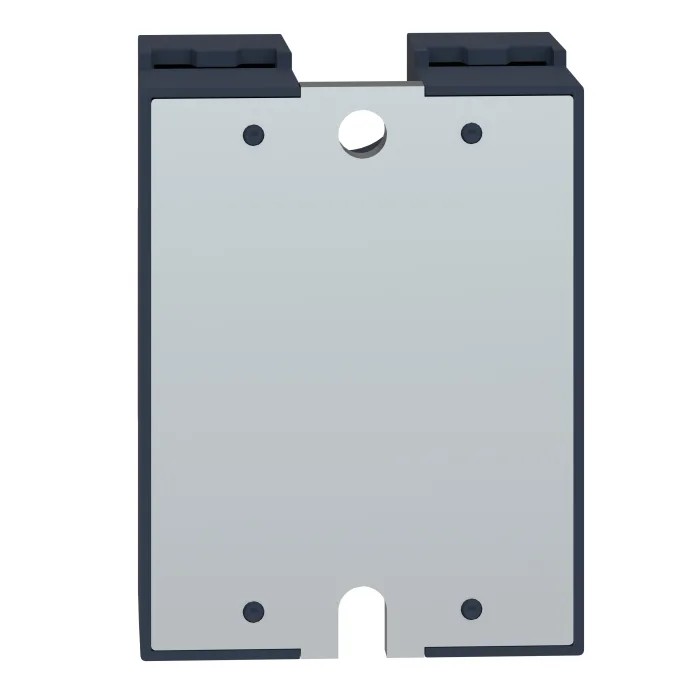

Compact in size, measuring 58.9 mm in height, 44.5 mm in length, and 34.29 mm in width, this relay is designed for secure panel mounting with screw terminals that ensure firm wiring connections to minimize downtime risks.

Operating temperature resilience from -40°C up to 80°C makes the unit suitable for harsh industrial and robotic environments. The relay's fast maximum turn-on time of 0.1 milliseconds supports rapid switching requirements in modern control systems.

The device complies with key international standards including CE, CSA, EAC, EN/IEC 62314, REACH, RoHS, and UL, underscoring its quality and safety credentials. With an off-state leakage current of only 0.3 mA and a capacitance of 50 pF, this solid state relay is highly efficient, lightweight at 89.2 grams, and built for reliable long-term performance.

This solid state relay finds application in industrial controls, robotics technology, medical equipment, data acquisition systems, and home appliances where precise and maintenance-free switching is essential.

Set an industrial standard with Schneider Electric’s SSP1D412BD and explore related products in the Solid State Relays category at EnvMart for enhanced automation solutions. The relay has an input current of 10 to 15 mA ensuring efficient control.

It features screw terminals for secure wiring connections. Rated for a wide operating temperature range from -40°C to 80°C. The unit provides zero voltage switching for reduced electromagnetic interference. Design supports a fast turn-on time of 0.1 ms for rapid switching.

IP20 protection level makes it touch-proof and protects against solid objects larger than 12 mm. Compact size with dimensions 58.9 mm height, 44.5 mm length, and 34.29 mm width for easy panel installation. Complies with multiple standards including CE, CSA, EAC, EN/IEC 62314, REACH, RoHS, and UL certifications.

Off state leakage current is minimal at 0.3 mA ensuring low power losses during standby. Output type is SCR, suitable for industrial and automation applications. Browse the EnvMart Solid State Relays category for complementary Schneider Electric industrial control components and accessories.
