Parker Flowline Series Industrial Flow Meter 5L/min to 46L/min, BSP Parallel Thread 1/2 in, 1-1/4 in, 1/4 in, 3/4 FM26222222

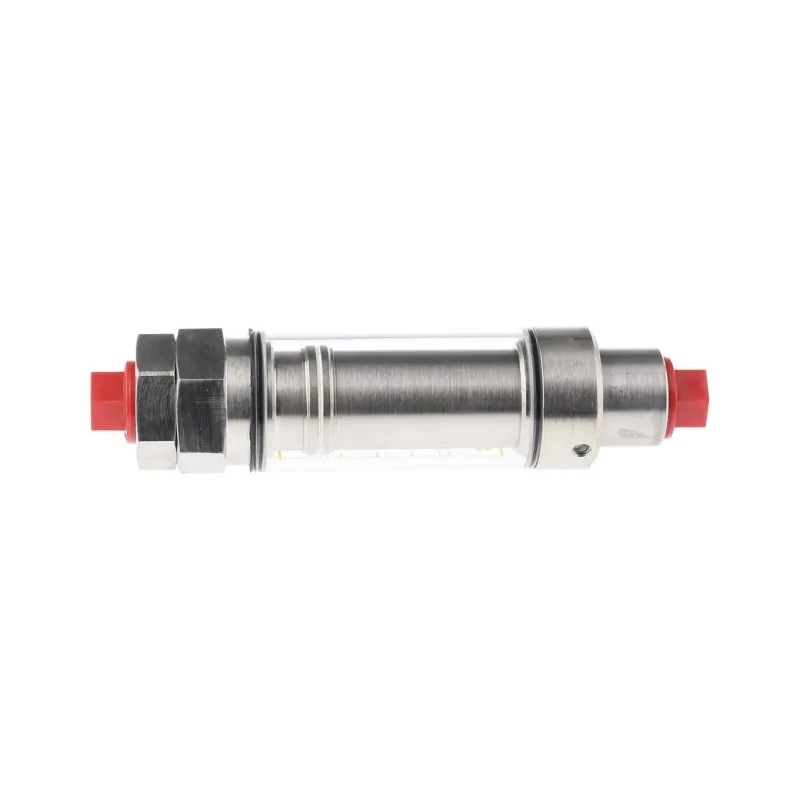

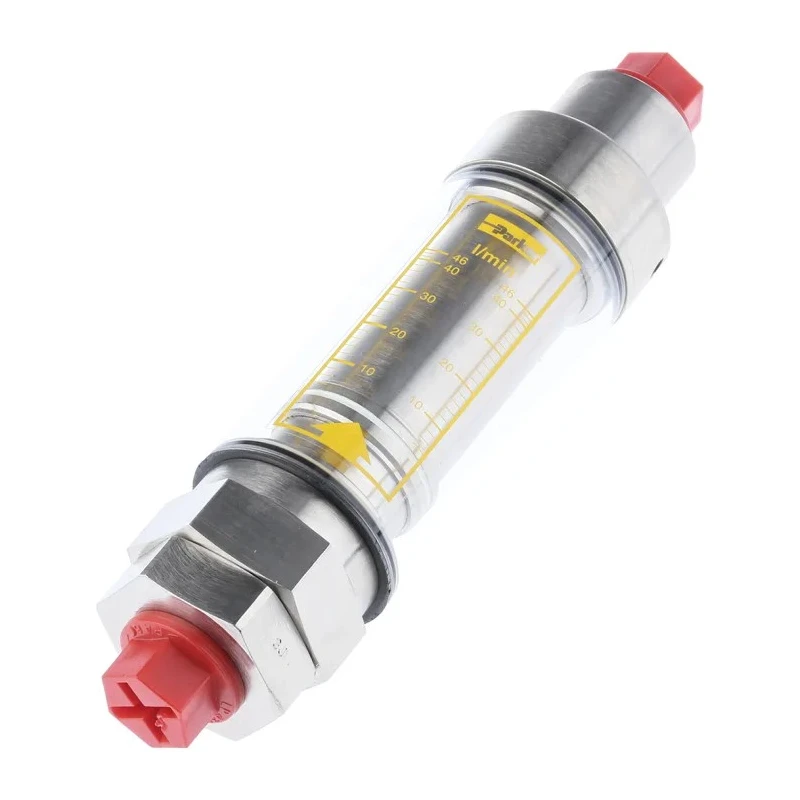

The Parker FM26222222 Flowline Series flow meter is an industrial-grade, high-pressure variable flow indicator designed to provide accurate flow rate measurements ranging from 5 liters per minute to 46 liters per minute. Featuring BSP parallel threaded connections available in sizes 1/2 inch, 1-1/4 inch, 1/4 inch, and 3/4 inch, this flow meter is adaptable to diverse piping configurations. It employs a differential pressure technique where the internal piston moves against a calibrated spring as flow increases, with a magnetically coupled indicator ring providing direct visual readings.

This device operates reliably at temperatures up to 90 degrees Celsius and pressures up to 350 bar, making it suitable for demanding industrial environments including hydraulic systems and process monitoring. The wetted materials include robust stainless steel, brass versions, and fluoroelastomer seals, ensuring durability and chemical compatibility with oil or water media.

Accuracy is maintained at plus or minus 5% Full Scale Deflection with repeatability within plus or minus 1% FSD, making the meter dependable for precise flow measurement tasks. The flow meter is relatively insensitive to viscosity changes, simplifying calibration and usage in various fluids.

Manufactured in compliance with BS 2874 CZ114, BS 2056 EN 58J, BS 970 316S, and BS970/1:1991:316S31 standards, the Parker Flowline meter meets stringent quality and performance criteria.

This product is ideal for industrial, manufacturing, laboratory, and water treatment applications requiring reliable and accurate flow measurement. Installation is flexible as the device can be mounted on any plane without loss of performance.

High-pressure flow indicator suitable for industrial applications. Operates up to 90°C maximum temperature. Constructed with stainless steel, brass, and fluoroelastomer wetted parts. Features direct reading with a magnetically coupled indicator ring.

Calibrated accuracy of plus or minus 5% Full Scale Deflection and repeatability of plus or minus 1% FSD. Designed for oil and water media with variable flow ranges. Capable of handling pressures up to 350 bar. Complies with BS 2874 CZ114, BS 2056 EN 58J, BS 970 316S, and BS970/1:1991:316S31 standards.
