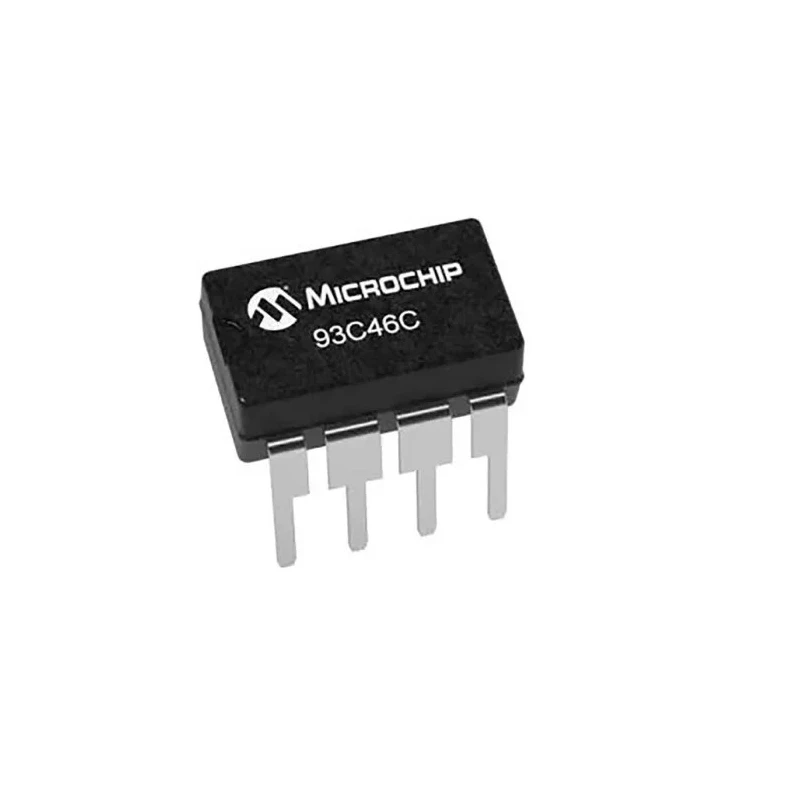

Microchip 1 kB Serial EEPROM 200 ns 8-Pin PDIP Serial-Microwire 93C46C-I/P

Microchip 93C46C-I/P 1 kB Serial EEPROM is a 200 ns access time, 8-pin PDIP serial-microwire memory device suitable for various low-power embedded applications. Designed with advanced CMOS technology, this EEPROM provides efficient, non-volatile data storage ideal for industrial, laboratory, manufacturing, and electronic equipment uses.

The device supports a memory size of 1kB configured either as 1k x 8 or 1k x 16 bits, with a pin count of 8 housed in a PDIP package that allows easy through-hole PCB mounting.

This model operates reliably between -40°C and +85°C, making it suitable for industrial temperature environments, and features a maximum clock frequency of 3 MHz, which ensures rapid data transactions.

Microchip’s EEPROM offers 1,000,000 erase/write cycles and maintains data retention for over 200 years, making it highly durable for long-term applications.

It features self-timed erase/write cycles, automatic erase before write, power-on/off data protection circuitry, and a device status signal for ready/busy monitoring, all contributing to enhanced robustness and performance.

The product complies with RoHS and carries no automotive standard certification. Its package dimensions are approximately 9.4 mm in length, 6.35 mm in width, and 3.3 mm in height with a supply current of approximately 1 mA.

This EEPROM is extensively used in electronics manufacturing, instrumentation, industrial control systems, and other embedded system applications requiring reliable serial non-volatile memory.

Utilizes advanced CMOS technology for low power consumption. Features a 1 kB memory size organized as 1k x 8/1k x 16 bit. Operates with a supply voltage range of 4.5V to 5.5V. Supports a maximum clock frequency of 3 MHz for fast data access.

Has an endurance of 1,000,000 erase/write cycles with data retention over 200 years. Functions across an industrial temperature range from -40°C to +85°C. Comes in a standard 8-pin PDIP package for through-hole mounting.

Includes power-on/off data protection and automatic erase/write features. Browse the Electronics & Electricals category at EnvMart for more high-quality semiconductor memory solutions.
