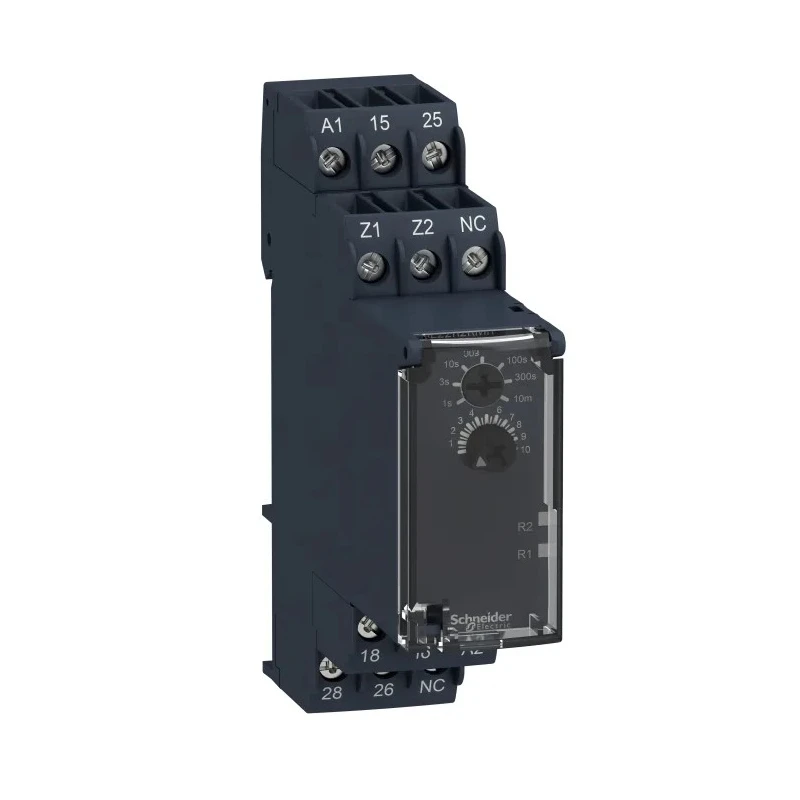

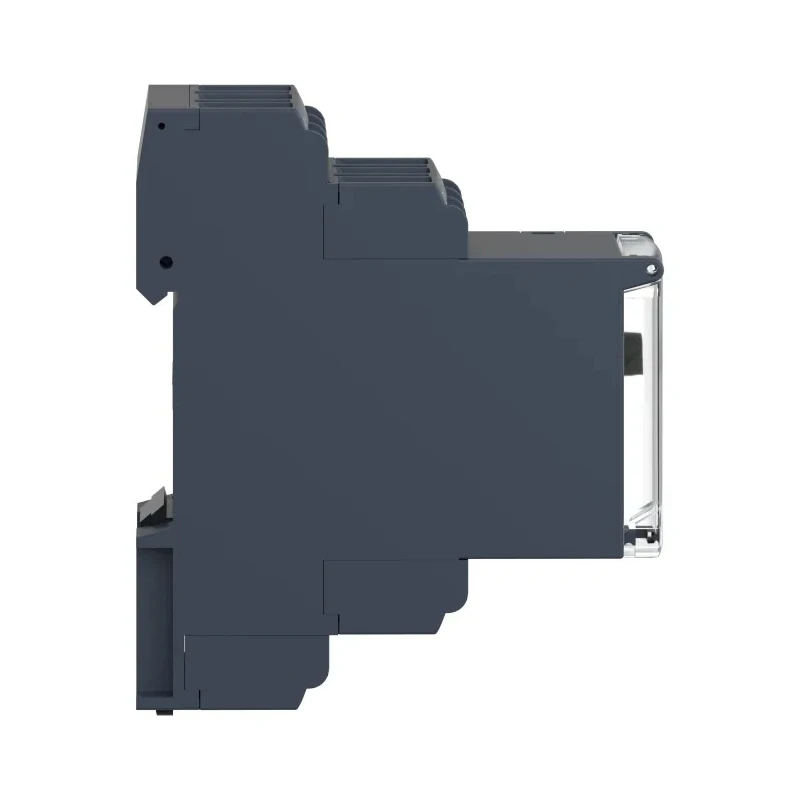

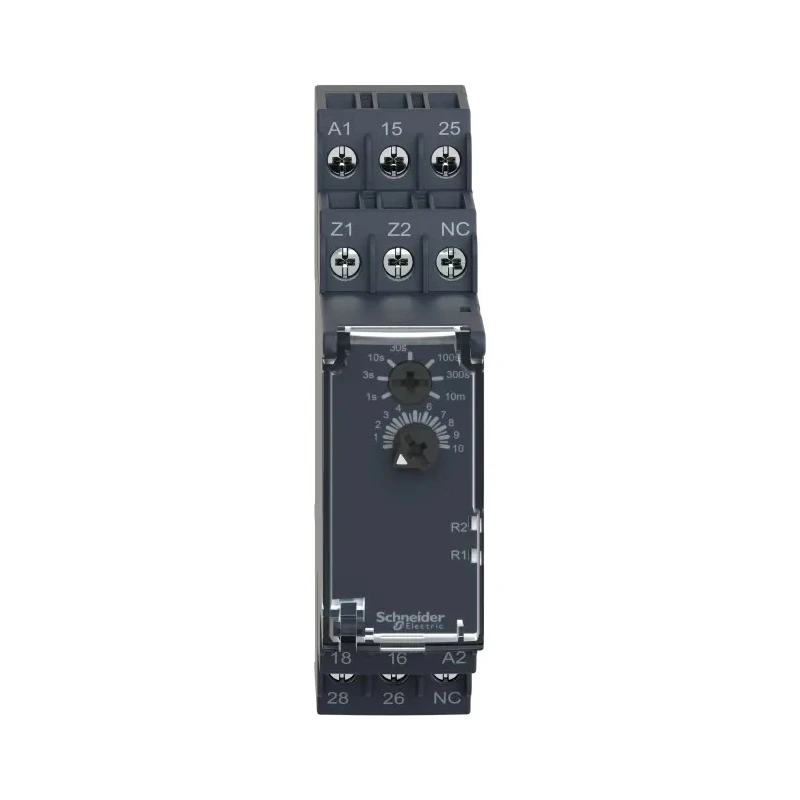

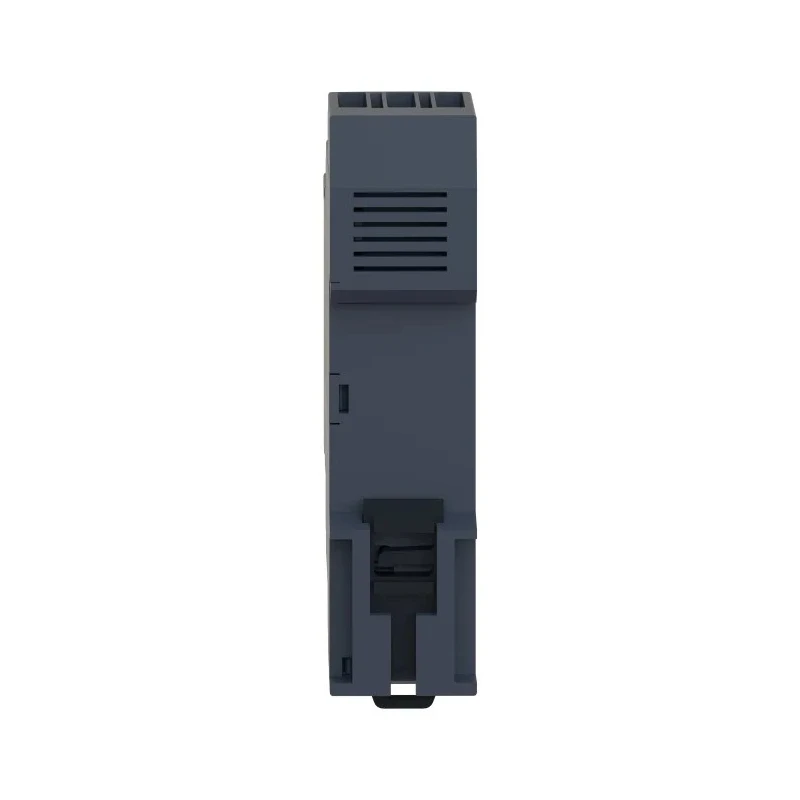

Schneider Electric Harmony Time Series DIN Rail Timer Relay, DPDT Contact Configuration, 24 to 240 V AC/DC, 0.3 to RE22R2KMR
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Height | 79.5mm |
| Function | Offset Double Ring End |
| Length | 22.9mm |
| Model | RE22R2KMR |
| IP Rating | IP40 |
| Mode | OFF Delay |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | Harmony Time |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Time Range | 0.3 to 300 s |
| Terminal type | Screw |
| Standards/Approvals | IEC 61812-1, GL, RCM, CSA, CCC, CE, EAC, UL, UL 508 |
| Number of Contacts | 2 |
| Number of Timer Functions | 1 |
| Switching Voltage | 250V ac |
| Contact Current | 5A |
| Supply DC Voltage | 24 to 240 V dc |
| Timing Adjustment | Knob |
| Supply AC Voltage | 24, 240V ac |
Key Features
- Dual Pole Double Throw (DPDT) contacts enable versatile control in automation systems.
- Wide supply voltage range of 24 to 240 V AC/DC supporting diverse power setups.
- OFF Delay timing function allows controlled delayed switching operations.
- Compact DIN Rail mounting design ensures straightforward installation and space efficiency.
- Screw terminal type for secure and reliable electrical connections.
- Operating temperature range from -20°C to 60°C suitable for various environments.
- Switching voltage rated at 250 V AC with contact current of 5 A.
- Knob adjustment for precise timing setting between 0.3 and 300 seconds.
Product Description
Schneider Electric RE22R2KMR Harmony Time Series DIN Rail Timer Relay features a Dual Pole Double Throw (DPDT) contact configuration, supporting a wide supply voltage range from 24 to 240 V AC/DC. It offers precise OFF Delay timing from 0.3 to 300 seconds controlled via a knob adjustment, facilitating accurate time-delay operations in industrial automation systems.
This timer relay is engineered for DIN Rail mounting, allowing easy installation and saving panel space. It uses screw terminals to ensure firm and dependable electrical connections. The relay operates reliably in temperature ranges from -20°C to 60°C, safeguarding performance in varied environments.
The switching voltage capability is rated at 250 V AC with a contact current of 5 A, making it suitable for controlling loads within industrial processes. Compliance with international standards such as IEC 61812-1, GL, RCM, CSA, CCC, CE, EAC, UL, and UL 508 ensures stringent quality and safety.
Ideal applications include timing control in automation systems, lighting control requiring precise time sequences, heating and cooling system regulation, and sequential control operations in manufacturing processes. The product embodies Schneider Electric's commitment to reliable, sustainable automation components, supported by Green Premium Verification for environmental responsibility.
Dual Pole Double Throw (DPDT) contacts for multi-functional control. Wide input voltage from 24 to 240 V AC/DC for installation flexibility. Adjustable OFF Delay timing from 0.3 to 300 seconds via knob. DIN Rail mounting optimizes space and simplifies setup.
Screw terminal connections provide robust electrical integrity. Wide operating temperature range enables use in varied conditions. Rated switching voltage is 250 V AC with 5 A contact current. Certified with multiple international standards for safety and compliance.
Part of the Harmony Time series known for durability and precision. Explore the Schneider Electric product range and other Timer Relays at EnvMart for premium industrial automation solutions tailored to your operational requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a wide supply voltage range from 24 to 240 V AC/DC.
The timing adjustment range is from 0.3 to 300 seconds, controlled via a knob adjustment.
It features a Dual Pole Double Throw (DPDT) contact configuration.
The maximum contact current is rated at 5 A.
The rated switching voltage is 250 V AC.
It has a height of 79.5 mm, a length of 22.9 mm, and a width of 90 mm.
The operating temperature range is from -20°C to 60°C.
It is designed for DIN Rail mounting, which simplifies installation and optimizes space.
It uses screw terminals for secure and reliable electrical connections.
It complies with several international standards including IEC 61812-1, GL, RCM, CSA, CCC, CE, EAC, UL, and UL 508.
It is suitable for timing control in automation systems, lighting control, heating and cooling system regulation, and sequential control operations in manufacturing processes.
This timer relay supports one timer function, specifically the OFF Delay mode.
