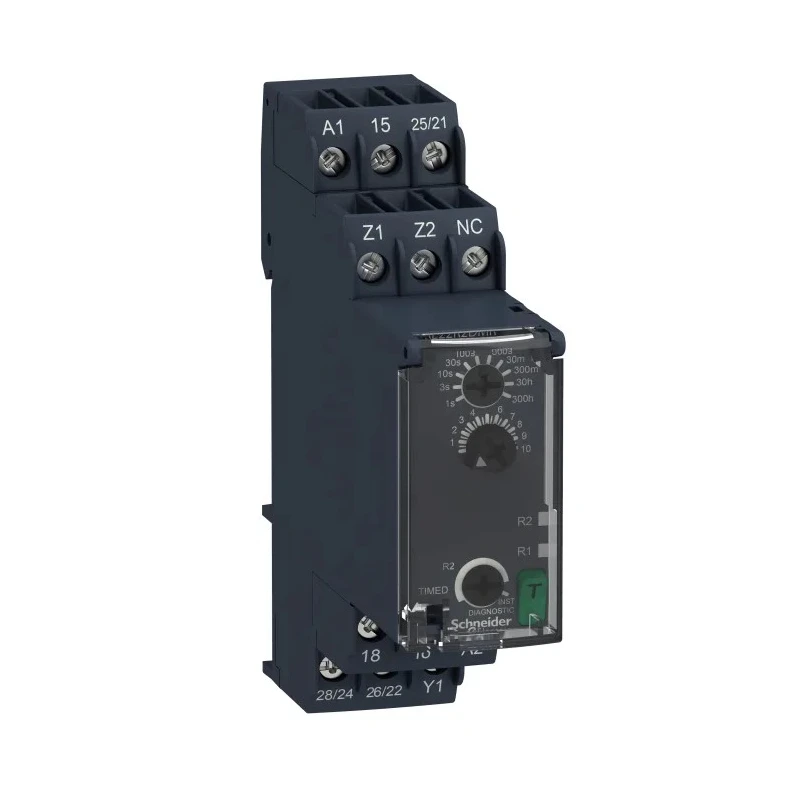

Schneider Electric Harmony Time Series DIN Rail Timer Relay, 2-Contact, DPDT, 240 V DC / 24 V AC / 240 V AC, Time RE22R2DMR

Schneider Electric RE22R2DMR is a reliable Harmony Time Series DIN Rail Timer Relay designed for precision timing control with a 2-contact DPDT configuration and voltage compatibility of 240 V DC, 24 V AC, and 240 V AC. It supports a wide variety of timing ranges starting from as fast as 0.05 seconds to as long as 300 hours, making it suitable for diverse industrial applications.

Mounting on standard DIN rails with screw terminals ensures secure and convenient installation. The relay features LED state indication for clear operational status and a self-extinguishing housing that enhances safety. It achieves a repeat accuracy of ±0.5%, conforming to IEC 61812-1 standards, ensuring consistent timing performance.

Designed to operate reliably within an ambient temperature range of -20°C to 60°C, it offers ingress protection ratings of IP20 for terminals, IP40 for housing, and IP50 at the front face, guarding against dust and foreign objects.

The contact switching capability includes a maximum current of 8 A and switching voltage up to 250 V AC, allowing for effective integration in control circuits. This compact device measures 79.5 mm in height, 90 mm in width, and 22.9 mm in length with a slim 22.5 mm profile width, enabling space-efficient panel layouts.

Compliance with multiple international standards such as CE, CSA, UL, and IEC 61812-1 guarantees high quality and safety.

Ideal industrial, automation, electrical control, HVAC, and manufacturing applications benefit from this timer relay's precision, durability, and versatility. The product is manufactured in Indonesia under the reputable Schneider Electric Harmony Time series.

DIN rail mount with screw terminal connections for secure installation. Wide timing range: from 0.05 seconds up to 300 hours for versatile applications. LED indication provides clear operational status. Repeat accuracy of ±0.5% compliant with IEC 61812-1 standard.

Operating temperature range from -20°C to 60°C for stability in diverse environments. Ingress protection ratings IP20, IP40, and IP50 protect against dust and damage. Contact current rated at 8 A with switching voltage up to 250 V AC.

Compact dimensions with 22.5 mm profile width save panel space. Multiple approvals including CE, CSA, UL, and IEC certifications ensure global compliance. Find more with EnvMart’s comprehensive electronic Timer Relay and DIN rail product selection for electrical automation and control solutions.
