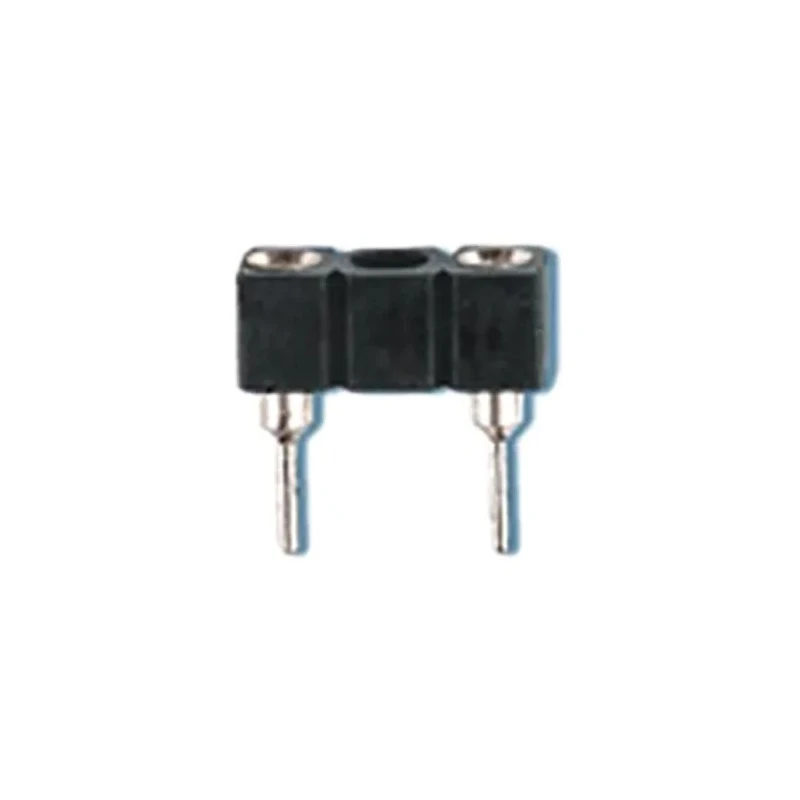

Littelfuse PCB Mount Fuse Holder 6.3A 250V AC Black Thermoplastic Body 56200001009
Specifications
| Country of Origin | China |
|---|---|
| Brand | Littelfuse |
| Body Material | Black Thermoplastic |
| Dimensions | 19559 Std: 10 dia x 6.5 mm, 19560 LP: 9.5 dia x 5.6 mm |
| Contact Material | Copper Alloy |
| Series | 562 |
| Wire Diameter | 0.6mm |
| Terminal type | Pin |
| Standards/Approvals | UL, RoHS |
| Pin Spacing | 5.08mm |
| Fuse holder pitch | 5.08mm |
Key Features
- Constructed with a durable black thermoplastic body for electrical insulation.
- Fuse holder features a 5.08mm pin spacing compatible with standard PCB layouts.
- Contact terminals use copper alloy providing reliable conductivity.
- Designed to hold TR5 and TE5 series fuses securely in electronic circuits.
- Wire diameter supported is 0.6mm ensuring proper fitting and connection.
- Meets UL and RoHS standards for safety and environmental compliance.
- Manufactured in China under Littelfuse quality standards.
Product Description
Littelfuse 56200001009 PCB Mount Fuse Holder is a high-quality electrical component designed for use in circuit protection applications at 6.3A current and 250V AC voltage.
This fuse holder features a black thermoplastic body providing excellent insulation and durability in demanding electronic environments. It supports a 5.08mm pin spacing, making it suitable for various PCB mounting needs.
The copper alloy contacts ensure reliable electrical connection and long-term performance. It accommodates TR5 and TE5 series fuses with wire diameter specification of 0.6mm, thus providing versatility across fuse types.
Dimensions are carefully defined with two variants: 19559 Std measuring 10 mm diameter by 6.5 mm height, and 19560 LP measuring 9.5 mm diameter by 5.6 mm height, supporting different fuse sizes.
Certified under UL and RoHS standards, this fuse holder maintains electrical safety and environmental compliance requirements essential for industrial, laboratory, and electronic manufacturing applications.
Constructed with a durable black thermoplastic body for electrical insulation. Fuse holder features a 5.08mm pin spacing compatible with standard PCB layouts. Contact terminals use copper alloy providing reliable conductivity.
Designed to hold TR5 and TE5 series fuses securely in electronic circuits. Wire diameter supported is 0.6mm ensuring proper fitting and connection. Dimensions include 19559 Std: 10 dia x 6.5 mm and 19560 LP: 9.5 dia x 5.6 mm variants.
Meets UL and RoHS standards for safety and environmental compliance. Manufactured in China under Littelfuse quality standards.
This PCB Mount Fuse Holder is ideal for use in industrial control panels, electrical distribution boards, and various automated equipment needing compact fuse protection. Its reliable contact design supports steady current flow minimizing circuit interruptions.
Explore more Littelfuse Fuse Holders and accessories for robust electrical circuit protection solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB mount fuse holder has a maximum current rating of 6.3A.
It is designed to handle a voltage of 250V AC.
The pin spacing for this fuse holder is 5.08mm, making it compatible with standard PCB layouts.
This holder is designed to securely hold TR5 and TE5 series fuses.
It supports a wire diameter of 0.6mm, ensuring proper fitting and connection.
The body is made of black thermoplastic, and the contact terminals are made of copper alloy.
The 19559 Std variant measures 10 mm in diameter by 6.5 mm in height, while the 19560 LP variant measures 9.5 mm in diameter by 5.6 mm in height.
It meets UL and RoHS standards for safety and environmental compliance.
It is manufactured in China under Littelfuse quality standards.
This fuse holder uses pin type terminals for connection.
It is suitable for use in industrial control panels, electrical distribution boards, and various automated equipment requiring compact fuse protection.
The series designation for this fuse holder is 562.
