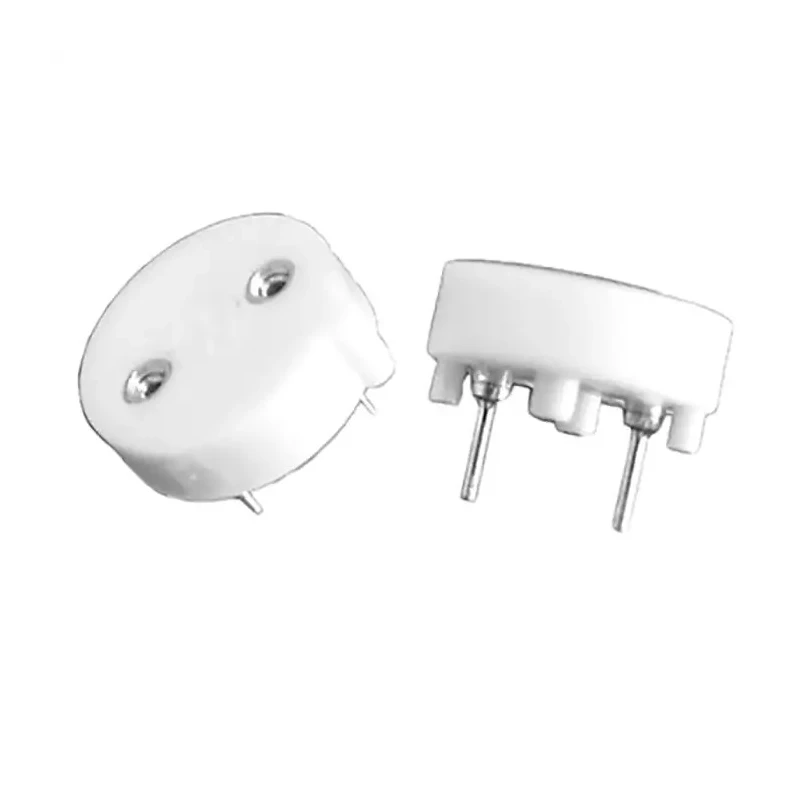

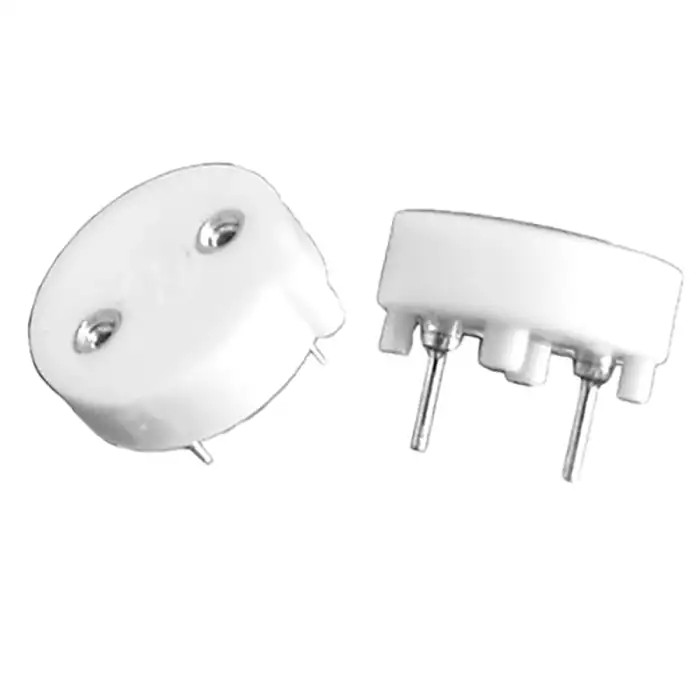

Littelfuse 6.3A PCB Mount Fuse Holder, 250V AC Thermoplastic Body, Copper Alloy Contacts 560 Series 56000001319
Specifications
| Country of Origin | China |
|---|---|
| Brand | Littelfuse |
| Body Material | Thermoplastic |
| Dimensions | 19559 Std: 10 dia x 6.5 mm, 19560 LP: 9.5 dia x 5.6 mm |
| Contact Material | Copper Alloy |
| Series | 560 |
| Maximum Operating Temperature | 260°C |
| Wire Diameter | 0.6mm |
| Terminal type | Pin |
| Standards/Approvals | RoHS, UL |
| Pin Spacing | 7.18mm |
| Fuse holder pitch | 5.08mm |
Key Features
- Supports fuse ratings up to 6.3 amps at 250 volts AC.
- Constructed with durable thermoplastic body ensuring electrical insulation and heat resistance.
- Copper alloy contact materials provide reliable electrical conductivity.
- Compact PCB mount design with 7.18mm pin spacing for secure installation.
- Compatible with TR5 and TE5 series fuses for versatile usage.
- Maximum operating temperature rated at 260°C for high temperature environments.
- Fuse holder pitch measures 5.08mm enabling standardized fuse placement.
- Wire diameter accommodated is 0.6mm, suitable for typical PCB wiring.
Product Description
Littelfuse model 56000001319 is a high-quality PCB Mount Fuse Holder designed for electrical and electronic circuit protection applications. Rated for 6.3 amps at 250 volts AC, this fuse holder features a robust thermoplastic body that offers excellent electrical insulation and heat resistance, suitable for demanding industrial and commercial environments.
The copper alloy contacts ensure reliable electrical conductivity and long service life. Its compact form factor with 7.18mm pin spacing facilitates easy and secure mounting onto printed circuit boards. This component is engineered to accommodate standard TR5 and TE5 series fuses, enhancing its versatility across multiple applications.
Designed to operate safely at temperatures up to 260°C, the fuse holder also features a fuse holder pitch of 5.08mm and supports wire diameters of 0.6mm, making it compatible with common wiring practices. The device offers two dimension variants: the standard type with 10 mm diameter by 6.5 mm height, and a low profile type with 9.5 mm diameter by 5.6 mm height, allowing design flexibility.
Fully compliant with RoHS and UL standards, the fuse holder meets international regulatory requirements for safety and environmental standards. Manufactured in China, this Littelfuse fuse holder is ideal for industrial automation, electrical control panels, instrumentation, and other applications demanding secure fuse mounting and replacement.
Supports fuse ratings up to 6.3 amps at 250 volts AC. Thermoplastic body for electrical insulation and heat resistance. Copper alloy contacts for reliable conductivity. 7.18mm pin spacing for PCB mounting. Compatible with TR5 and TE5 series fuses.
Maximum operating temperature: 260°C. Fuse holder pitch: 5.08mm. Supports wire diameter: 0.6mm. Dimensions: standard 10 dia x 6.5 mm, low profile 9.5 dia x 5.6 mm. RoHS and UL compliant for safety and environmental standards.
This Littelfuse fuse holder suits industrial, laboratory, manufacturing, and electrical automation environments, providing dependable fuse mounting solutions. Explore more products in the Fuse Holders & Accessories category on EnvMart for comprehensive circuit protection options.
Explore more products in our Fuse Holders & Accessories category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports fuse ratings up to 6.3 amps at 250 volts AC.
The body is made from thermoplastic, while the contacts are constructed from copper alloy, providing reliable electrical conductivity.
The maximum operating temperature is rated at 260°C.
It features a pin spacing of 7.18mm for secure installation onto printed circuit boards.
It is compatible with TR5 and TE5 series fuses, enhancing its versatility across various applications.
The standard variant measures 10 mm in diameter and 6.5 mm in height, while the low profile variant measures 9.5 mm in diameter and 5.6 mm in height.
It accommodates wire diameters of 0.6mm, suitable for typical PCB wiring.
The fuse holder pitch measures 5.08mm, allowing for standardized fuse placement.
Yes, it is fully compliant with RoHS and UL standards, meeting international regulatory requirements for safety and environmental standards.
It uses a pin terminal type for secure connections.
It is manufactured in China.
This model is suitable for industrial automation, electrical control panels, instrumentation, and other applications requiring secure fuse mounting.
