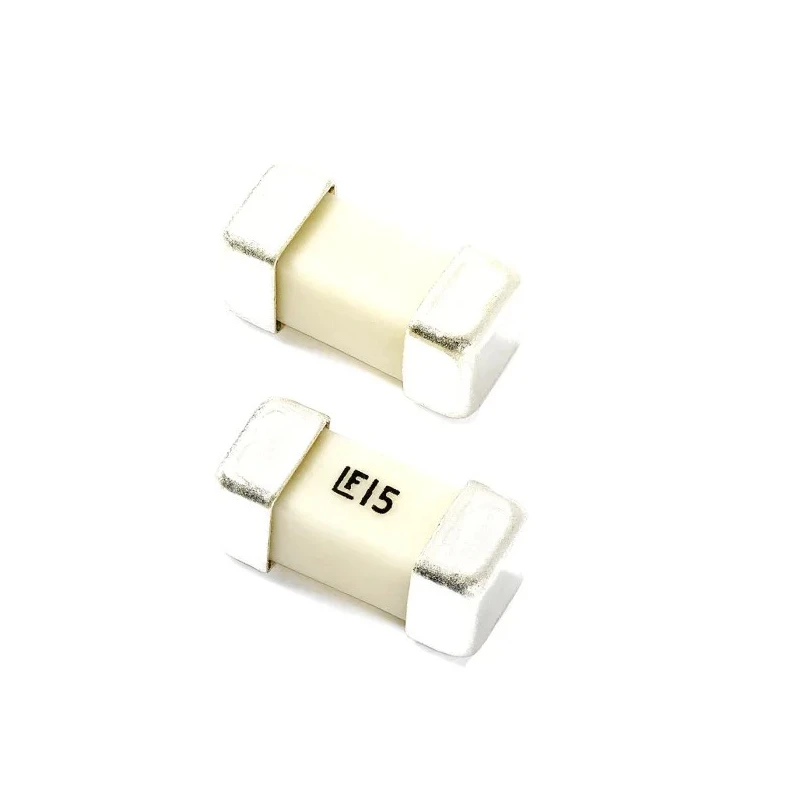

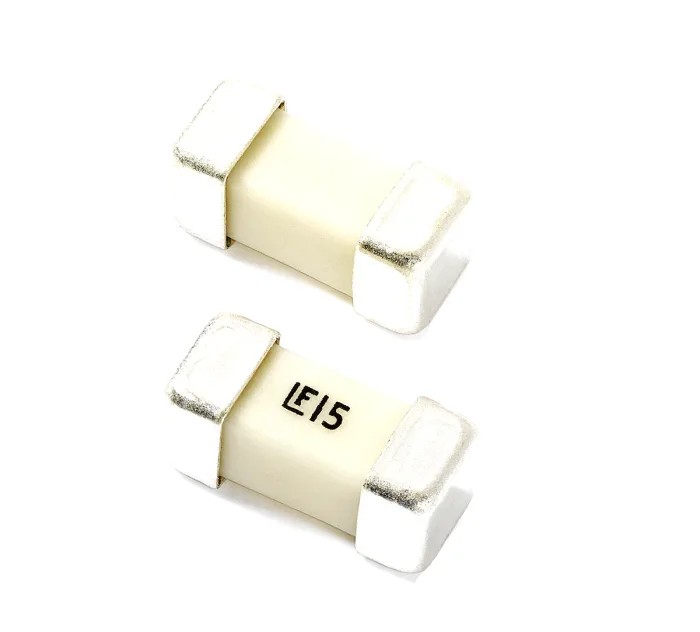

Littelfuse Non-Resettable Fuse Ceramic Body 8A 125V Fast Acting 476 Series 0476008.MR

Littelfuse 0476008.MR is a Non-Resettable Fuse featuring a ceramic body designed for reliable circuit protection at 8A current rating and 125V voltage. This fast acting fuse is part of the 476 series renowned for its compact size and capability to provide primary circuit protection in high voltage and surface mount technology applications.

The fuse offers a breaking capacity of 100A, ensuring robust interruption during overcurrent events. Its physical dimensions measure 2.69mm in width, 3.15mm in height, and 6.1mm in depth, making it suitable for space-constrained installations.

Operating temperatures range widely from -55°C maximum to 125°C minimum, enabling stable performance under various environmental conditions. The silver plated brass terminals guarantee excellent electrical conductivity, while the ceramic body enhances heat resistance and durability.

This fuse is ideally used in industrial, commercial, and laboratory electronic equipment such as LED lighting, LCD and LED televisions, white goods, power supply units, and medical apparatus. Its fast acting characteristic makes it suitable for protection of high-value silicon ICs, alarm systems, audio/visual equipment, portable telephones, and computer boards.

The product is supplied on a reel, facilitating efficient insertion in manufacturing processes, which helps improve production efficiency. It also complies with RoHS standards, reflecting compliance with environmental regulations.

The fuse has a breaking capacity of 100A for reliable circuit protection. The body is constructed from ceramic material ensuring durability and heat resistance. Physical dimensions are compact at 2.69mm width, 3.15mm height, and 6.1mm depth.

Operating temperature ranges from -55°C to a minimum of 125°C for stable performance. Terminal material is silver plated brass for good electrical conductivity. The fuse has a resistance of 11.2mΩ to maintain circuit integrity.

Supplied on a reel package for efficient manufacturing insertion. Complies with RoHS standards ensuring environmental safety. 476 series designed for compact high voltage applications including LED lighting and power supply units.

Suitable for surface mount technology applications protecting sensitive electronic components.

This Littelfuse Non-Resettable Fuse 0476008.MR is ideal for a variety of electronics and electrical protection needs across industrial, laboratory, construction, HVAC, manufacturing, water treatment, and commercial applications. Explore more from Littelfuse and related fuse products in the EnvMart catalog for comprehensive electrical safety solutions.
