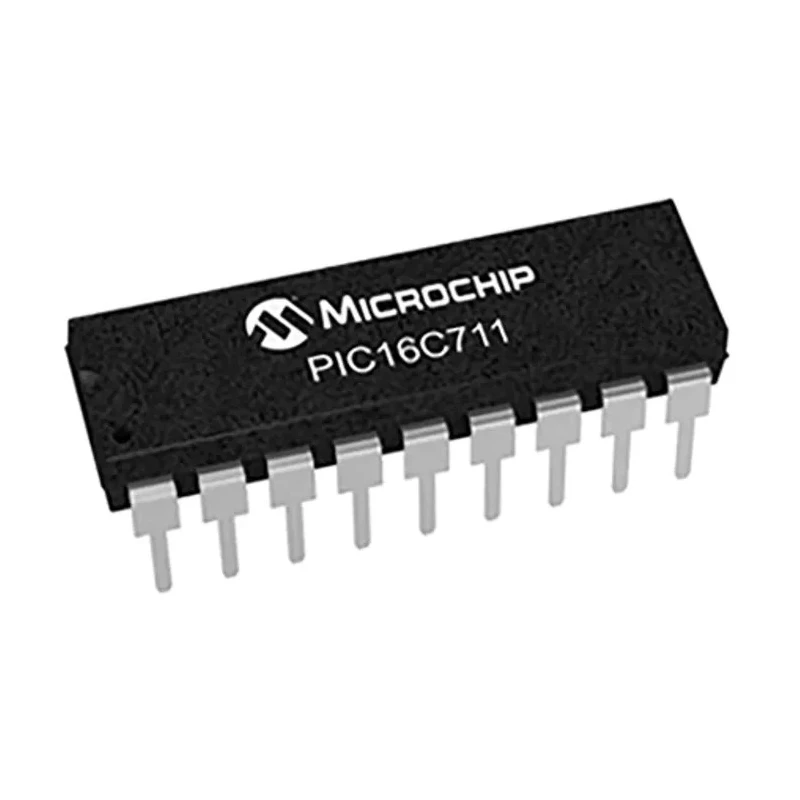

Microchip 8-bit PIC Microcontroller 20 MHz, 1.75kB OTP, 18-Pin PDIP PIC16C711-04I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 3.81mm |
| Length | 23.5mm |
| Model | PIC16C711-04I/P |
| Width | 7.11mm |
| Mount Type | Through Hole |
| Series | PIC16C |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 68bit |
| Interface Type | SPI |
| Pin Count | 18 |
| Automotive Standard | ISO 9001 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 1.75kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 22 |
| Analogue Comparators | 2 |
| Number of Timers | 1 |
| Instruction Set Architecture | RISC |
| ADCs | 4 x 8 Bit |
| Program Memory Type | OTP |
Key Features
- Features a RISC instruction set with 35 instructions for efficient processing.
- Includes a 1.75kB OTP program memory suitable for legacy applications.
- Operates within a voltage range of 2V to 5.5V ensuring flexible power supply compatibility.
- Equipped with 22 programmable I/Os and 4 channels of 8-bit ADCs for versatile interfacing.
- Supports SPI interface for communication with peripheral devices.
- Incorporates onboard features such as watchdog timer, power-on reset, and brown-out reset except for PIC16C71 model.
- Temperature operating range from -40°C to 85°C ensuring reliability in industrial environments.
- Compliant with ISO 9001 automotive standard, ensuring quality manufacturing process.
Product Description
Microchip PIC16C711-04I/P is an 8-bit PIC microcontroller featuring a clock frequency of 20 MHz and 1.75kB OTP program memory in an 18-pin PDIP package. This microcontroller is designed with Microchip’s mid-range architecture and 35 14-bit instruction set providing up to 5 MIPS performance, making it suitable for legacy embedded applications.
Operating within a supply voltage range of 2V to 5.5V and a temperature range of -40°C to 85°C, this device supports industrial and automotive-grade environments. It includes 22 programmable input/output pins and 68 bits of RAM memory, enabling flexible interfacing and data handling. The onboard SPI interface facilitates communication with external peripherals.
Key features include an 8-level hardware stack, watchdog timer, power-on reset, power-up timer, oscillator start-up timer, and brown-out reset (except for the basic PIC16C71 model). It also integrates four 8-bit analogue-to-digital converters for signal processing. The microcontroller package measures 23.5 mm by 7.11 mm by 3.81 mm in a through-hole PDIP format, ensuring compatibility with standard PCB layouts.
This microcontroller is suitable for legacy embedded systems, industrial automation, and low-to-mid complexity control applications where stable performance and reliable operation are required. While now largely replaced by flash-based variants for new designs, the PIC16C711-04I/P remains widely used in maintenance and legacy equipment.
RISC instruction set architecture optimized for efficient control applications. 1.75kB OTP program memory preserves legacy design compatibility. Operates up to 20 MHz clock frequency for mid-range processing speed. 22 programmable I/O pins for versatile interfacing.
Onboard SPI interface for peripheral communication. Robust operating temperature range from -40°C to 85°C for harsh environments. ISO 9001 automotive standard certified for quality assurance. Includes watchdog timer and brown-out reset for reliable operation.
Through-hole 18-pin PDIP package dimensions optimized for legacy PCB layouts. Explore other Microcontrollers and semiconductor components at EnvMart for your electronic development and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC16C711-04I/P microcontroller is 20 MHz.
This microcontroller features a program memory size of 1.75kB, utilizing OTP (One-Time Programmable) memory.
The operating temperature range for this microcontroller is from -40°C to 85°C, making it suitable for industrial environments.
The PIC16C711-04I/P is equipped with 22 programmable I/O pins for versatile interfacing.
This microcontroller supports an SPI interface for communication with external peripherals.
The dimensions of this microcontroller are 23.5 mm in length, 7.11 mm in width, and 3.81 mm in height.
The PIC16C711-04I/P operates within a supply voltage range of 2V to 5.5V.
This model comes in an 18-pin PDIP (Plastic Dual In-line Package) format, suitable for through-hole mounting.
Yes, this microcontroller is compliant with the ISO 9001 automotive standard, ensuring a quality manufacturing process.
It incorporates four 8-bit analogue-to-digital converters (ADCs) for signal processing.
This microcontroller features a RAM size of 68 bits, enabling efficient data handling.
The PIC16C711-04I/P utilizes a RISC (Reduced Instruction Set Computing) instruction set architecture optimized for efficient control applications.
