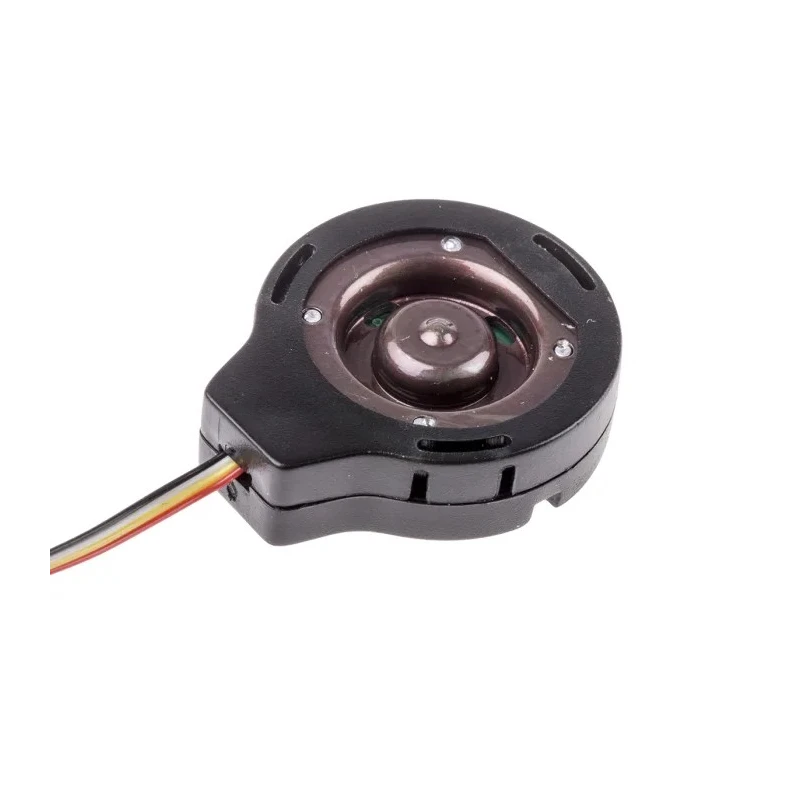

TE Connectivity FX19 Series Compression Load Cell Plastic Housing 29.5mm Width 609.5mm Length 8mm Depth

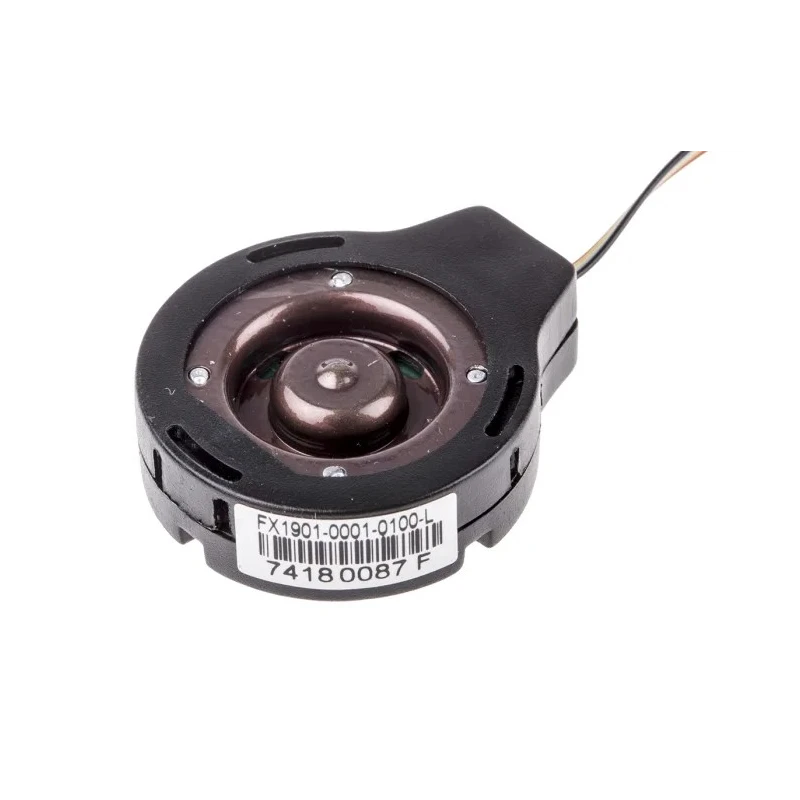

TE Connectivity FX1901-0001-0100-L compression load cell offers a reliable solution for sensing compression forces up to 45.4 kg. Featuring a robust plastic housing with dimensions of 29.5mm width, 609.5mm length, and 8mm depth, this load cell integrates Microfused™ technology to provide superior long-term span and zero stability without the need for age-sensitive epoxies.

Typical use cases include physical therapy equipment, patient weight scales, hand tool force monitoring, assembly force measurement, chiropractic and exercise devices, copy machines, vending systems, and appliance unbalance monitoring.

The load cell has a gauge resistance of 464Ω and supports a maximum DC voltage of 5V, enabling precise strain gauge measurement and enhanced durability. It functions optimally within an operating temperature range from 0°C to 50°C, making it suitable for various controlled environments. The compact design ensures integration flexibility in limited spaces.

With low noise and deflection characteristics, the FX19 Series excels in applications demanding high resolution and sensitivity. Its virtually unlimited lifecycle and high over-range capabilities under low strain operation make it ideal for long-term deployment in demanding settings.

Durable plastic housing with compact dimensions for versatile applications. Compression force measurement from 0 lb to 45.4 kg with high accuracy. 464Ω gauge resistance supports precise strain sensing. Wire terminal for reliable electrical connections.

Operating temperatures from 0°C to 50°C suitable for various environments. Maximum DC voltage rating of 5V ensuring safe electrical operation. Microfused™ technology enhances long-term stability and lifecycle. Low noise and low deflection design for sensitive measurements.

Ideal for medical, industrial, and consumer product applications. Includes certifications such as RoHS compliance and IEC standards.

This TE Connectivity FX19 Series Load Cell is an excellent choice for those requiring dependable compression force sensing within a compact form factor. Explore more precision sensors and Load Cells in our Electronics & Electricals category on EnvMart for your industrial and laboratory needs.
