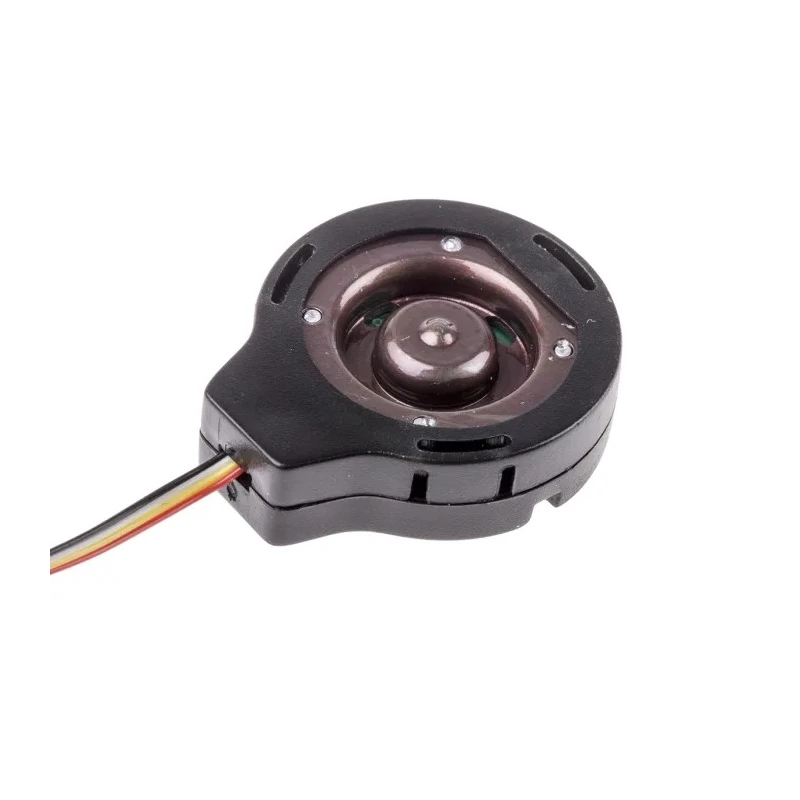

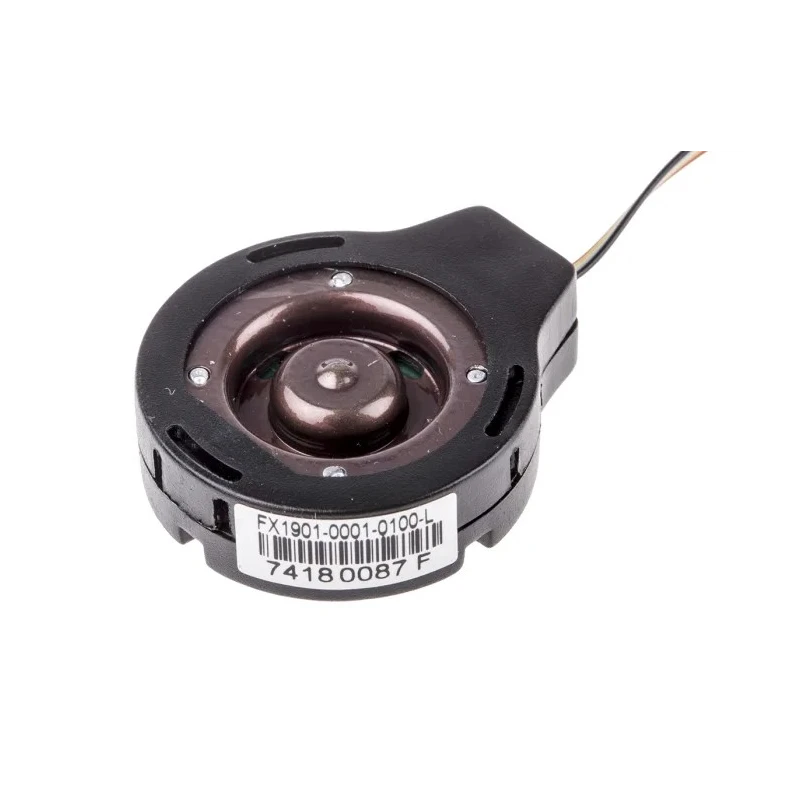

TE Connectivity FX19 Series Compression Load Cell Plastic Housing 464Ω 0 lb to 45.4 kg Measurement

TE Connectivity FX1901-0001-0100-L FX19 Series Compression Load Cell offers precision force measurement for compression applications with a capacity of 45.4 kg. Featuring Microfused™ technology, it provides superior long term span and zero stability, eliminating the dependency on age-sensitive epoxies common in traditional load cells.

Constructed with a durable plastic housing and wire terminal type, the Load Cell measures 609.5 mm long, 29.5 mm wide, and 8 mm deep. It operates efficiently within the temperature range of 0°C to 50°C and supports a maximum DC voltage of 5 V dc.

Applications include patient weight measurement, hand tool force sensing, assembly line force verification, chiropractic devices, exercise equipment, vending systems, and appliance monitoring.

The FX19 series ensures a virtually unlimited life cycle expectancy, exceptional resolution, and high over-range capabilities at low strain levels. Its compact size and low noise characteristics make it suitable for sensitive measurement tasks and integration into smart devices.

Standards compliance includes IEC55022 Class A, IEC61000-4-3, CE marking, and RoHS directives, ensuring quality and environmental responsibility. Compact plastic housing ensures lightweight and durable design. Microfused™ technology eliminates age-sensitive epoxies for excellent long term stability.

Operating temperature range from 0°C to 50°C supports various environments. Ideal for medical, consumer, and laboratory force measurement applications. Terminal type is wire for flexible mounting options. Maximum DC voltage rating of 5 V dc ensures safe operation.

Dimensions include 609.5 mm length, 29.5 mm width, and 8 mm depth. Complies with IEC55022 Class A, IEC61000-4-3, CE, and RoHS standards. Explore the FX19 series for reliable compression force measurement in industrial, laboratory, medical, and consumer environments through the EnvMart catalog.
