TE Connectivity Piezoelectric Vibration Sensor, 0 °C to 70 °C, Length 41mm, Width 22mm, Depth 0.04mm 1-1002908-0

TE Connectivity 1-1002908-0 piezoelectric vibration sensor operates effectively within a temperature range of 0 °C to 70 °C, making it suitable for various industrial and automation applications.

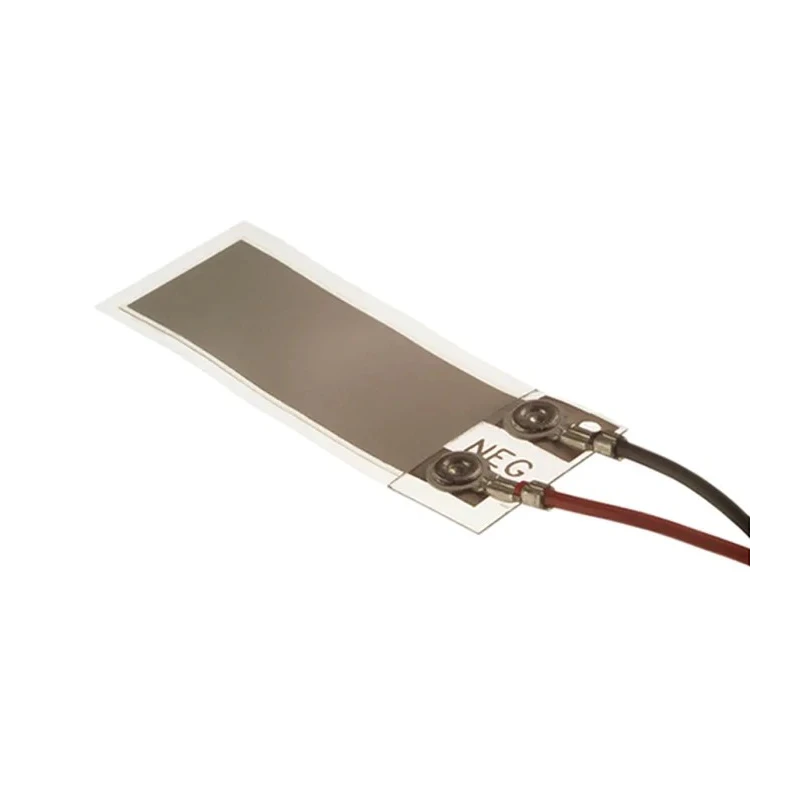

This sensor uses MEAS piezoelectric film technology, featuring silver ink electrodes printed on a rectangular polymer film that provides high piezoelectric activity for sensitive vibration response.

Its ultra-thin profiling (0.04mm depth) combined with length and width dimensions of 41mm and 22mm respectively, allows it to be adhered directly to surfaces with adhesives such as epoxy resin or double-sided tape. This facilitates easy integration into machinery or monitoring systems.

For versions requiring electrical connections, 28 AWG wires with riveted lugs can be attached using crimps, eyelets, or conductive epoxy, allowing customization based on the application needs.

This vibration sensor is used to record timing events, detect dynamic strains, measure impacts, and serve as sensor elements in monitoring instruments and control environments. Its non-hazardous certification status makes it an ideal choice for standard industrial automation and control systems.

Key specifications include a robust construction with silver ink electrodes, varying thickness and sizes within the DT series, and suitability for precise vibration sensing tasks in environments ranging from laboratory electronics to heavy machinery monitoring.

Constructed with silver ink screen printed electrodes on rectangular piezo film. Ultra-thin polymer film with high piezo activity ensures sensitive vibration detection. Compact dimensions: 41mm length, 22mm width, and 0.04mm depth for flexible installation.

Suitable for sensing dynamic strain, impact counting, and event timing. Can be surface-mounted using epoxy resin or double-sided tape without lead wires. Leads can be attached with crimps, eyelets, or conductive epoxy for custom configurations.

Part of the DT series with no hazardous area certification, ideal for industrial and automation applications. Low profile design enables minimal intrusion in measurement setups.

This sensor supports applications across industrial production lines, manufacturing equipment, laboratory instrumentation, and HVAC systems where vibration monitoring and impact detection are critical for operational efficiency and safety.
