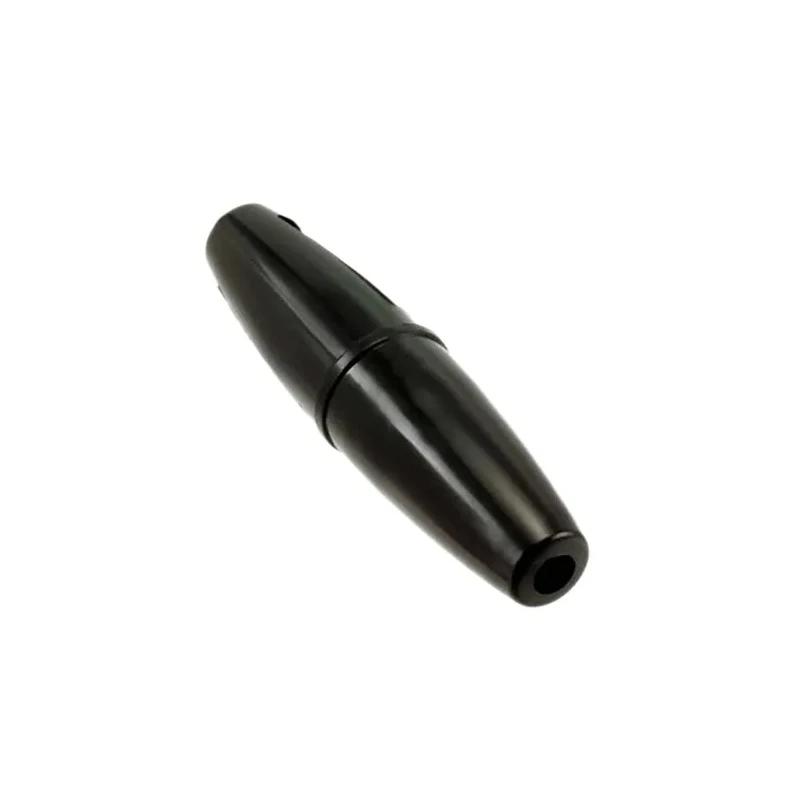

Bulgin 10A In-line Fuse Holder 50V, Glass Filled Polyester and Nylon Body, IP66/IP68 Rated FX0180/BK

Bulgin FX0180/BK is a high-quality 10A rating In-line Fuse Holder designed to operate at 50 volts. It is manufactured from glass filled polyester, nylon, polyamide 6, polycarbonate, and polybutene materials, ensuring excellent durability and electrical insulation properties.

This fuse holder features a compact, fully enclosed design that protects the housed cartridge fuse from environmental factors and allows convenient fuse access and replacement. It supports cartridge fuses measuring 5x20 mm, 6.3x25 mm, and 6.3x32 mm sizes, making it versatile for various electrical applications.

The FX0180/BK model has an ingress protection rating of IP66 and IP68, providing robust protection against dust and water ingress aligned with the EN60529 standard, making it suitable for demanding industrial environments.

The body material provides resistance to physical and environmental stresses, while the brass nickel-plated screw terminals facilitate quick and reliable electrical connections without the need for specialized tooling. It accepts lead wires sized up to 1mm².

This fuse holder is rated to operate safely across a wide temperature range from -55°C to 90°C and complies with RoHS, UL, UL94HB, and UL94V-0 standards ensuring conformity with global safety and environmental requirements.

Typical applications include electrical appliances, portable electronics, LCD monitors, DVD players, game systems, laptops, printers, battery packs, and general industrial electrical circuits where protection from overcurrent is essential to safeguard wiring and equipment.

Two versions exist to meet different protection needs: a standard enclosed fuse holder and a sealed IP66 variant equipped with a PVC grommet and nitrile O-ring to maintain ingress protection depending on cable size. The FX0180/BK is the standard enclosed type designed for easy installation and reliable protection.

Constructed using glass filled polyester, polyester, glass filled nylon, nylon, polyamide 6, polycarbonate, and polybutene materials. Provides IP66 and IP68 ingress protection with sealed variants available. Rated for 10 amperes maximum current at 50 volts operational voltage.

Compatible with 5x20 mm, 6.3x25 mm, and 6.3x32 mm cartridge fuses. Features brass screw terminals and accepts 1mm² lead wire size. Operating temperature range from -55°C to 90°C. Complies with RoHS, UL, UL94HB, and UL94V-0 standards.

Bulgin's FX0180/BK in-line fuse holder is ideal for industrial, electrical, and electronic applications, offering a reliable and robust option for fuse installation and protection. Available from EnvMart with guaranteed new product condition and compliance.
