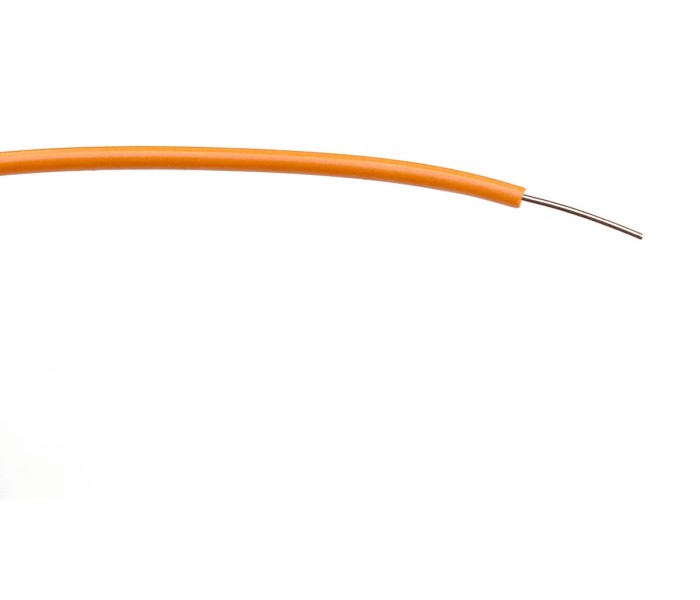

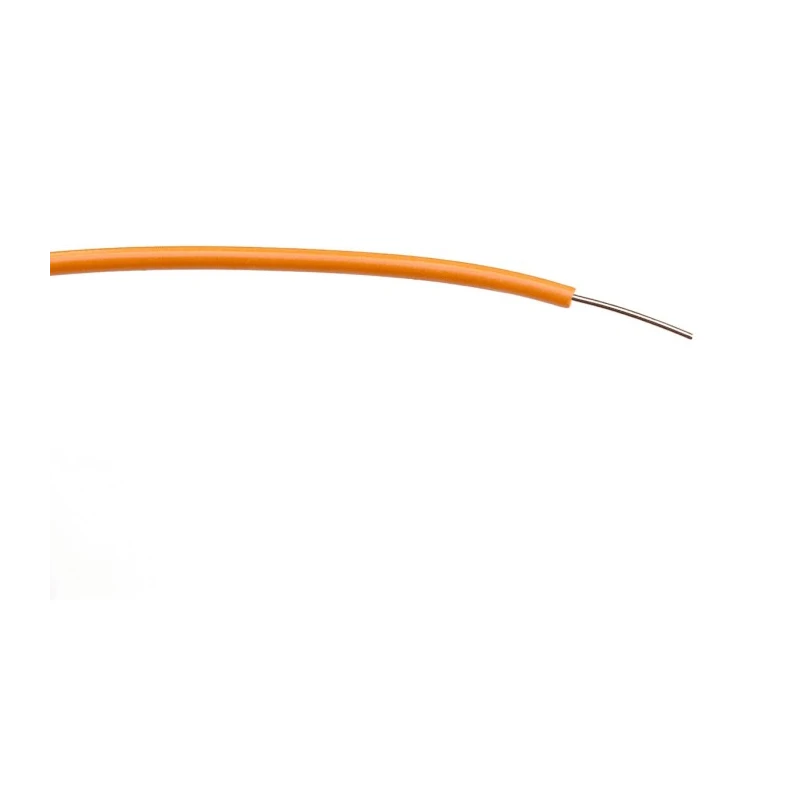

RS PRO Orange Hook Up Wire 23 AWG 1/0.6 mm Core Strands 100 m PVC Insulated 1kV AC Rated 196-4303

RS PRO 196-4303 Hook Up Wire is a high-quality orange insulated single-core electrical wire rated for 1kV AC. It utilizes a tin annealed copper conductor with a nominal core strand size of 1 x 0.6 mm. This cable is manufactured to provide excellent flexibility, durability, and reliable performance in low voltage applications.

The robust PVC jacket offers effective insulation, resistance to environmental factors, and color coding ease for wire harnessing and installations. With a maximum operating temperature of 85°C and minimum of -15°C, this wire supports a variety of industrial, commercial, and domestic electrical wiring tasks.

Compliant with recognized standards such as BS4808, BS EN50636-3, Defence Standard 61-12 (Part 6), and IEC60228, this hook up wire ensures safety and consistent performance across diverse applications.

The conductor resistance at 20°C is 64.1 ohms per kilometer, and the cable has a maximum outer diameter including insulation of 1.3 mm. Such specifications make this wire ideal for use in circuit boards, computer internals, mobile devices, vehicle lighting systems, and factory machine wiring.

Due to its flexible PVC sheath and quality copper conductors, the wire facilitates easy and neat cable installation with excellent electrical conductivity. It is well-suited for internal wiring applications where performance, reliability, and safety are essential.

This Hook Up Wire features a single core with 1 x 0.6 mm tin annealed copper conductor strands. The wire has a durable polyvinyl chloride (PVC) orange jacket for insulation and color coding. It offers a maximum operating temperature of 85 degrees Celsius and minimum of -15 degrees Celsius.

The cable's overall diameter with insulation is 1.3 mm maximum. The wire is designed for flexible, reliable electrical connections in low voltage multi-purpose installations. The wire conforms to standards including BS4808, BS EN50636-3, Defence Standard 61-12 (Part 6), and IEC60228.

Used widely for equipment wiring in electronics, automotive lights, circuit boards, and small appliances. Its conductor resistance is approximately 64.1 ohms per kilometer at 20 degrees Celsius. Explore the range of RS PRO wires and cables at EnvMart for trusted quality and performance in electrical and electronic wiring applications.
