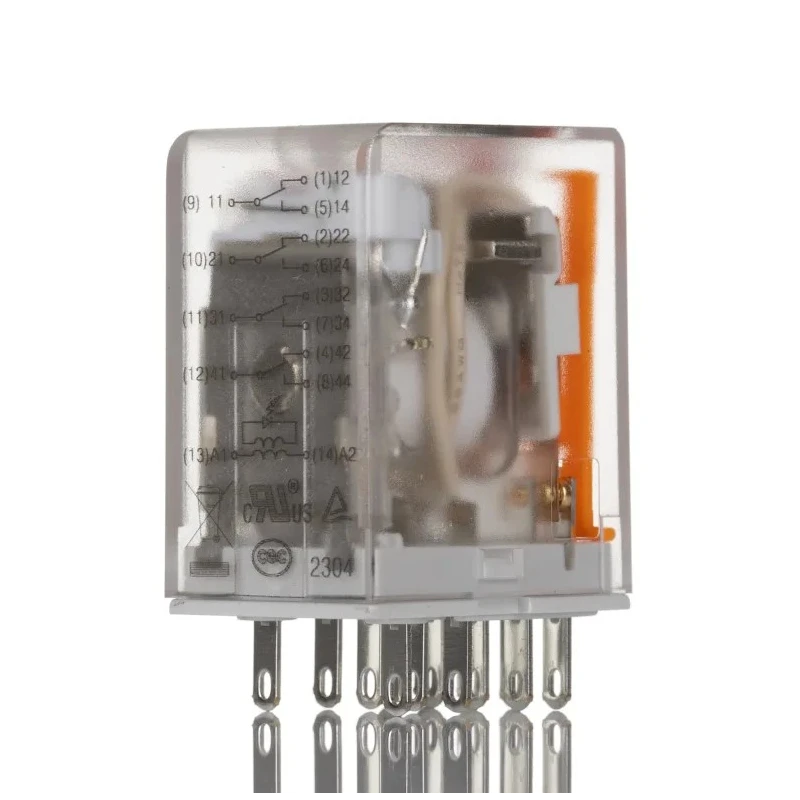

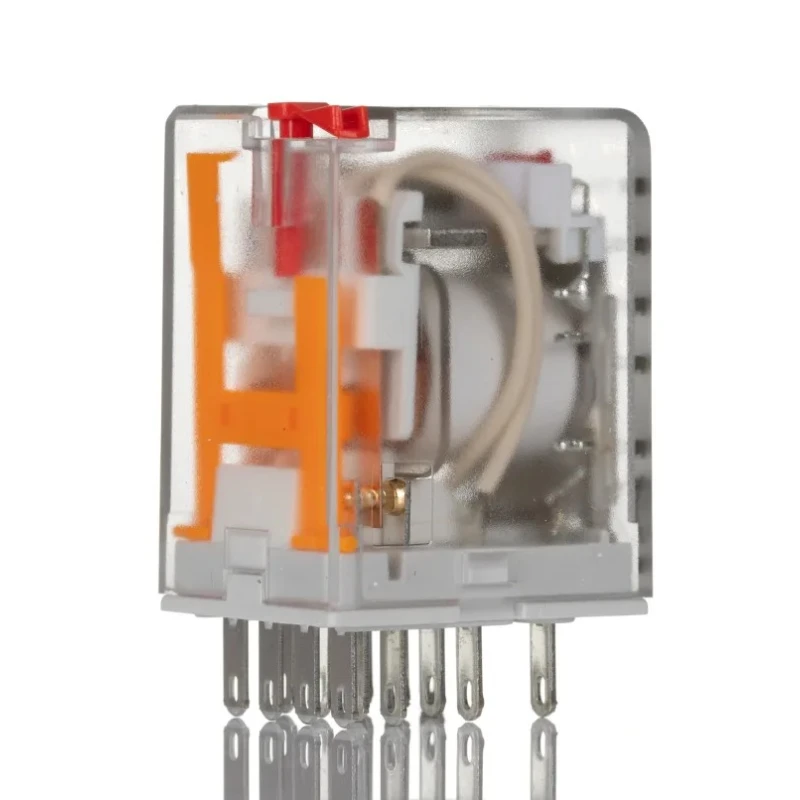

Weidmüller Panel Power Relay 230V AC Coil 5A Switching Current 4PDT DRM Series 7760056104
Specifications
| Country of Origin | China |
|---|---|
| Brand | Weidmüller |
| Height | 28mm |
| Length | 21.5mm |
| Width | 21.5mm |
| Mount Type | Panel |
| Contact Material | Silver Alloy |
| Series | DRM |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Plug-In |
| Standards/Approvals | cURus |
| Coil Resistance | 15kΩ |
| Coil Voltage | 230V ac |
| Switching AC Voltage | 250V ac |
Key Features
- The relay features a compact panel mount design suitable for space-limited installations.
- Constructed with silver alloy contacts ensuring high conductivity and reliability.
- Designed for a mechanical service life of up to 20 million switching cycles for outstanding durability.
- Coil resistance is 15kΩ, optimized for efficient operation with 230V AC supply.
- Operates reliably across a temperature range of -40°C to 55°C for diverse environments.
- Suitable for control systems including HVAC, automation, and industrial machinery applications.
- Panel mount type with plug-in terminals facilitates easy installation and maintenance.
- Complies with cURus standards confirming safety and quality compliance.
Product Description
Weidmüller 7760056104 Panel Power Relay is an industrial-grade power relay designed for panel mounting with a coil voltage rating of 230V AC and capable of switching electrical currents up to 5A. Part of the DRM series, this relay has a contact configuration of 4PDT (four poles double throw) and utilizes silver alloy for contact material, providing excellent electrical conductivity and longevity.
This relay is engineered for reliable operation in demanding industrial and automation environments. With a coil resistance of 15kΩ, it maintains efficient coil performance. Its mechanical service life extends to 20 million cycles, ensuring sustained durability and performance over long-term use.
The relay supports switching AC voltages up to 250V AC and functions efficiently within an operating temperature range from -40°C to 55°C. Its compact dimensions of 21.5mm length and width with a height of 28mm enable its integration into tight panel spaces.
Applications include HVAC systems, factory automation control, and operation of various industrial machinery where reliable switching and control of electric loads are crucial. Coupled with plug-in terminals and panel mount design, it facilitates straightforward installation and servicing in control panels.
The relay's compact design allows for easy installation in limited spaces. The relay is designed for general-purpose applications, providing versatility. With a mechanical service life of 20 million cycles, this relay is durable and reliable.
The optional test button allows for quick and easy testing of the relay's functionality. The silver alloy contact material ensures high conductivity and reliability. Designed to operate within -40°C to 55°C for broad environmental suitability.
Complies with cURus safety and quality approvals. Panel mount type with plug-in terminal design for convenient assembly.
This Weidmüller power relay is a robust and versatile component ideal for use in electrical panels, industrial automation, HVAC control systems, and general-purpose switching tasks that demand reliability and longevity. Discover more high-quality Power Relays and related electrical components in our dedicated EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage rating of this power relay is 230V AC.
This relay can handle a maximum switching current of 5A.
The contact configuration of this relay is 4PDT (four poles double throw).
The relay operates efficiently within a temperature range of -40°C to 55°C.
This model features plug-in terminals for easy installation and maintenance.
The mechanical service life of this relay is rated for up to 20 million switching cycles.
The dimensions of the relay are 21.5mm in length and width, and 28mm in height.
The contacts of this relay are made from silver alloy, ensuring high conductivity and reliability.
This relay complies with cURus standards for safety and quality.
This relay is suitable for applications in HVAC systems, factory automation control, and various industrial machinery.
The coil resistance of this power relay is 15kΩ.
This relay can switch AC voltages up to 250V AC.
