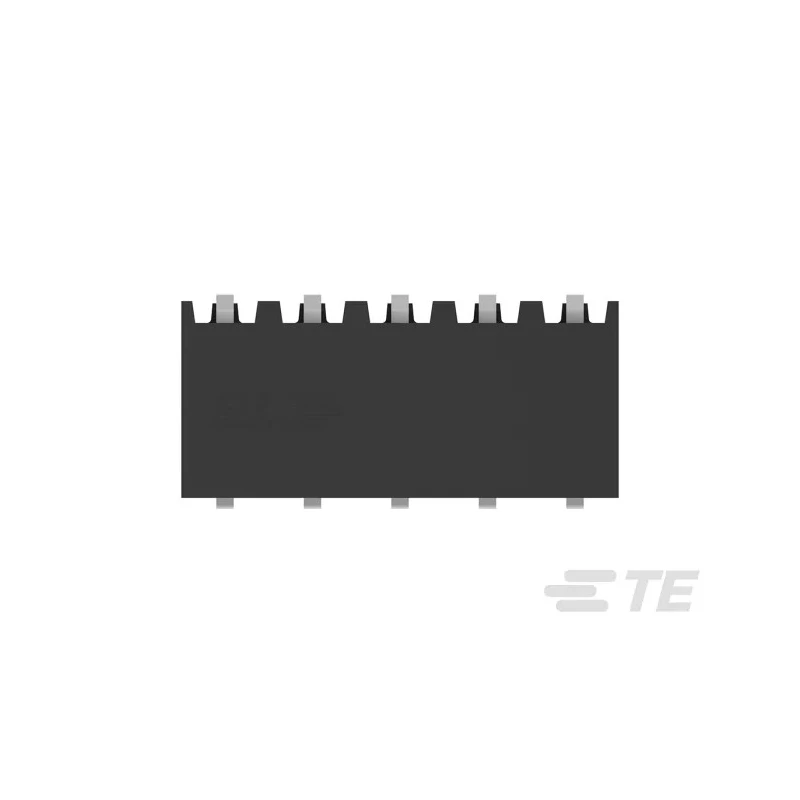

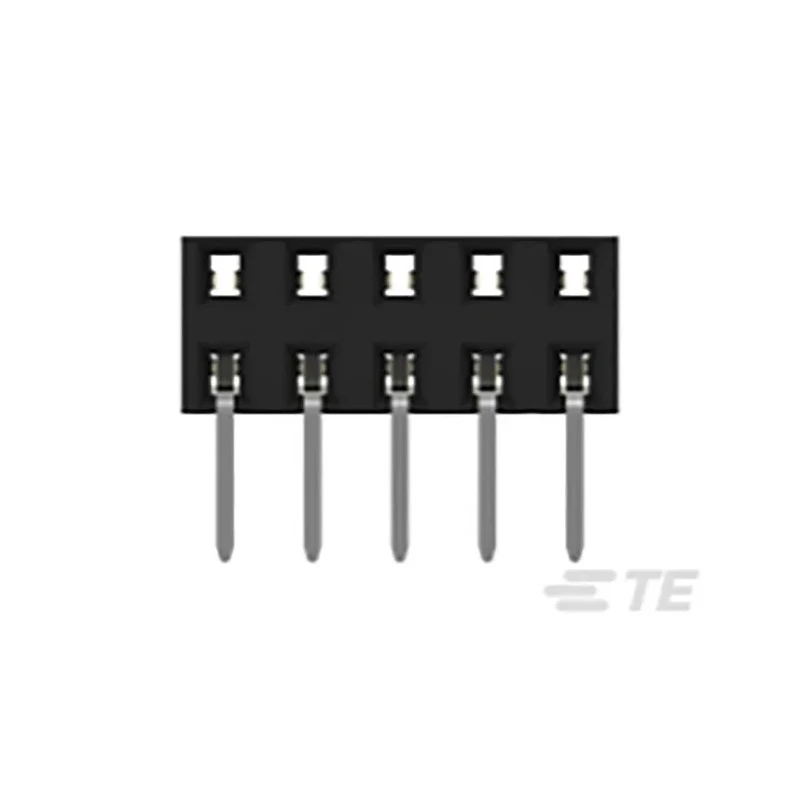

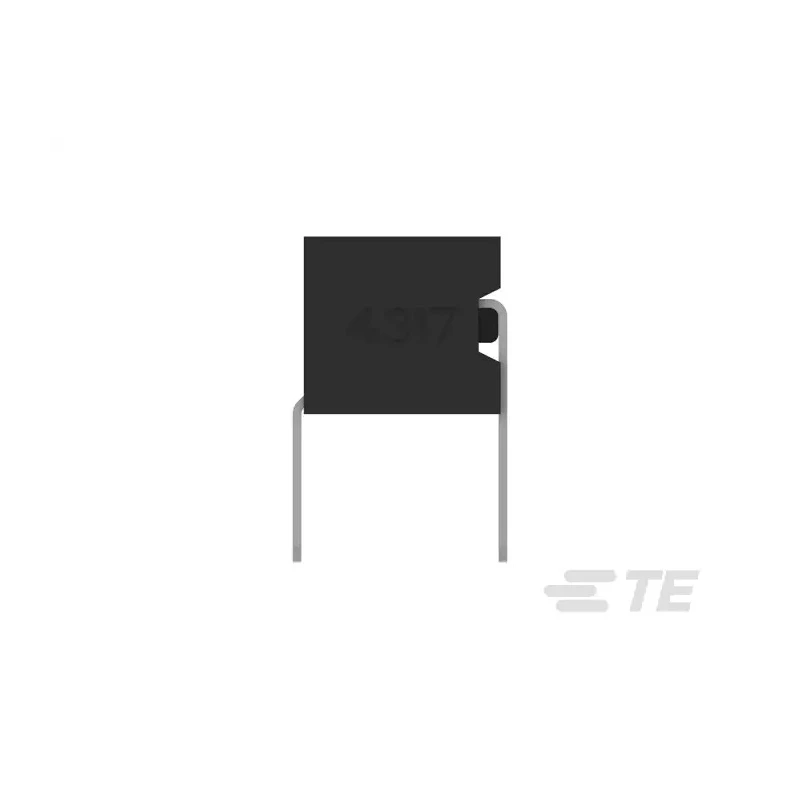

TE Connectivity AMPMODU Series Straight Through Hole PCB Socket 10-Contact 2 Row 2 mm Pitch Solder 1-2314926-0

TE Connectivity 1-2314926-0 AMPMODU Series Straight Through Hole PCB Socket is a high-quality electronic component designed for secure board-to-board connections in demanding industrial and commercial environments. Featuring 10 contacts arranged in 2 rows with a 2 mm pitch, this socket provides efficient space utilization on printed circuit boards, occupying 38% less area compared to conventional 2.54 mm centerline designs.

The housing is fabricated from liquid crystal polymer, offering excellent mechanical strength and thermal resistance. The contacts are made of bronze and plated with nickel and tin to ensure long-lasting conductivity and corrosion resistance. This socket supports a current rating of 12A and a voltage rating of 650V, making it suitable for a wide range of electronic applications.

Designed for through-hole mounting with straight orientation, it ensures reliable solder termination and easy assembly in automated manufacturing environments. Operating temperature ranges from -65°C to 105°C permit usage in various harsh industrial settings.

Key technical features include a dual beam receptacle contact design, which provides two-point electrical stability for dependable interconnection performance. The socket’s dual entry vertical and horizontal configurations offer versatility for diverse PCB stacking and interconnection requirements.

This product meets environmental standards with halogen-free and low halogen materials, supporting eco-friendly manufacturing and use. Packaging options include tube, tape, and reel formats to suit different production needs, with compatibility for PCB thicknesses ranging from 1.6 mm to 2.4 mm.

Applications for this PCB socket cover industrial controls, PLC systems, servo drive units, instrumentation and test equipment, material handling systems, and building automation, demonstrating its broad utility in modern electronics.

The AMPMODU Series by TE Connectivity is known for quality and reliability, making the 1-2314926-0 model an excellent choice for intricate PCB assembly projects requiring robust electrical connections.

Explore EnvMart's extensive range of PCB sockets and Connectors for comprehensive solutions tailored to industrial and electronic component needs. The housing is made from liquid crystal polymer for durability and stability.

It operates at a voltage rating of 650V and a current of 12A. The socket has a straight orientation and through-hole mount type for secure PCB assembly. Contact material is bronze with nickel plated and tin plating for corrosion resistance.

Designed for operating temperatures from -65°C to 105°C. Dual beam receptacle contact ensures two-point electrical stability for reliable connectivity. Occupies 38% less PCB space compared to standard 2.54 mm centerline sockets.

Environmental compliance includes halogen free and low halogen standards. Compatible with automated surface-mount and through-hole reflow manufacturing processes. Ideal for use in industrial controls, servo drives, PLCs, instrumentation, and building automation applications.
